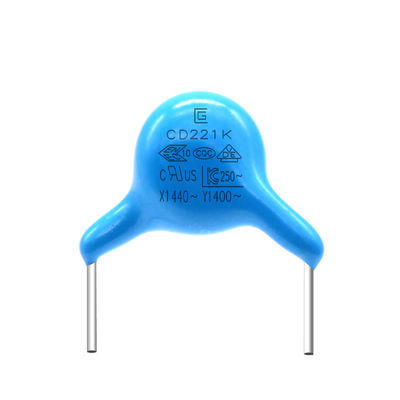

High Voltage Small Blue Capacitor 221K For AC Line Filters

Large Image : High Voltage Small Blue Capacitor 221K For AC Line Filters

Product Details:

Place of Origin:	DongGuan China
Brand Name:	SG
Certification:	VDE，CQC
Model Number:	Y5P-221K-400VAC

Payment & Shipping Terms:

Minimum Order Quantity:	10000 Pieces
Price:	Discuss
Packaging Details:	size:45cm31cm34cm,inner box:29.2cm21cm31.3cm,a carton inside two inner boxs
Delivery Time:	15-21 work days
Payment Terms:	T/T
Supply Ability:	100000000 Pieces

Contact Now

High Voltage Small Blue Capacitor 221K For AC Line Filters

Description

Storage Temp. Range:	-40℃~+125℃	Operating Temp. Range:	-25℃~+125℃
Main Material:	Ceramic	Supplier Type:	Original Manufacturer
Customize:	Yes , Provide Sample Services	Package Type:	Through Hole
Highlight:	Small Blue Capacitor 221K , High Voltage Small Blue Capacitor , 221K Capacitor

Small Size 220K 400VAC Y1 Safety Capacitor Use High-Voltage Ceramics

Y1 Safety Capacitor .pdf

Applications

Ideal for use as X/Y capacitors for AC line filters and primary-secondary coupling on switching power supplies and AC adapters.
Do not use these products in any automotive power train or safety equipment including battery chargers for electric vehicles and plug-in hybrids.

Feature

1. Small size.
2. AC capacitors that have passed and complied with safety certification.
3. The high-frequency loss is small, and it can withstand the impact of AC peak surges.
4. Strong over-current capability, small capacity and loss attenuation.
5. Long service life.
6. The rated voltage of Y1 is 400-500VAC, and the experimental voltage is 4000VAC.
7. Y capacitors often use high-voltage ceramics.
8. Y1 is a double-insulated Y capacitor, which is used to bridge the primary and secondary sides.
9. Flame-retardant epoxy resin package.
10. X capacitors and Y capacitors are collectively referred to as safety capacitors. Safety capacitors are used in such occasions, that is, after the capacitor fails, it will not cause electric shock and will not endanger personal safety.

Advantages

1.We have all models of material, save you time looking for it.And recommend materials for you if you need.
2.With the same quality products,we can give you best price. Inquiries to after-sale, we will provide good service,such as update product status, technical support etc.(24 hour online)
3.We have many stocks, and the delivery time usually is short.

ITEM

SPECIFICATION

TEST METHOD AND CONDITION

Temp Cycling

Appearance

No marked defect

The capacitor shall be introduced into the test chamber, and shall be exposed to the temperature conditions as shown in table at 5 cycles.

pretreatment: The capacitor shall be placed at 125±2℃ for 1 hour, then placed at room condition for 24±2hours before initial measurement.

Post-treatment: Capacitor shall be stored for 24±2 hours at room conditions.

(STEP)	1	2	3	4
(TEMP.)	-25±3℃	20±2℃	125±3℃	20±2℃
(TIME)	30±3min.	3min. max	30±3min.	3min. max

Capacitance

Change

B:±10% max

E:±20% max

F:±30% max

D.F.

B,E:5.0% max

F:7.0% max

I.R.

1000MΩ min

Humidity

(Under

Steady

State)

Appearance

No marked

defect

Set the capacitor for 500±12 hours at 40±2℃ in 95±3% RH.

pre-treatment: The capacitor shall be placed at 125±2℃ for 1 hour, then placed at room condition for 24±2 hours before initial measurement.

Post-treatment: The capacitor shall be stored for 24±2 hours at room condition.

Capacitance

Change

B:±10% max

E:±20% max

F:±30% max

D.F.

B,E:5.0% max

F:7.0% max

I.R.

1500MΩ min

Dielectric

Strength

Per Item 8

Life Test

Appearance

No marked

defect

Apply a voltage of 500V.AC,except that once each hour the voltage is increased to 1000V.AC for 0.1sec.that shall be maintained for 1000±48 hours at 125±2℃.

Pre-treatment: Capacitor shall be stored at 125±2℃ for 1 hour, then placed at room condition for 24±2H before initial measurements.

Post-treatment: Capacitor shall be stored for 24±2 hours at room condition.

Capacitance

Change

B:±10% max

E:±20% max

F:±30% max

D.F.

B,E:5.0% max

F:7.0% max

I.R.

1500MΩ min

Product Voltage, Material, Size reference Table

Product and size code	Rated AC Voltage	Temperature Characteristic	Rated Capacitance	Tolerance of Capacitance	Size (mm)
Product and size code	Rated AC Voltage	Temperature Characteristic	Rated Capacitance	Tolerance of Capacitance	D.max	T.max	P±0.8	d±0.05
Q065B□□100K□	400Vac	(B) Y5P ±10	10pF	K ±10%	6.5	4.5	10	0.55
Q065B□□150K□			15pF		6.5	4.5	10	0.55
Q070B□□220K□			22pF		7.0	4.5	10	0.55
Q070B□□330K□			33pF		7.0	4.5	10	0.55
Q070B□□470K□			47pF		7.0	4.5	10	0.55
Q070B□□560K□			56pF		7.0	4.5	10	0.55
Q070B□□620K□			62pF		7.0	4.5	10	0.55
Q070B□□820K□			82pF		7.0	4.5	10	0.55
Q065B□□101K□			100pF		6.5	4.5	10	0.55
Q065B□□221K□			220pF		6.5	4.5	10	0.55
Q075B□□331K□			330pF		7.5	4.5	10	0.6
Q085B□□471K□			470pF		8.5	4.5	10	0.6
Q085B□□561K□			560pF		8.5	4.5	10	0.6
Q095B□□681K□			680pF		9.5	4.5	10	0.6
Q110B□□821K□			820pF		11.0	4.5	10	0.6
Q115B□□102K□			1000pF		11.5	4.5	10	0.6
Q065E□□471K□		(E) Y5U +22% -56%	470pF		6.5	4.5	10	0.55
Q075E□□561K□			560pF		7.5	4.5	10	0.6
Q075E□□681K□			680pF		7.5	4.5	10	0.6
Q075E□□821K□			820pF		7.5	4.5	10	0.6
Q085E□□102K□			1000pF		8.5	4.5	10	0.65
Q095E□□152M□			1500pF	M ±20%	9.5	4.5	10	0.65
Q105E□□222M□			2200pF		10.5	4.5	10	0.65
Q115E□□332M□			3300pF		11.5	4.5	10	0.65
Q065F□□102M□		(F) Y5V +22% -82%	1000pF		6.5	4.5	10	0.55
Q075F□□152M□			1500pF		7.5	4.5	10	0.6
Q085F□□222M□			2200pF		8.5	4.5	10	0.6
Q100F□□332M□			3300pF		10.0	4.5	10	0.65
Q115F□□472M□			4700pF		11.5	4.5	10	0.65

High Voltage Small Blue Capacitor 221K For AC Line Filters 0
Specification and Test Method

ITEM

SPECIFICATION

TEST METHOD AND CONDITION

Storage Temp. Range

-40℃~+125℃

Operating Temp. Range

-25℃~+125℃

Appearance and
Dimension

Appearance has
no marked defect.
Dimensions shall be within specified tolerance.

Appearance be watched on sight
Dimension be measured by caliper

Mark

Should be discerned easily.

Be watched on sight

Capacitance

Within specified
tolerance

Temp. 20±2℃
Vol. 1.0±0.2Vrms
Freq. 1±0.1KHz

Dissipation Factor

B,E:2.5% max
F:3.5% max

Same condition as capacitance

Insulation Resistance

10,000MΩ
10,000MΩmin

The insulation Resistance shall be measured with 500±50V.DC within 60±5 sec of charging.

Dielectric Strength

Between
Lead Wires

No failure.

Apply a voltage of 4.0KVAC for 1 min. between the lead wires.
(Charge/discharge current≤50mA) (Y2:2.6KVAC)

Body
Insulation

No failure.

The terminals of the capacitor shall be
connected together. A metal foil shall be closely wrapped around the body of the capacitor to the distance of about 3 - 4 mm from each terminal. A Voltage of 4.0KVAC is applied between the capacitor lead wires and metal foil. (Y2:2.6KVAC)
(Charge/discharge current ≤50mA)

Temperature
Characteristic

B:-10~+10%
E:-56~+22%
F:-80~+30%

The capacitance shall be measured at each step as following.
Pre-treatment: Capacitor shall be stored at 85±2℃ for 1 hour, then placed at room condition for 24±2hours before initial measurements.

(Step)	①	②	③	④	⑤
(Temp.)	20±2℃	-25±2℃	20±2℃	85±2℃	20±2℃

High Voltage Small Blue Capacitor 221K For AC Line Filters 1
Production Process
