Product Details:
|
| Model:: | Y1 Safety Capacitor | Voltage：: | 4000V |
|---|---|---|---|
| Temperature:: | +22/-56% | Vibration Resistance:: | 10Hz To 55Hz |
| Humidity:: | 90-95% | Insulation Resistance:: | >3000MΩ |
| Highlight: | CQC Ceramic Capacitor Types,4000V Capacitor |
||

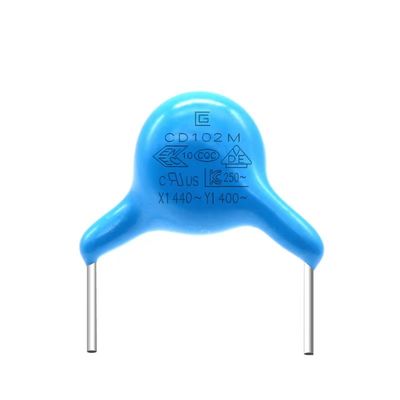

4000V Y1 Safety Capacitor, High Temperature Resistance And Flame Retardant
product description
Y capacitors are capacitors that are respectively connected between the two lines of the power line and the ground (L-E, N-E), generally in pairs. Based on the limitation of leakage current, the value of Y capacitor should not be too large. Generally, the X capacitor is of uF level, and the Y capacitor is of nF level. The X capacitor suppresses differential mode interference, and the Y capacitor suppresses common mode interference.
Product application range
Widely used in high frequency, DC, AC and pulsating circuits, electronic ballasts, switch mode power supplies, suitable for various high frequency, high current occasions, etc.
Features
Stable and safe choice
compact size
economical product
Compliance with safety certification
| Material properties | Y5P/Y5U/Y5V |
| Test voltage | 4000V |
| temperature range | -25~125° |
| Product outer diameter | 6.00mm-11.00mm |
| loss angle |
B(Y5P), E(Y5U),F(Y5V):D.F.≤2.5% |
| Relative humidity |
45-75% |
| air pressure |
86-106Kpa |
| product name | Y1 Ceramic Capacitor |
