Product Details:
|
| Voltage - Rated: | 250V | Capacitance Range: | 0.001mf~3.3uf |
|---|---|---|---|
| Impedance: | Very Low | Applications: | A Various Of AC And DC Pulse Larger Circuit. |
| Current - Leakage: | Very Low | Package Type: | Through Hole |
| Highlight: | Metalized Polypropylene Film Capacitor 1uf,250V Metalized Polypropylene Film Capacitor |
||

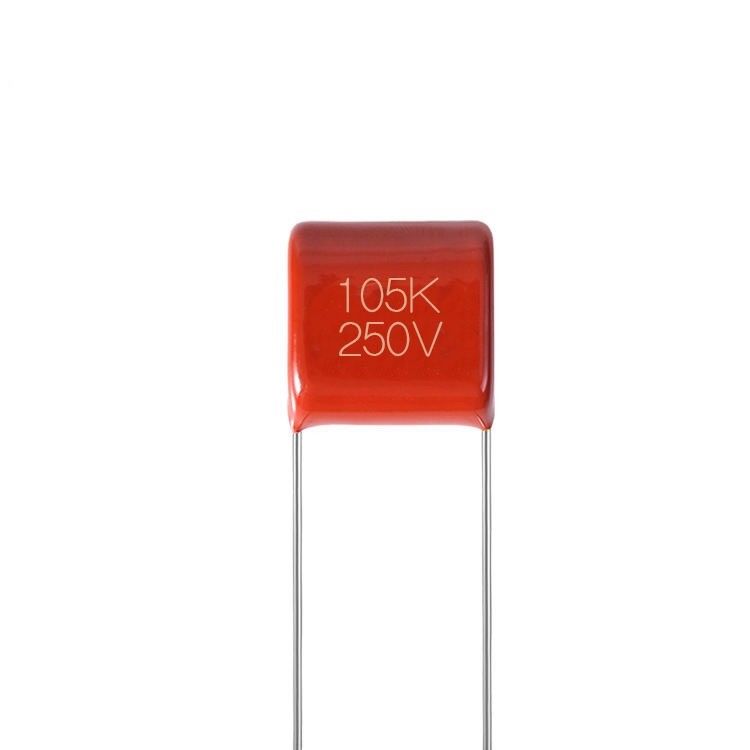

Metalized Polypropylene Film Capacitor 1uf Good Stability And Reliability , High Insulation Resistance
High quality super polypropylene film ,non-inductive,epoxy resin coating
Very low dissipation,suitable for high frequency application
Negative temperature coefficient
Good stability and reliability, high insulation resistance
Specification:
| Climatic Category | 55/085/21 |
| Rated Voltage | 160v 250v 400v 630V |
| Capacitance Range | 0.0010uf~3.3uf |
| Voltage Proof | 1.6 UR |
| Insulation Resistance | ≥15000MΩ, CR≤0.33μF |
| ≥5000S, CR>0.33μF | |
| (20℃, 1min) | |
| Disspation Factor | ≤0.0008(20℃, 1kHz) |
| Capacitance Tolerance | ±5%(J), ±10%(K) |
