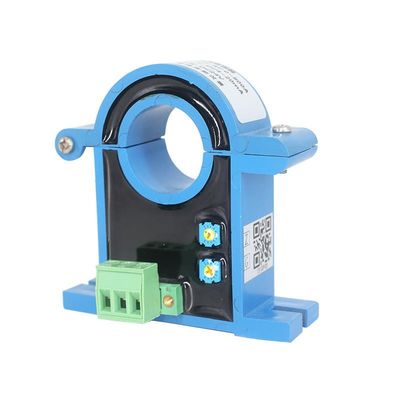

40-60HZ Split Core Hall Effect Sensor , Miniature Clamp On DC Current Sensor

Large Image : 40-60HZ Split Core Hall Effect Sensor , Miniature Clamp On DC Current Sensor

Product Details:

Place of Origin:	Dongguan China
Brand Name:	SG
Certification:	VDE，CQC
Model Number:	current sensor

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiate
Price:	Negotiate
Packaging Details:	Export package
Delivery Time:	Negotiate
Payment Terms:	T/T, L/C
Supply Ability:	50000000pcs per month

Contact Now

40-60HZ Split Core Hall Effect Sensor , Miniature Clamp On DC Current Sensor

Description

Theory:	Split Core Hall Effect Current Sensor	Input Signal:	AC/DC -5A;0-10A;100A,etcCustomizable
Frequency:	40-60HZ	Sample:	Available
Fuse Type:	Fuse Holder Types	Keyword:	Current Sensor
Working Temperature:	-20-70℃	Power Supply::	DC24V,DC12V,AC220V
Highlight:	60HZ Split Core Hall Effect Sensor , Miniature Clamp On DC Current Sensor

Split Core Hall Effect Sensor Miniature Clamp On DC Current Sensor

<1>. Working Principle: Open loop direct measurement.
<2>. Product Usage: Used for measuring DC, AC, pulse current and other arbitrary waveform current.
<3>. Product Advantages: Better cost performance, low power consumption, small volume, light weight, easy installation,
perforation input and no insertion loss.
<4>. Product Application: Frequency conversion speed control system, electric welding machine, electrochemistry, power supply monitoring, electric locomotive, low level starting protection.
<5>. The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.

Installation	Standard rail+Plane screw fixation
Original side rated current	50A;100A;200A;500A; 800A;1000A;customization
Original side measurement range	100A-1200A
Rated output	5V;DC0~20mA;DC4~20mA;customization
Auxiliary power supply	DC12V,DC24V,DC±12V,DC±15V
Load capacity	Voltage output:5mA; Current output:6V;
Linearity	0.005
Accuracy	0.01
Response time	<200ms
Temperature drift	≤500PPM/℃
Band width	DC~20KHz
Consumption of current	≤25mA
Working temperature	-10℃~+70℃
Storage temperature	-25℃~+85℃
Isolation pressure resistance	2.5kV/50Hz,1Min
Offset voltage	≤20mvV
Zero output	≤0.15mA
di/dt follow	>50A/uS

40-60HZ Split Core Hall Effect Sensor , Miniature Clamp On DC Current Sensor 0

FAQ

1.How long will you give me the reply?
we will contact you in 2 hours as soon as we can.

2. Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.
3.:How about the quality of the magnets?

We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.

4.How is the price?
As we believe the quality is the most important,we will provide the best quality signal isolator we can with reasonable price.
