Product Details:
|
| Keyword: | MMKP82 Capacitor | Model Number: | MMKP82 |
|---|---|---|---|
| Rated Voltage: | 250V, 400V, 630V, 1000V, 1600V, 2000V | Capacitance Range: | 155k,1.5uf,1500nf |
| Application: | General Purpose | Printing: | Oil Printing / Laser Printing |
| Quality: | 100% Test | ||
| Highlight: | 233J1600V MMKP82 Capacitor,Double Sided MMKP82 Capacitor,Metallised Polypropylene Capacitors |
||

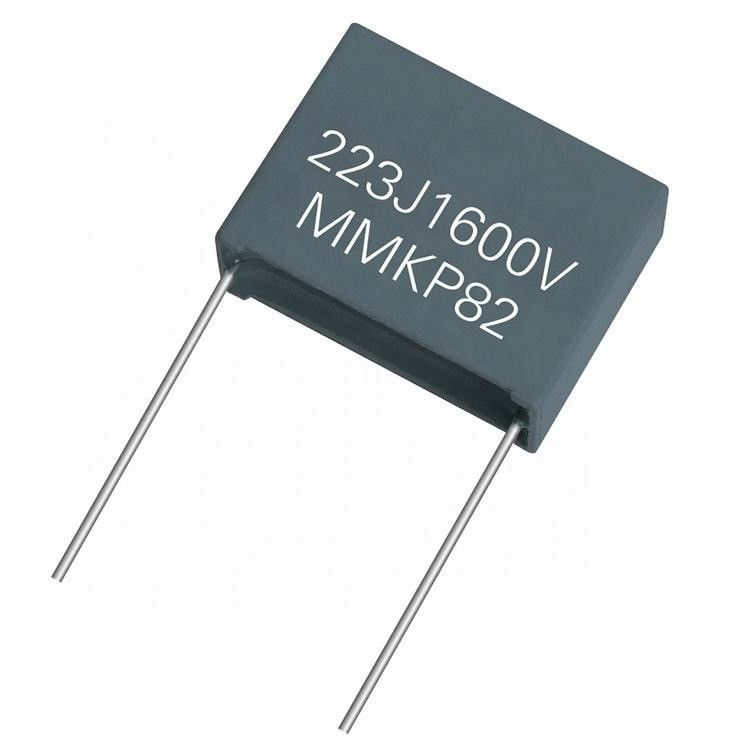

233J1600V MMKP82 Capacitor Doublesided Meatallized Pplypropylene Structure
MMKP82 capacitor:
Double-sided metallized polypropylene film capacitor, which is a kind of resonant capacitor, can withstand high voltage, high frequency, and high current. When the mask machine was popular a few years ago, this kind of capacitor was popular for a while.
The material of MMKP82 capacitor:
It is made of double-sided metal film and aluminum foil. Its volume is smaller than that of CBB81 capacitors, but its functions are basically similar.
Features
Configuration
With polypropylene fime dielectric,pole with double sided metallized polyester film,
twain section spray-metal form Non-inductive configuration,
Electrode lead unilateralism fetch out and fame retardant epoxy resindip sealed.
Main applications
Snubber capacitor for energy conversion and control in power semiconductor circuits, resonant circuits, protection circuits in SMPSs, induction heaters, high voltage, high current and high pulse applications
Specification:
|
Model Number
|
Customized
|
|
Type
|
Super Capacitor
|
|
Place of Origin
|
China
|
|
|
Shanghai
|
|
Brand Name
|
Customized
|
|
D/C
|
Customized
|
|
Supplier Type
|
Other
|
|
Capacitance
|
2.2uF
|
|
Cross Reference
|
Customized
|
|
Media Available
|
datasheet, Photo
|
|
Tolerance
|
±5%(J)±10%(K)
|
|
Package Type
|
Control systems for communication equipment, household appliances
|
|
Rated Voltage
|
250V
|
|
Operating Temperature
|
-40~+70
|
|
Brand
|
capacitor
|
|
Specification
|
2.7V100000F
|
|
Voltage - Rated
|
2.7V
|
|
ESR (Equivalent Series Resistance)
|
0.6mΩ
|
|
Applications
|
energy storage/telecom/solar panel etc
|
|
Impedance
|
< 15mA
|
|
Circuit Type
|
supercapacitor battery
|
|
Temperature Coefficient
|
-40~+70
|
|
Current - Leakage
|
< 15mA
|
|
Voltage - Breakdown
|
10V
|
|
Capacitance Range
|
100000F
|
|
Application
|
General Purpose
|
|
Product name
|
Ceramic Capcitor
|
|
Capacitance
|
100uF
|
|
Certificate
|
ROHS
|
|
Material
|
PVC
|
|
Color
|
Black
|
|
D/C
|
Newest
|
Outline Drawing:
FAQ
Q;Materials of products?
A;A metallized film for A + grade capacitors. Besides we accept customization
Q;Samples are free?
A:yes!
Q;Quality Control?
A;Quality is first,We has passed ISO9001and ROHS REACH certification,As an important part of quality management, quality control is the key to proving the effectiveness of quality certification.
