Product Details:
|
| Type: | Car Battery Supercapacitor | Applications: | Consumer Electronics, Wind Turbine,,smart Grid |
|---|---|---|---|
| ODM OEM: | YES | Operating Temperature: | -20℃~85℃ |
| Sample: | Available | Specification: | Standard |
| Package Type: | Through Hole | Rated Voltage: | 2.7V |
| Highlight: | Car Battery Super Capacitor,Super Capacitor 2.7 V 3000f,supercapacitor 3000f 2.7 v |
||

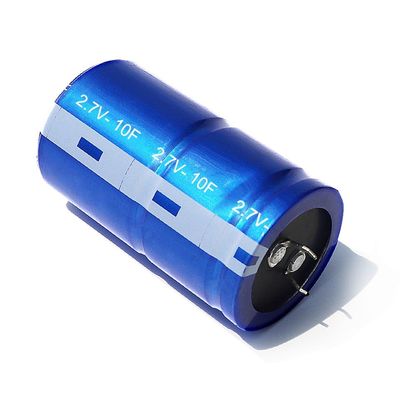

Motorike Car Battery Super High Capacitance Custom 10F 2.7V 3000F Super Capacitor
The exact details of supercapacitor construction depend on the application and use of the supercapacitor. These materials may vary slightly due to manufacturer or specific application needs. The commonality of all supercapacitors is that they all contain a positive electrode, a negative electrode, and a diaphragm between the two electrodes. The electrolyte fills the two pores separated by the two electrodes and the diaphragm.
The structure of the supercapacitor. It is composed of porous electrode material with high specific surface area, current collector, porous battery separator and electrolyte. The electrode material and the current collector should be closely connected to reduce the contact resistance; the separator should meet the conditions of having the highest possible ionic conductivity and the lowest possible electronic conductivity, generally an electronic insulating material with a fiber structure, such as polypropylene film . The type of electrolyte is selected according to the nature of the electrode material.
Advantage:
1. Long Life- our super capacitors can do 110,000 times or even more.
2. Safe- Until now we didn't have find one explode accident.
3. Fast Charge & High Efficiency- Our capacitor can be recharged full in 5-10 minutes
4. Wide Temperature- Our capacitor temperature range can do from -40 degree to +70 degree
5. Lower Self Discharge Than Lithim Battery
6. Simple Pack Circuits
7. Smaller Size
8. Lighter Weight
Application:
Heavy industry equipment
Vehicle system
Fan pitch system
hybrid car
Rail
UPS and telecommunication systems
High impact and vibration environment
Shipment
1.We can ship the products all the world.
2.DHL, FedEx, TNT, UPS, EMS, China Post, Hongkong Post are all available.
3.The item will be sent out with 1-3days after receiving the payment.
4.Please make sure your delivanery address d contact telephone number are correct when you bid the item.
5.You can track the situation of your product on website after they are shipped out.
| model | Rated voltage | Nominal capacity | Internal resistance | Size(mm) |
| (V) | (F) | (mΩ @1kHz) | ||
| 1F/2.7V | 2.7 | 1 | ≤400 | 8*13.3 |
| 2F/2.7V | 2.7 | 2 | ≤300 | 8*20.2 |
| 3F/2.7V | 2.7 | 3 | ≤220 | 8*20.2 |
| 3.3F/2.7V | 2.7 | 3.3 | ≤220 | 8*20.2 |
| 4.7F/2.7V | 2.7 | 4.7 | ≤200 | 10*20.2 |
| 6F/2.7V | 2.7 | 6 | ≤120 | 10*20.2 |
| 6.8F/2.7V | 2.7 | 6.8 | ≤100 | 12.5*21 |
| 8F/2.7V | 2.7 | 8 | ≤90 | 12.5*21 |
| 10F/2.7V | 2.7 | 10 | ≤70 | 10*25.2 |
| 10F/2.7V | 2.7 | 10 | ≤70 | 10*30.2 |
| 10F/2.7V | 2.7 | 10 | ≤70 | 12.5*26.1 |
| 15F/2.7V | 2.7 | 15 | ≤50 | 12.5*30.7 |
| 15F/2.7V | 2.7 | 15 | ≤50 | 16*26.3 |
| 30F/2.7V | 2.7 | 30 | ≤30 | 16*32 |
| 40F/2.7V | 2.7 | 40 | ≤30 | 18*41.3 |
| 50F/2.7V | 2.7 | 50 | ≤25 | 18*41.3 |
| 90F/2.7V | 2.7 | 90 | ≤18 | 22*44.4 |
| 100F/2.7V | 2.7 | 100 | ≤16 | 22*49.5 |
| 120F/2.7V | 2.7 | 120 | ≤15 | 25*44.6 |
| 150F/2.7V | 2.7 | 150 | ≤14 | 25*49.5 |
| 200F/2.7V | 2.7 | 200 | ≤12 | 25*59.6 |
| 300F/2.7V | 2.7 | 300 | ≤10 | 35*54.6 |
| 400F/2.7V | 2.7 | 400 | ≤7 | 35*69.9 |
Supercapacitor should be a general term for capacitors with extremely high energy storage density and fast discharge performance. The supercapacitors produced by our factory have super power, super high current, super wide working range, super high safety, super long life, etc. The characteristics of energy storage and the combined use with other energy storage products have become mainstream.
