Product Details:
|
| Keyword: | 10k NTC Thermistor | Application: | Household Air Conditioner, Refrigerator |
|---|---|---|---|
| Output: | Digital, Digital Sensor | Customize: | Provide Sample Services |
| Sample: | Support | Accuracy: | 1%~5% |
| Description: | Temperature Transmitter Extension Cable | Usage: | Household Air Conditioner, Refrigerator |
| Highlight: | Refrigerator NTC Temperature Sensor,NTC Temperature Sensor Probe,a10k NTC Thermistor |
||

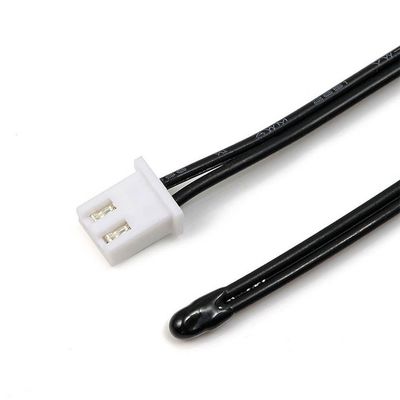

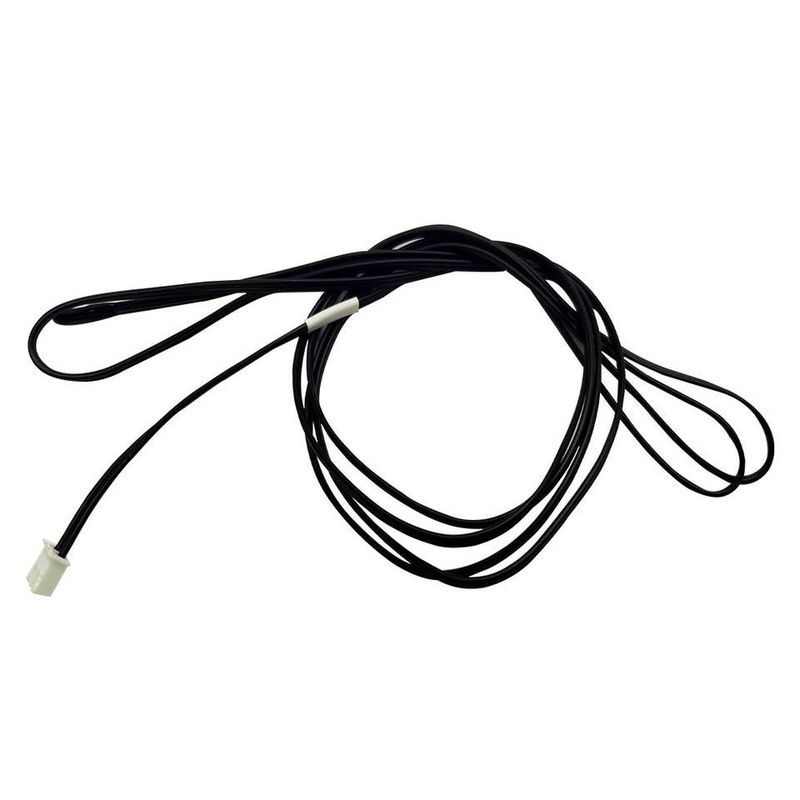

5k 10k NTC Thermistor Temperature Sensor Probe High Sensitivity Fast Response
Specification:
Applications of M8 Screw NTC Temperature Sensor
1. Heater, Warmer, Automobile air conditioners, Refrigerators, Freezers,
2. Water heaters, Gas boiler, Electric kettles, Wall-hung gas boiler, Water dispensers,
3. Toaster, Microwave oven, Air dryer, Roasting pan, Induction cooker, Electric hot plate,
4. Iron, Garment steamer, Hair straighten, Coffee maker, Coffee pot,
6. Rice cooker, Incubator temperature control, Egg boiler, etc.
Details of Thread Probe NTC Temperature Sensor
WATER-PROOF
Waterproof Stainless steel sheath
NO EXTERNAL COMPONENTS
Unique 1-wire interface requires only one port pin for communication.
UNIQL JE STORAGE METHOD
Each device has a unique 64 bit serial code stored in an onboard ROM.
|
Type
|
NTC(thermistor) Temperature Sensor
|
|
Temperature range
|
-50℃ ~ +300℃；Customized
|
|
Accurancy
|
1%；5%；10%
|
|
RT(25℃)
|
1K；2K；2.2k；2.7k；3K；5K；7K；8K；12K；15K；20K；25K；30K；40K；47K；50K；60K；70K；100K；200K；230K；250K；470K；500K；1000K；Customized
|
|
B value
|
3274；3435；3470；3928；3950；3977；4100；4200；4400；Customized
|
|
Probe Material
|
Stainless steel SS304； aluminum；copper；plastic；epoxy；glass
|
|
Installation
|
Flanged；Surface；Threaded；Plastic；Straight；Film；Customized
|
|
Wire Material
|
Heat shrinkable tube；PVC tube；glass fiber tube； teflon tube
|
|
Connector
|
Molex；JST；DuPont；CWB；CJT；U type；Customized
|
|
Waterproof
|
IP67；IP68
|
Reliability Test
| Test Item | Test Standard | Test method | Performance requirements |
| Zero Power Resistance | IEC 60539-1 | Immerse samples in the constant temperature bath at 25℃±0.005℃,test steady resistance |
Resistance tol ±1% |
| B value | IEC60539-1 | Immerse samples in the constant temperature bath at 25℃,50℃(or 85℃), test steady resistance,and calculate B value |
Resistance tol ±1% |
| Free fall |
IEC60068-2-32 |
Fall height: 1.5±0.1m,Surface: Cement , 1 time |
No obvious damage, R25 △R/R≤±1% |
| Insulation |
IEC60539-1 |
500V pressure on insulation shell test insulation resistance |
>500MOhm |
| Withstand voltage | IEC60539-1 |
Withstand voltage: 1500V/AC ,Leakage current:2mA Lasting: 60sec |
No obvious damage |
| Tension | IEC60068-2-21 |
Pull uniform speed at the end, F>4.0KG(requested by customer) |
No obvious damage, R25 △R/R≤±1% |
| Vibration | Q/HBm 108-94 | Test frequency: 10~500Hz,swing: 1.2mm acceleration: 30m/s2 Direction X,Y,Z Time:8Hour/direction |
No obvious damage, R25 △R/R≤±1% |
| Steady humidity and heat | IEC60068-2-78 | Temp:40±2℃ Humidity:92-95%RH Time:1000±24Hour |
No obvious damage, R25 △R/R≤±1% |
| Thermal time constant | EC60539-1 | Immerse in 25℃ water,after thermal balance,immerse in 85℃,resistance arrives 63.2%,calculate total time |
<10 sec |
| High temperature storage | IEC60068-2-2 | Temp:125℃±5℃ Time: 1000±24Hour | No obvious damage, R25 △R/R≤±1% |
| Cold and thermal shock | IEC60068-2-14 |
-40℃~+125℃ T1:30min Cycle time:1000 |
No obvious damage, R25 △R/R≤±1% |
| Knock experiment | IEC60068-2-77 |
Acceleration:250m/s2 Pulse lasting: 6ms Knock times: 1000 Recovery time: 2 Hour |
No obvious damage, R25 △R/R≤±1% |
| Low temperature storage | IEC60068-2-1 |
Temp: 40±2℃ Time: 1000±24Hour |
No obvious damage, R25 △R/R≤±1% |
| Salt spray | IEC60068-2-11 | Temp: 35±2℃ Collection hour : 1.0mL~2.0mL Time: determine per as actual demand |
No obvious damage, R25 △R/R≤±1% |
