ODM 400VAC Y1 Safety Capacitor 100K Small Size For Electronic Equipment

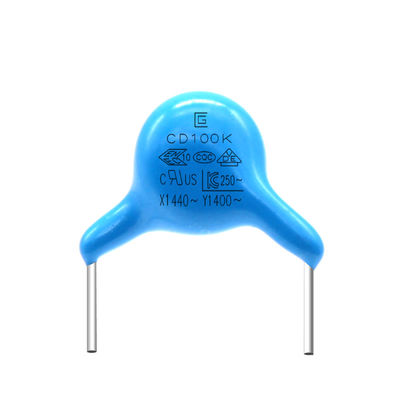

Large Image : ODM 400VAC Y1 Safety Capacitor 100K Small Size For Electronic Equipment

Product Details:

Place of Origin:	DongGuan China
Brand Name:	SG
Certification:	VDE，CQC
Model Number:	Y5P-100K-400VAC

Payment & Shipping Terms:

Minimum Order Quantity:	10000 Pieces
Price:	Discuss
Packaging Details:	size:45cm31cm34cm,inner box:29.2cm21cm31.3cm,a carton inside two inner boxs
Delivery Time:	15-21 work days
Payment Terms:	T/T
Supply Ability:	100000000 Pieces

Contact Now

ODM 400VAC Y1 Safety Capacitor 100K Small Size For Electronic Equipment

Description

Storage Temp. Range:	-40℃~+125℃	Operating Temp. Range:	-25℃~+125℃
Main Material:	SrCO3 BaCO3 TiO2 Bi2O3 CaCO3 Nb2O5 MgO	Application:	Electronic Equipment
Supplier Type:	Original Manufacturer, ODM	Type:	Y1 Safety Capacitor
Highlight:	Y1 Safety Capacitor 100K , Y1 Safety Capacitor ODM , 100K Capacitor

100K 400VAC Y1 Safety Capacitor Small Size Flame-Retardant Epoxy Resin Package
Y1 Safety Capacitor .pdf
Y1 capacitors are capacitors connected across the two wires of the power line and the ground (L-E, N-E), usually in pairs. Based on the limitation of the leakage current, the value of the Y capacitor should not be too large. Generally, the X capacitor is uF level, and the Y capacitor is nF level. The X capacitor suppresses differential mode interference, and the Y1 capacitor suppresses common mode interference.
Features
Stable and safe choice
compact size
economical product
Compliance with safety certification
Product Voltage, Material, Size reference Table

Product and size code	Rated AC Voltage	Temperature Characteristic	Rated Capacitance	Tolerance of Capacitance	Size (mm)
Product and size code	Rated AC Voltage	Temperature Characteristic	Rated Capacitance	Tolerance of Capacitance	D.max	T.max	P±0.8	d±0.05
Q065B□□100K□	400Vac	(B) Y5P ±10	10pF	K ±10%	6.5	4.5	10	0.55
Q065B□□150K□			15pF		6.5	4.5	10	0.55
Q070B□□220K□			22pF		7.0	4.5	10	0.55
Q070B□□330K□			33pF		7.0	4.5	10	0.55
Q070B□□470K□			47pF		7.0	4.5	10	0.55
Q070B□□560K□			56pF		7.0	4.5	10	0.55
Q070B□□620K□			62pF		7.0	4.5	10	0.55
Q070B□□820K□			82pF		7.0	4.5	10	0.55
Q065B□□101K□			100pF		6.5	4.5	10	0.55
Q065B□□221K□			220pF		6.5	4.5	10	0.55
Q075B□□331K□			330pF		7.5	4.5	10	0.6
Q085B□□471K□			470pF		8.5	4.5	10	0.6
Q085B□□561K□			560pF		8.5	4.5	10	0.6
Q095B□□681K□			680pF		9.5	4.5	10	0.6
Q110B□□821K□			820pF		11.0	4.5	10	0.6
Q115B□□102K□			1000pF		11.5	4.5	10	0.6
Q065E□□471K□		(E) Y5U +22% -56%	470pF		6.5	4.5	10	0.55
Q075E□□561K□			560pF		7.5	4.5	10	0.6
Q075E□□681K□			680pF		7.5	4.5	10	0.6
Q075E□□821K□			820pF		7.5	4.5	10	0.6
Q085E□□102K□			1000pF		8.5	4.5	10	0.65
Q095E□□152M□			1500pF	M ±20%	9.5	4.5	10	0.65
Q105E□□222M□			2200pF		10.5	4.5	10	0.65
Q115E□□332M□			3300pF		11.5	4.5	10	0.65
Q065F□□102M□		(F) Y5V +22% -82%	1000pF		6.5	4.5	10	0.55
Q075F□□152M□			1500pF		7.5	4.5	10	0.6
Q085F□□222M□			2200pF		8.5	4.5	10	0.6
Q100F□□332M□			3300pF		10.0	4.5	10	0.65
Q115F□□472M□			4700pF		11.5	4.5	10	0.65

Specification and Test Method

ITEM

SPECIFICATION

TEST METHOD AND CONDITION

Storage Temp. Range

-40℃~+125℃

Operating Temp. Range

-25℃~+125℃

Appearance and
Dimension

Appearance has
no marked defect.
Dimensions shall be within specified tolerance.

Appearance be watched on sight
Dimension be measured by caliper

Mark

Should be discerned easily.

Be watched on sight

Capacitance

Within specified
tolerance

Temp. 20±2℃
Vol. 1.0±0.2Vrms
Freq. 1±0.1KHz

Dissipation Factor

B,E:2.5% max
F:3.5% max

Same condition as capacitance

Insulation Resistance

10,000MΩ
10,000MΩmin

The insulation Resistance shall be measured with 500±50V.DC within 60±5 sec of charging.

Dielectric Strength

Between
Lead Wires

No failure.

Apply a voltage of 4.0KVAC for 1 min. between the lead wires.
(Charge/discharge current≤50mA) (Y2:2.6KVAC)

Body
Insulation

No failure.

The terminals of the capacitor shall be
connected together. A metal foil shall be closely wrapped around the body of the capacitor to the distance of about 3 - 4 mm from each terminal. A Voltage of 4.0KVAC is applied between the capacitor lead wires and metal foil. (Y2:2.6KVAC)
(Charge/discharge current ≤50mA)

Temperature
Characteristic

B:-10~+10%
E:-56~+22%
F:-80~+30%

The capacitance shall be measured at each step as following.
Pre-treatment: Capacitor shall be stored at 85±2℃ for 1 hour, then placed at room condition for 24±2hours before initial measurements.

(Step)	①	②	③	④	⑤
(Temp.)	20±2℃	-25±2℃	20±2℃	85±2℃	20±2℃
