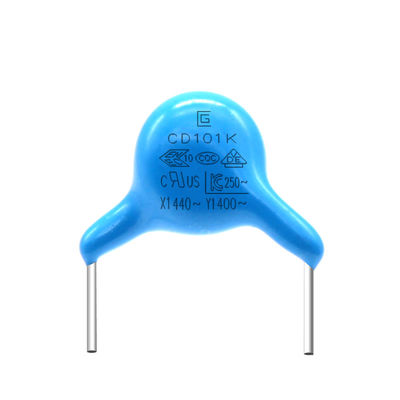

101K 400VAC Y1 Safety Capacitor Long Service Life Flame-Retardant Epoxy Resin Package

Y1 Safety Capacitor .pdf

Y1 capacitors are capacitors connected across the two wires of the power line and the ground (L-E, N-E), usually in pairs. Based on the limitation of the leakage current, the value of the Y capacitor should not be too large. Generally, the X capacitor is uF level, and the Y capacitor is nF level. The X capacitor suppresses differential mode interference, and the Y1 capacitor suppresses common mode interference.

Features

Stable and safe choice
compact size
economical product
Compliance with safety certification

ITEM

SPECIFICATION

TEST METHOD AND CONDITION

Temp Cycling

Appearance

No marked defect

The capacitor shall be introduced into the test chamber, and shall be exposed to the temperature conditions as shown in table at 5 cycles.

pretreatment: The capacitor shall be placed at 125±2℃ for 1 hour, then placed at room condition for 24±2hours before initial measurement.

Post-treatment: Capacitor shall be stored for 24±2 hours at room conditions.

(STEP)	1	2	3	4
(TEMP.)	-25±3℃	20±2℃	125±3℃	20±2℃
(TIME)	30±3min.	3min. max	30±3min.	3min. max

Capacitance

Change

B:±10% max

E:±20% max

F:±30% max

D.F.

B,E:5.0% max

F:7.0% max

I.R.

1000MΩ min

Humidity

(Under

Steady

State)

Appearance

No marked

defect

Set the capacitor for 500±12 hours at 40±2℃ in 95±3% RH.

pre-treatment: The capacitor shall be placed at 125±2℃ for 1 hour, then placed at room condition for 24±2 hours before initial measurement.

Post-treatment: The capacitor shall be stored for 24±2 hours at room condition.

Capacitance

Change

B:±10% max

E:±20% max

F:±30% max

D.F.

B,E:5.0% max

F:7.0% max

I.R.

1500MΩ min

Dielectric

Strength

Per Item 8

Life Test

Appearance

No marked

defect

Apply a voltage of 500V.AC,except that once each hour the voltage is increased to 1000V.AC for 0.1sec.that shall be maintained for 1000±48 hours at 125±2℃.

Pre-treatment: Capacitor shall be stored at 125±2℃ for 1 hour, then placed at room condition for 24±2H before initial measurements.

Post-treatment: Capacitor shall be stored for 24±2 hours at room condition.

Capacitance

Change

B:±10% max

E:±20% max

F:±30% max

D.F.

B,E:5.0% max

F:7.0% max

I.R.

1500MΩ min

Product Voltage, Material, Size reference Table

Product and size code	Rated AC Voltage	Temperature Characteristic	Rated Capacitance	Tolerance of Capacitance	Size (mm)
Product and size code	Rated AC Voltage	Temperature Characteristic	Rated Capacitance	Tolerance of Capacitance	D.max	T.max	P±0.8	d±0.05
Q065B□□100K□	400Vac	(B) Y5P ±10	10pF	K ±10%	6.5	4.5	10	0.55
Q065B□□150K□			15pF		6.5	4.5	10	0.55
Q070B□□220K□			22pF		7.0	4.5	10	0.55
Q070B□□330K□			33pF		7.0	4.5	10	0.55
Q070B□□470K□			47pF		7.0	4.5	10	0.55
Q070B□□560K□			56pF		7.0	4.5	10	0.55
Q070B□□620K□			62pF		7.0	4.5	10	0.55
Q070B□□820K□			82pF		7.0	4.5	10	0.55
Q065B□□101K□			100pF		6.5	4.5	10	0.55
Q065B□□221K□			220pF		6.5	4.5	10	0.55
Q075B□□331K□			330pF		7.5	4.5	10	0.6
Q085B□□471K□			470pF		8.5	4.5	10	0.6
Q085B□□561K□			560pF		8.5	4.5	10	0.6
Q095B□□681K□			680pF		9.5	4.5	10	0.6
Q110B□□821K□			820pF		11.0	4.5	10	0.6
Q115B□□102K□			1000pF		11.5	4.5	10	0.6
Q065E□□471K□		(E) Y5U +22% -56%	470pF		6.5	4.5	10	0.55
Q075E□□561K□			560pF		7.5	4.5	10	0.6
Q075E□□681K□			680pF		7.5	4.5	10	0.6
Q075E□□821K□			820pF		7.5	4.5	10	0.6
Q085E□□102K□			1000pF		8.5	4.5	10	0.65
Q095E□□152M□			1500pF	M ±20%	9.5	4.5	10	0.65
Q105E□□222M□			2200pF		10.5	4.5	10	0.65
Q115E□□332M□			3300pF		11.5	4.5	10	0.65
Q065F□□102M□		(F) Y5V +22% -82%	1000pF		6.5	4.5	10	0.55
Q075F□□152M□			1500pF		7.5	4.5	10	0.6
Q085F□□222M□			2200pF		8.5	4.5	10	0.6
Q100F□□332M□			3300pF		10.0	4.5	10	0.65
Q115F□□472M□			4700pF		11.5	4.5	10	0.65
