Product Details:
|
| Storage Temp. Range: | -40℃~+125℃ | Operating Temp. Range: | -25℃~+125℃ |
|---|---|---|---|
| Main Material: | Silver Paste | Application: | Office Equipment,electronic Equipment |
| Supplier Type: | ODM OEM | Type: | Y1 Safety Capacitor |
| Highlight: | Y1 Safety Capacitor High Frequency,Y1 Safety Capacitor 150K,OEM Y1 Safety Capacitor |
||

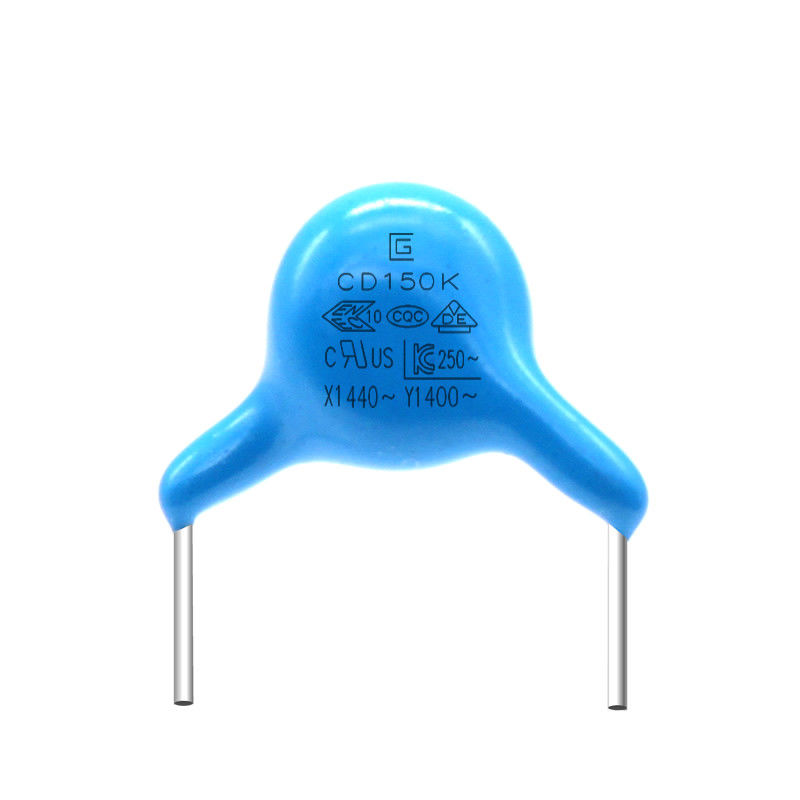

150K 400VAC Y1 Safety Capacitor High-Frequency Loss Is Small Can Withstand The Impact Of AC Peak Surges
Y1 Safety Capacitor .pdf
The Y1 capacitor is a safety capacitor, and such a capacitor will not cause electric shock after the capacitor fails, and will not endanger personal safety. It includes two types of X capacitors and Y capacitors. X capacitors are capacitors connected between the two lines of the power line (L-N), and metal film capacitors are generally used; Y capacitors are connected between the two lines of the power line and the ground (L-E , N-E) capacitance, generally appear in pairs. Based on the limitation of the leakage current, the value of the Y capacitor should not be too large. Generally, the X capacitor is uF level, and the Y capacitor is nF level. The X capacitor suppresses differential mode interference, and the Y capacitor suppresses common mode interference.
The bottom of the Y capacitor is divided into Y1, Y2, Y3, and Y4. The main differences are:
1. Y1 high voltage resistance is greater than 8 kV,
2. Y2 high voltage resistance is greater than 5 kV,
3. Y3 high pressure resistance n/a
4. Y4 high voltage resistance is greater than 2.5 kV
|
ITEM |
SPECIFICATION |
TEST METHOD AND CONDITION |
||||||||||||||||
|
Temp Cycling
|
Appearance |
No marked defect |
The capacitor shall be introduced into the test chamber, and shall be exposed to the temperature conditions as shown in table at 5 cycles. pretreatment: The capacitor shall be placed at 125±2℃ for 1 hour, then placed at room condition for 24±2hours before initial measurement. Post-treatment: Capacitor shall be stored for 24±2 hours at room conditions.
|
|||||||||||||||
|
Capacitance Change |
B:±10% max E:±20% max F:±30% max |
|||||||||||||||||
|
D.F. |
B,E:5.0% max F:7.0% max |
|||||||||||||||||
|
I.R. |
1000MΩ min | |||||||||||||||||
|
Humidity (Under Steady State) |
Appearance |
No marked defect |
Set the capacitor for 500±12 hours at 40±2℃ in 95±3% RH. pre-treatment: The capacitor shall be placed at 125±2℃ for 1 hour, then placed at room condition for 24±2 hours before initial measurement. Post-treatment: The capacitor shall be stored for 24±2 hours at room condition. |
|||||||||||||||
|
Capacitance Change |
B:±10% max E:±20% max F:±30% max |
|||||||||||||||||
|
D.F. |
B,E:5.0% max F:7.0% max |
|||||||||||||||||
|
I.R. |
1500MΩ min | |||||||||||||||||
|
Dielectric Strength |
Per Item 8 |
|||||||||||||||||
|
Life Test |
Appearance |
No marked defect |
Apply a voltage of 500V.AC,except that once each hour the voltage is increased to 1000V.AC for 0.1sec.that shall be maintained for 1000±48 hours at 125±2℃. Pre-treatment: Capacitor shall be stored at 125±2℃ for 1 hour, then placed at room condition for 24±2H before initial measurements. Post-treatment: Capacitor shall be stored for 24±2 hours at room condition. |
|||||||||||||||
|
Capacitance Change |
B:±10% max E:±20% max F:±30% max |
|||||||||||||||||
|
D.F. |
B,E:5.0% max F:7.0% max |
|||||||||||||||||
|
I.R. |
1500MΩ min | |||||||||||||||||
Product Voltage, Material, Size reference Table
| Product and size code | Rated AC Voltage | Temperature Characteristic | Rated Capacitance | Tolerance of Capacitance | Size (mm) | |||
| D.max | T.max | P±0.8 | d±0.05 | |||||
| Q065B□□100K□ | 400Vac |
(B) |
10pF |
K |
6.5 | 4.5 | 10 | 0.55 |
| Q065B□□150K□ | 15pF | 6.5 | 4.5 | 10 | 0.55 | |||
| Q070B□□220K□ | 22pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q070B□□330K□ | 33pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q070B□□470K□ | 47pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q070B□□560K□ | 56pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q070B□□620K□ | 62pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q070B□□820K□ | 82pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q065B□□101K□ | 100pF | 6.5 | 4.5 | 10 | 0.55 | |||
| Q065B□□221K□ | 220pF | 6.5 | 4.5 | 10 | 0.55 | |||
| Q075B□□331K□ | 330pF | 7.5 | 4.5 | 10 | 0.6 | |||
| Q085B□□471K□ | 470pF | 8.5 | 4.5 | 10 | 0.6 | |||
| Q085B□□561K□ | 560pF | 8.5 | 4.5 | 10 | 0.6 | |||
| Q095B□□681K□ | 680pF | 9.5 | 4.5 | 10 | 0.6 | |||
| Q110B□□821K□ | 820pF | 11.0 | 4.5 | 10 | 0.6 | |||
| Q115B□□102K□ | 1000pF | 11.5 | 4.5 | 10 | 0.6 | |||
| Q065E□□471K□ |
(E) |
470pF | 6.5 | 4.5 | 10 | 0.55 | ||
| Q075E□□561K□ | 560pF | 7.5 | 4.5 | 10 | 0.6 | |||
| Q075E□□681K□ | 680pF | 7.5 | 4.5 | 10 | 0.6 | |||
| Q075E□□821K□ | 820pF | 7.5 | 4.5 | 10 | 0.6 | |||
| Q085E□□102K□ | 1000pF | 8.5 | 4.5 | 10 | 0.65 | |||
| Q095E□□152M□ | 1500pF |
M |
9.5 | 4.5 | 10 | 0.65 | ||
| Q105E□□222M□ | 2200pF | 10.5 | 4.5 | 10 | 0.65 | |||
| Q115E□□332M□ | 3300pF | 11.5 | 4.5 | 10 | 0.65 | |||
| Q065F□□102M□ |
(F) |
1000pF | 6.5 | 4.5 | 10 | 0.55 | ||
| Q075F□□152M□ | 1500pF | 7.5 | 4.5 | 10 | 0.6 | |||
| Q085F□□222M□ | 2200pF | 8.5 | 4.5 | 10 | 0.6 | |||
| Q100F□□332M□ | 3300pF | 10.0 | 4.5 | 10 | 0.65 | |||
| 4700pF | 11.5 | 4.5 | 10 | 0.65 | ||||
Specification and Test Method
|
ITEM |
SPECIFICATION |
TEST METHOD AND CONDITION |
|||||||||||||
|
Storage Temp. Range |
-40℃~+125℃ | ||||||||||||||
|
Operating Temp. Range |
-25℃~+125℃ | ||||||||||||||
|
|
Appearance has |
|
|||||||||||||
|
|
|
|
|||||||||||||
|
|
|
Temp. 20±2℃ |
|||||||||||||
|
Dissipation Factor |
B,E:2.5% max |
|
|||||||||||||
|
|
10,000MΩ |
|
|||||||||||||
|
|
|
|
|
||||||||||||
|
|
|
|
|||||||||||||
|
|
B:-10~+10% |
|
|||||||||||||
Production Process
