Product Details:
|
| Storage Temp. Range: | -40℃~+125℃ | Operating Temp. Range: | -25℃~+125℃ |
|---|---|---|---|
| Main Material: | Datasheet | Feature: | Ideal For Across The Line Application |
| Customize: | Yes , Provide Sample Services | Package Type: | Through Hole |
| Application: | For AC Applications, Hight Voltage | Size: | Custom Size |
| Highlight: | Custom Y1 Safety Capacitor,Y1 Safety Capacitor 560K,Custom 400 VAC Capacitor |
||

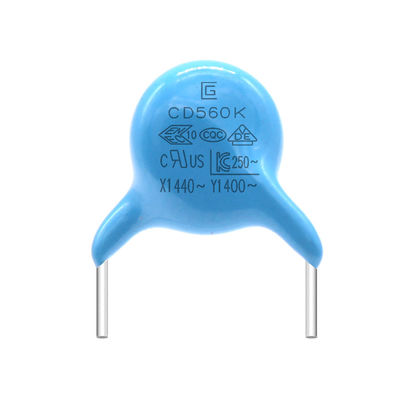

High Withstand Voltag 560K 400VAC Y1 Safety Capacitor AC Capacitors That Have Passed And Complied With Safety
Y1 capacitors are capacitors connected across the two wires of the power line and the ground (L-E, N-E), usually in pairs. Based on the limitation of the leakage current, the value of the Y capacitor should not be too large. Generally, the X capacitor is uF level, and the Y capacitor is nF level. The X capacitor suppresses differential mode interference, and the Y1 capacitor suppresses common mode interference.
Y1 Safety Capacitor .pdf
Features
1 Safety standard recognized for AC applications Compact.
size, Cost effictive product Epoxy resin compliance.
2 Withstanding overvoltage stressing.
3 Excellent active and passive flame resistant abilities.
4 The type safety standard recognized capacitors are idealfor using in line by-pass, Antenna coupling, Acriss the compliance.
Advantages
1.We have all models of material, save you time looking for it.And recommend materials for you if you need.
2.With the same quality products,we can give you best price. Inquiries to after-sale, we will provide good service,such as update product status, technical support etc.(24 hour online)
3.We have many stocks, and the delivery time usually is short.
Application range:
Frequency conversion
frequency division and other AC
large pulse circuits
especially audio frequency divider circuits with high fidelity requirements
|
ITEM |
SPECIFICATION |
TEST METHOD AND CONDITION |
||||||||||||||||
|
Temp Cycling
|
Appearance |
No marked defect |
The capacitor shall be introduced into the test chamber, and shall be exposed to the temperature conditions as shown in table at 5 cycles. pretreatment: The capacitor shall be placed at 125±2℃ for 1 hour, then placed at room condition for 24±2hours before initial measurement. Post-treatment: Capacitor shall be stored for 24±2 hours at room conditions.
|
|||||||||||||||
|
Capacitance Change |
B:±10% max E:±20% max F:±30% max |
|||||||||||||||||
|
D.F. |
B,E:5.0% max F:7.0% max |
|||||||||||||||||
|
I.R. |
1000MΩ min | |||||||||||||||||
|
Humidity (Under Steady State) |
Appearance |
No marked defect |
Set the capacitor for 500±12 hours at 40±2℃ in 95±3% RH. pre-treatment: The capacitor shall be placed at 125±2℃ for 1 hour, then placed at room condition for 24±2 hours before initial measurement. Post-treatment: The capacitor shall be stored for 24±2 hours at room condition. |
|||||||||||||||
|
Capacitance Change |
B:±10% max E:±20% max F:±30% max |
|||||||||||||||||
|
D.F. |
B,E:5.0% max F:7.0% max |
|||||||||||||||||
|
I.R. |
1500MΩ min | |||||||||||||||||
|
Dielectric Strength |
Per Item 8 |
|||||||||||||||||
|
Life Test |
Appearance |
No marked defect |
Apply a voltage of 500V.AC,except that once each hour the voltage is increased to 1000V.AC for 0.1sec.that shall be maintained for 1000±48 hours at 125±2℃. Pre-treatment: Capacitor shall be stored at 125±2℃ for 1 hour, then placed at room condition for 24±2H before initial measurements. Post-treatment: Capacitor shall be stored for 24±2 hours at room condition. |
|||||||||||||||
|
Capacitance Change |
B:±10% max E:±20% max F:±30% max |
|||||||||||||||||
|
D.F. |
B,E:5.0% max F:7.0% max |
|||||||||||||||||
|
I.R. |
1500MΩ min | |||||||||||||||||
Product Voltage, Material, Size reference Table
| Product and size code | Rated AC Voltage | Temperature Characteristic | Rated Capacitance | Tolerance of Capacitance | Size (mm) | |||
| D.max | T.max | P±0.8 | d±0.05 | |||||
| Q065B□□100K□ | 400Vac |
(B) |
10pF |
K |
6.5 | 4.5 | 10 | 0.55 |
| Q065B□□150K□ | 15pF | 6.5 | 4.5 | 10 | 0.55 | |||
| Q070B□□220K□ | 22pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q070B□□330K□ | 33pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q070B□□470K□ | 47pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q070B□□560K□ | 56pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q070B□□620K□ | 62pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q070B□□820K□ | 82pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q065B□□101K□ | 100pF | 6.5 | 4.5 | 10 | 0.55 | |||
| Q065B□□221K□ | 220pF | 6.5 | 4.5 | 10 | 0.55 | |||
| Q075B□□331K□ | 330pF | 7.5 | 4.5 | 10 | 0.6 | |||
| Q085B□□471K□ | 470pF | 8.5 | 4.5 | 10 | 0.6 | |||
| Q085B□□561K□ | 560pF | 8.5 | 4.5 | 10 | 0.6 | |||
| Q095B□□681K□ | 680pF | 9.5 | 4.5 | 10 | 0.6 | |||
| Q110B□□821K□ | 820pF | 11.0 | 4.5 | 10 | 0.6 | |||
| Q115B□□102K□ | 1000pF | 11.5 | 4.5 | 10 | 0.6 | |||
| Q065E□□471K□ |
(E) |
470pF | 6.5 | 4.5 | 10 | 0.55 | ||
| Q075E□□561K□ | 560pF | 7.5 | 4.5 | 10 | 0.6 | |||
| Q075E□□681K□ | 680pF | 7.5 | 4.5 | 10 | 0.6 | |||
| Q075E□□821K□ | 820pF | 7.5 | 4.5 | 10 | 0.6 | |||
| Q085E□□102K□ | 1000pF | 8.5 | 4.5 | 10 | 0.65 | |||
| Q095E□□152M□ | 1500pF |
M |
9.5 | 4.5 | 10 | 0.65 | ||
| Q105E□□222M□ | 2200pF | 10.5 | 4.5 | 10 | 0.65 | |||
| Q115E□□332M□ | 3300pF | 11.5 | 4.5 | 10 | 0.65 | |||
| Q065F□□102M□ |
(F) |
1000pF | 6.5 | 4.5 | 10 | 0.55 | ||
| Q075F□□152M□ | 1500pF | 7.5 | 4.5 | 10 | 0.6 | |||
| Q085F□□222M□ | 2200pF | 8.5 | 4.5 | 10 | 0.6 | |||
| Q100F□□332M□ | 3300pF | 10.0 | 4.5 | 10 | 0.65 | |||
| 4700pF | 11.5 | 4.5 | 10 | 0.65 | ||||
Specification and Test Method
|
ITEM |
SPECIFICATION |
TEST METHOD AND CONDITION |
|||||||||||||
|
Storage Temp. Range |
-40℃~+125℃ | ||||||||||||||
|
Operating Temp. Range |
-25℃~+125℃ | ||||||||||||||
|
|
Appearance has |
|
|||||||||||||
|
|
|
|
|||||||||||||
|
|
|
Temp. 20±2℃ |
|||||||||||||
|
Dissipation Factor |
B,E:2.5% max |
|
|||||||||||||
|
|
10,000MΩ |
|
|||||||||||||
|
|
|
|
|
||||||||||||
|
|
|
|
|||||||||||||
|
|
B:-10~+10% |
|
|||||||||||||
Production Process
