Product Details:
|
| Storage Temp. Range: | -40℃~+125℃ | Operating Temp. Range: | -25℃~+125℃ |
|---|---|---|---|
| Main Material: | Ceramic | Customize:: | Yes , Provide Sample Services |
| Package Type: | Through Hole | Feature: | Ideal For Across The Line Application |
| Application: | Office Equipment,electronic, AC / Motor | Size: | Custom Size |
| Highlight: | 400VAC AC Safety Capacitors,680K Capacitor |
||

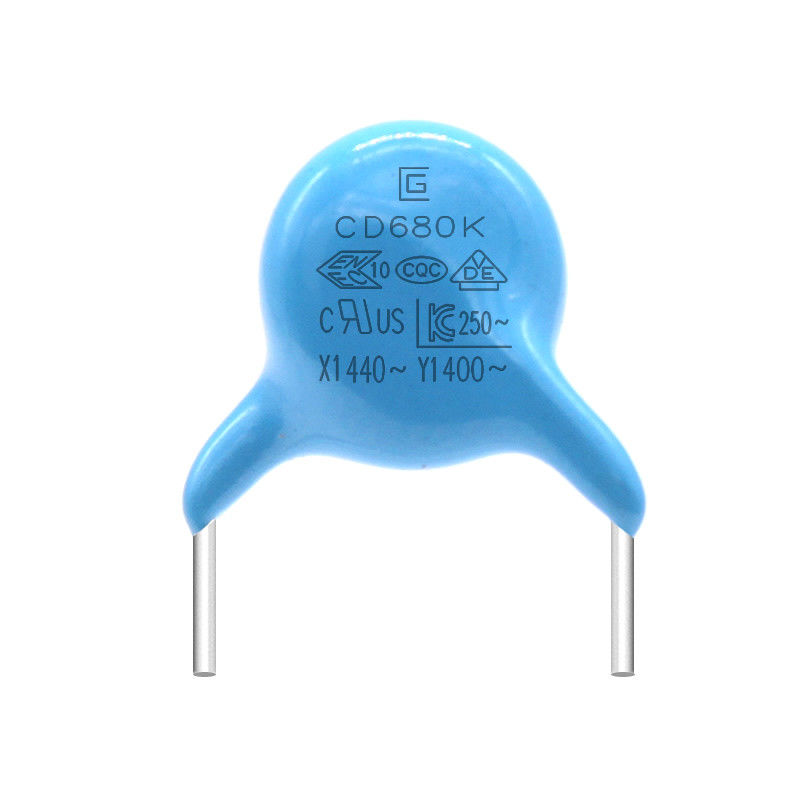

680K 400VAC Y1 Safety Capacitor AC Capacitors That Have Passed And Complied With Safety
Feature
1. Small size.
2. AC capacitors that have passed and complied with safety certification.
3. The high-frequency loss is small, and it can withstand the impact of AC peak surges.
4. Strong over-current capability, small capacity and loss attenuation.
5. Long service life.
6. The rated voltage of Y1 is 400-500VAC, and the experimental voltage is 4000VAC.
7. Y capacitors often use high-voltage ceramics.
8. Y1 is a double-insulated Y capacitor, which is used to bridge the primary and secondary sides.
9. Flame-retardant epoxy resin package.
10. X capacitors and Y capacitors are collectively referred to as safety capacitors. Safety capacitors are used in such occasions, that is, after the capacitor fails, it will not cause electric shock and will not endanger personal safety.
Advantages
1. We have all models of material, save you time looking for it.And recommend materials for you if you need.
2. With the same quality products,we can give you best price. Inquiries to after-sale, we will provide good service,such as update product status, technical support etc.(24 hour online)
3. We have many stocks, and the delivery time usually is short.
Applications
Can be used for power supply noise suppression circuit in cross connection and bypass.It is a primary and secondary coupling X/Y capacitor used as AC line filter and switching power supply and AC converter
|
ITEM |
SPECIFICATION |
TEST METHOD AND CONDITION |
||||||||||||||||
|
Temp Cycling
|
Appearance |
No marked defect |
The capacitor shall be introduced into the test chamber, and shall be exposed to the temperature conditions as shown in table at 5 cycles. pretreatment: The capacitor shall be placed at 125±2℃ for 1 hour, then placed at room condition for 24±2hours before initial measurement. Post-treatment: Capacitor shall be stored for 24±2 hours at room conditions.
|
|||||||||||||||
|
Capacitance Change |
B:±10% max E:±20% max F:±30% max |
|||||||||||||||||
|
D.F. |
B,E:5.0% max F:7.0% max |
|||||||||||||||||
|
I.R. |
1000MΩ min | |||||||||||||||||
|
Humidity (Under Steady State) |
Appearance |
No marked defect |
Set the capacitor for 500±12 hours at 40±2℃ in 95±3% RH. pre-treatment: The capacitor shall be placed at 125±2℃ for 1 hour, then placed at room condition for 24±2 hours before initial measurement. Post-treatment: The capacitor shall be stored for 24±2 hours at room condition. |
|||||||||||||||
|
Capacitance Change |
B:±10% max E:±20% max F:±30% max |
|||||||||||||||||
|
D.F. |
B,E:5.0% max F:7.0% max |
|||||||||||||||||
|
I.R. |
1500MΩ min | |||||||||||||||||
|
Dielectric Strength |
Per Item 8 |
|||||||||||||||||
|
Life Test |
Appearance |
No marked defect |
Apply a voltage of 500V.AC,except that once each hour the voltage is increased to 1000V.AC for 0.1sec.that shall be maintained for 1000±48 hours at 125±2℃. Pre-treatment: Capacitor shall be stored at 125±2℃ for 1 hour, then placed at room condition for 24±2H before initial measurements. Post-treatment: Capacitor shall be stored for 24±2 hours at room condition. |
|||||||||||||||
|
Capacitance Change |
B:±10% max E:±20% max F:±30% max |
|||||||||||||||||
|
D.F. |
B,E:5.0% max F:7.0% max |
|||||||||||||||||
|
I.R. |
1500MΩ min | |||||||||||||||||
Product Voltage, Material, Size reference Table
| Product and size code | Rated AC Voltage | Temperature Characteristic | Rated Capacitance | Tolerance of Capacitance | Size (mm) | |||
| D.max | T.max | P±0.8 | d±0.05 | |||||
| Q065B□□100K□ | 400Vac |
(B) |
10pF |
K |
6.5 | 4.5 | 10 | 0.55 |
| Q065B□□150K□ | 15pF | 6.5 | 4.5 | 10 | 0.55 | |||
| Q070B□□220K□ | 22pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q070B□□330K□ | 33pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q070B□□470K□ | 47pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q070B□□560K□ | 56pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q070B□□620K□ | 62pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q070B□□820K□ | 82pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q065B□□101K□ | 100pF | 6.5 | 4.5 | 10 | 0.55 | |||
| Q065B□□221K□ | 220pF | 6.5 | 4.5 | 10 | 0.55 | |||
| Q075B□□331K□ | 330pF | 7.5 | 4.5 | 10 | 0.6 | |||
| Q085B□□471K□ | 470pF | 8.5 | 4.5 | 10 | 0.6 | |||
| Q085B□□561K□ | 560pF | 8.5 | 4.5 | 10 | 0.6 | |||
| Q095B□□681K□ | 680pF | 9.5 | 4.5 | 10 | 0.6 | |||
| Q110B□□821K□ | 820pF | 11.0 | 4.5 | 10 | 0.6 | |||
| Q115B□□102K□ | 1000pF | 11.5 | 4.5 | 10 | 0.6 | |||
| Q065E□□471K□ |
(E) |
470pF | 6.5 | 4.5 | 10 | 0.55 | ||
| Q075E□□561K□ | 560pF | 7.5 | 4.5 | 10 | 0.6 | |||
| Q075E□□681K□ | 680pF | 7.5 | 4.5 | 10 | 0.6 | |||
| Q075E□□821K□ | 820pF | 7.5 | 4.5 | 10 | 0.6 | |||
| Q085E□□102K□ | 1000pF | 8.5 | 4.5 | 10 | 0.65 | |||
| Q095E□□152M□ | 1500pF |
M |
9.5 | 4.5 | 10 | 0.65 | ||
| Q105E□□222M□ | 2200pF | 10.5 | 4.5 | 10 | 0.65 | |||
| Q115E□□332M□ | 3300pF | 11.5 | 4.5 | 10 | 0.65 | |||
| Q065F□□102M□ |
(F) |
1000pF | 6.5 | 4.5 | 10 | 0.55 | ||
| Q075F□□152M□ | 1500pF | 7.5 | 4.5 | 10 | 0.6 | |||
| Q085F□□222M□ | 2200pF | 8.5 | 4.5 | 10 | 0.6 | |||
| Q100F□□332M□ | 3300pF | 10.0 | 4.5 | 10 | 0.65 | |||
| 4700pF | 11.5 | 4.5 | 10 | 0.65 | ||||
Specification and Test Method
|
ITEM |
SPECIFICATION |
TEST METHOD AND CONDITION |
|||||||||||||
|
Storage Temp. Range |
-40℃~+125℃ | ||||||||||||||
|
Operating Temp. Range |
-25℃~+125℃ | ||||||||||||||
|
|
Appearance has |
|
|||||||||||||
|
|
|
|
|||||||||||||
|
|
|
Temp. 20±2℃ |
|||||||||||||
|
Dissipation Factor |
B,E:2.5% max |
|
|||||||||||||
|
|
10,000MΩ |
|
|||||||||||||
|
|
|
|
|
||||||||||||
|
|
|
|
|||||||||||||
|
|
B:-10~+10% |
|
|||||||||||||
Production Process
