Product Details:
|
| Features: | Safety Standards Recognized For AC Applications | Storage Temp. Range: | -40℃~+125℃ |
|---|---|---|---|
| Operating Temp. Range: | -25℃~+125℃ | Main Material: | Ceramic |
| Voltage - Rated: | 400VAC | Package: | Standard Packing |
| Application: | Automotive | Type: | Y1 Safety Capacitor |
| Highlight: | CQC Y1 Safety Capacitor,Y1 Safety Capacitor 222M,Y1 Capacitor 222M |
||

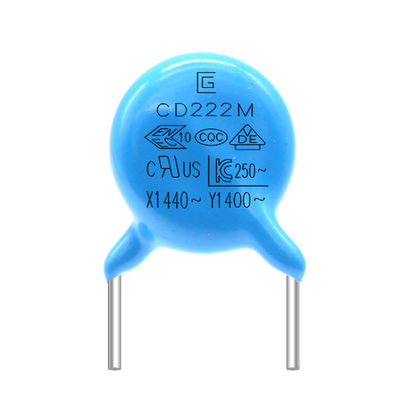

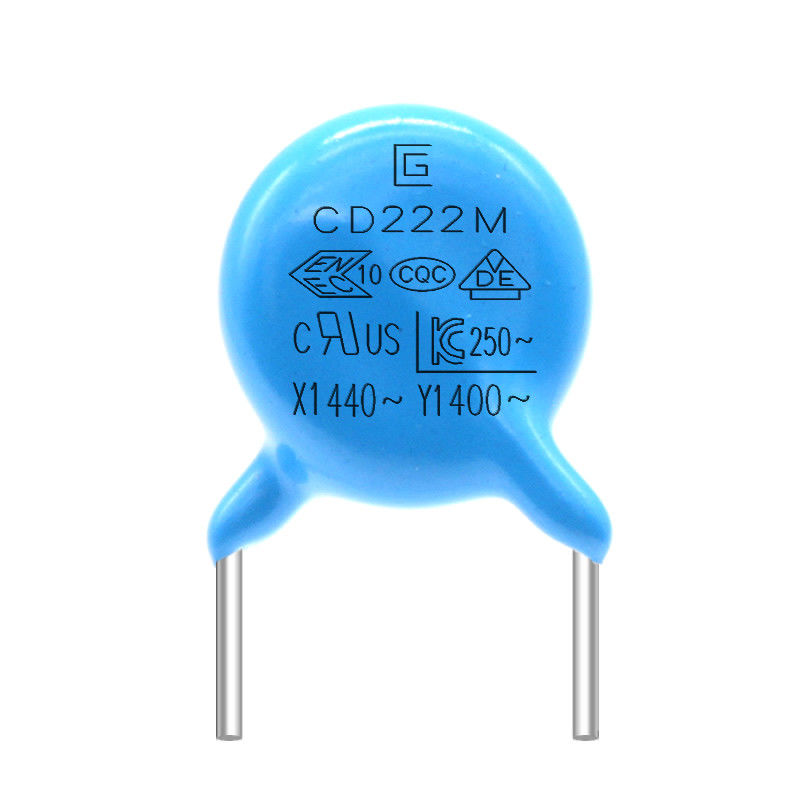

Small Size 222M 400VAC Y1 Safety Capacitor For High Frequency AC Circuits
The safety Y1 capacitor is an electronic component composed of two conductors sandwiching an insulator. It is like a sandwich. The safety Y1 capacitor shoulders a heavy responsibility, and the requirements for the product must be very high. First, it must obtain the certification of the safety testing agency. Example: CQC; VDE; UL; ENEC, KC, etc., the appearance of y1 capacitors is mostly blue, and the products have safety certification marks and withstand voltage AC400V words. Its true DC withstand voltage is as high as 4000V or more. It must be emphasized that the y capacitor should not be replaced by ordinary ceramic capacitors at will.
Y1 Safety Capacitor .pdf
FEATURES
Ideal for across the line application
Compact size
Cost effective product
Safety standards recognized for AC applications
APPLICATIONS
High voltage DC power supplies or discharges.
High frequency AC circuits.
Noise suppressor or horizontal out-put circuits.
1. We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items).
2. If the items you purchase from our store are not of perfected quality, that is they don't work electronically to manufacturers specifications, simply return them to us for replacement or refund.
We bear the shipping cost from return the part in guarantee day
3. If the items are defective, please notify us within 3 days of delivery.
4. Any items must be returned in their original condition to qualify for a refund or replacement.
5. The buyer is responsible for all the shipping cost incurred.
|
ITEM |
SPECIFICATION |
TEST METHOD AND CONDITION |
||||||||||||||||
|
Temp Cycling
|
Appearance |
No marked defect |
The capacitor shall be introduced into the test chamber, and shall be exposed to the temperature conditions as shown in table at 5 cycles. pretreatment: The capacitor shall be placed at 125±2℃ for 1 hour, then placed at room condition for 24±2hours before initial measurement. Post-treatment: Capacitor shall be stored for 24±2 hours at room conditions.
|
|||||||||||||||
|
Capacitance Change |
B:±10% max E:±20% max F:±30% max |
|||||||||||||||||
|
D.F. |
B,E:5.0% max F:7.0% max |
|||||||||||||||||
|
I.R. |
1000MΩ min | |||||||||||||||||
|
Humidity (Under Steady State) |
Appearance |
No marked defect |
Set the capacitor for 500±12 hours at 40±2℃ in 95±3% RH. pre-treatment: The capacitor shall be placed at 125±2℃ for 1 hour, then placed at room condition for 24±2 hours before initial measurement. Post-treatment: The capacitor shall be stored for 24±2 hours at room condition. |
|||||||||||||||
|
Capacitance Change |
B:±10% max E:±20% max F:±30% max |
|||||||||||||||||
|
D.F. |
B,E:5.0% max F:7.0% max |
|||||||||||||||||
|
I.R. |
1500MΩ min | |||||||||||||||||
|
Dielectric Strength |
Per Item 8 |
|||||||||||||||||
|
Life Test |
Appearance |
No marked defect |
Apply a voltage of 500V.AC,except that once each hour the voltage is increased to 1000V.AC for 0.1sec.that shall be maintained for 1000±48 hours at 125±2℃. Pre-treatment: Capacitor shall be stored at 125±2℃ for 1 hour, then placed at room condition for 24±2H before initial measurements. Post-treatment: Capacitor shall be stored for 24±2 hours at room condition. |
|||||||||||||||
|
Capacitance Change |
B:±10% max E:±20% max F:±30% max |
|||||||||||||||||
|
D.F. |
B,E:5.0% max F:7.0% max |
|||||||||||||||||
|
I.R. |
1500MΩ min | |||||||||||||||||
Product Voltage, Material, Size reference Table
| Product and size code | Rated AC Voltage | Temperature Characteristic | Rated Capacitance | Tolerance of Capacitance | Size (mm) | |||
| D.max | T.max | P±0.8 | d±0.05 | |||||
| Q065B□□100K□ | 400Vac |
(B) |
10pF |
K |
6.5 | 4.5 | 10 | 0.55 |
| Q065B□□150K□ | 15pF | 6.5 | 4.5 | 10 | 0.55 | |||
| Q070B□□220K□ | 22pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q070B□□330K□ | 33pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q070B□□470K□ | 47pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q070B□□560K□ | 56pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q070B□□620K□ | 62pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q070B□□820K□ | 82pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q065B□□101K□ | 100pF | 6.5 | 4.5 | 10 | 0.55 | |||
| Q065B□□221K□ | 220pF | 6.5 | 4.5 | 10 | 0.55 | |||
| Q075B□□331K□ | 330pF | 7.5 | 4.5 | 10 | 0.6 | |||
| Q085B□□471K□ | 470pF | 8.5 | 4.5 | 10 | 0.6 | |||
| Q085B□□561K□ | 560pF | 8.5 | 4.5 | 10 | 0.6 | |||
| Q095B□□681K□ | 680pF | 9.5 | 4.5 | 10 | 0.6 | |||
| Q110B□□821K□ | 820pF | 11.0 | 4.5 | 10 | 0.6 | |||
| Q115B□□102K□ | 1000pF | 11.5 | 4.5 | 10 | 0.6 | |||
| Q065E□□471K□ |
(E) |
470pF | 6.5 | 4.5 | 10 | 0.55 | ||
| Q075E□□561K□ | 560pF | 7.5 | 4.5 | 10 | 0.6 | |||
| Q075E□□681K□ | 680pF | 7.5 | 4.5 | 10 | 0.6 | |||
| Q075E□□821K□ | 820pF | 7.5 | 4.5 | 10 | 0.6 | |||
| Q085E□□102K□ | 1000pF | 8.5 | 4.5 | 10 | 0.65 | |||
| Q095E□□152M□ | 1500pF |
M |
9.5 | 4.5 | 10 | 0.65 | ||
| Q105E□□222M□ | 2200pF | 10.5 | 4.5 | 10 | 0.65 | |||
| Q115E□□332M□ | 3300pF | 11.5 | 4.5 | 10 | 0.65 | |||
| Q065F□□102M□ |
(F) |
1000pF | 6.5 | 4.5 | 10 | 0.55 | ||
| Q075F□□152M□ | 1500pF | 7.5 | 4.5 | 10 | 0.6 | |||
| Q085F□□222M□ | 2200pF | 8.5 | 4.5 | 10 | 0.6 | |||
| Q100F□□332M□ | 3300pF | 10.0 | 4.5 | 10 | 0.65 | |||
| 4700pF | 11.5 | 4.5 | 10 | 0.65 | ||||
Specification and Test Method
|
ITEM |
SPECIFICATION |
TEST METHOD AND CONDITION |
|||||||||||||
|
Storage Temp. Range |
-40℃~+125℃ | ||||||||||||||
|
Operating Temp. Range |
-25℃~+125℃ | ||||||||||||||
|
|
Appearance has |
|
|||||||||||||
|
|
|
|
|||||||||||||
|
|
|
Temp. 20±2℃ |
|||||||||||||
|
Dissipation Factor |
B,E:2.5% max |
|
|||||||||||||
|
|
10,000MΩ |
|
|||||||||||||
|
|
|
|
|
||||||||||||
|
|
|
|
|||||||||||||
|
|
B:-10~+10% |
|
|||||||||||||
Production Process
