Product Details:
|
| Features: | Small Size | Storage Temp. Range: | -40℃~+125℃ |
|---|---|---|---|
| Operating Temp. Range: | -25℃~+125℃ | Certificate: | CQC,VDE,IEC,ENEC,RoHS |
| Customize: | Yes , Provide Sample Services | Package: | Standard Packing |
| Application: | Safety | Type: | Y1 Safety Capacitor |
| Highlight: | High Voltage Ceramic Capacitor 471k,High Voltage Ceramic Capacitor 400vac,Small Ceramic capacitor 400 vac |
||

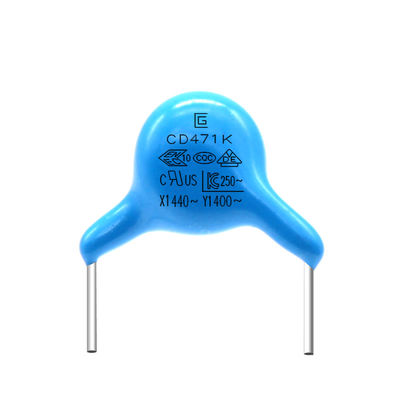

Small Size 471K 400VAC Y1 Safety Capacitor Often Use High-Voltage Ceramics
There are some variable elements in the circuit, such as inductors, capacitors, etc. These variable elements generally can only bring about or reduce the relative change (or reduction) of the sinusoidal quantity of its corresponding frequency. For example, when the switch is turned on, the alternating current will change repeatedly between Y1 and Y2, and the electromagnetic field generated at this time (a magnetic field similar to the light emitted by the light source) will naturally generate a force between the wires
Feature
1. Small size.
2. AC capacitors that have passed and complied with safety certification.
3. The high-frequency loss is small, and it can withstand the impact of AC peak surges.
4. Strong over-current capability, small capacity and loss attenuation.
5. Long service life.
6. The rated voltage of Y1 is 400-500VAC, and the experimental voltage is 4000VAC.
7. Y capacitors often use high-voltage ceramics.
8. Y1 is a double-insulated Y capacitor, which is used to bridge the primary and secondary sides.
9. Flame-retardant epoxy resin package.
APPLICATIONS
High voltage DC power supplies or discharges.
High frequency AC circuits.
Noise suppressor or horizontal out-put circuits.
|
ITEM |
SPECIFICATION |
TEST METHOD AND CONDITION |
||||||||||||||||
|
Temp Cycling
|
Appearance |
No marked defect |
The capacitor shall be introduced into the test chamber, and shall be exposed to the temperature conditions as shown in table at 5 cycles. pretreatment: The capacitor shall be placed at 125±2℃ for 1 hour, then placed at room condition for 24±2hours before initial measurement. Post-treatment: Capacitor shall be stored for 24±2 hours at room conditions.
|
|||||||||||||||
|
Capacitance Change |
B:±10% max E:±20% max F:±30% max |
|||||||||||||||||
|
D.F. |
B,E:5.0% max F:7.0% max |
|||||||||||||||||
|
I.R. |
1000MΩ min | |||||||||||||||||
|
Humidity (Under Steady State) |
Appearance |
No marked defect |
Set the capacitor for 500±12 hours at 40±2℃ in 95±3% RH. pre-treatment: The capacitor shall be placed at 125±2℃ for 1 hour, then placed at room condition for 24±2 hours before initial measurement. Post-treatment: The capacitor shall be stored for 24±2 hours at room condition. |
|||||||||||||||
|
Capacitance Change |
B:±10% max E:±20% max F:±30% max |
|||||||||||||||||
|
D.F. |
B,E:5.0% max F:7.0% max |
|||||||||||||||||
|
I.R. |
1500MΩ min | |||||||||||||||||
|
Dielectric Strength |
Per Item 8 |
|||||||||||||||||
|
Life Test |
Appearance |
No marked defect |
Apply a voltage of 500V.AC,except that once each hour the voltage is increased to 1000V.AC for 0.1sec.that shall be maintained for 1000±48 hours at 125±2℃. Pre-treatment: Capacitor shall be stored at 125±2℃ for 1 hour, then placed at room condition for 24±2H before initial measurements. Post-treatment: Capacitor shall be stored for 24±2 hours at room condition. |
|||||||||||||||
|
Capacitance Change |
B:±10% max E:±20% max F:±30% max |
|||||||||||||||||
|
D.F. |
B,E:5.0% max F:7.0% max |
|||||||||||||||||
|
I.R. |
1500MΩ min | |||||||||||||||||
Product Voltage, Material, Size reference Table
| Product and size code | Rated AC Voltage | Temperature Characteristic | Rated Capacitance | Tolerance of Capacitance | Size (mm) | |||
| D.max | T.max | P±0.8 | d±0.05 | |||||
| Q065B□□100K□ | 400Vac |
(B) |
10pF |
K |
6.5 | 4.5 | 10 | 0.55 |
| Q065B□□150K□ | 15pF | 6.5 | 4.5 | 10 | 0.55 | |||
| Q070B□□220K□ | 22pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q070B□□330K□ | 33pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q070B□□470K□ | 47pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q070B□□560K□ | 56pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q070B□□620K□ | 62pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q070B□□820K□ | 82pF | 7.0 | 4.5 | 10 | 0.55 | |||
| Q065B□□101K□ | 100pF | 6.5 | 4.5 | 10 | 0.55 | |||
| Q065B□□221K□ | 220pF | 6.5 | 4.5 | 10 | 0.55 | |||
| Q075B□□331K□ | 330pF | 7.5 | 4.5 | 10 | 0.6 | |||
| Q085B□□471K□ | 470pF | 8.5 | 4.5 | 10 | 0.6 | |||
| Q085B□□561K□ | 560pF | 8.5 | 4.5 | 10 | 0.6 | |||
| Q095B□□681K□ | 680pF | 9.5 | 4.5 | 10 | 0.6 | |||
| Q110B□□821K□ | 820pF | 11.0 | 4.5 | 10 | 0.6 | |||
| Q115B□□102K□ | 1000pF | 11.5 | 4.5 | 10 | 0.6 | |||
| Q065E□□471K□ |
(E) |
470pF | 6.5 | 4.5 | 10 | 0.55 | ||
| Q075E□□561K□ | 560pF | 7.5 | 4.5 | 10 | 0.6 | |||
| Q075E□□681K□ | 680pF | 7.5 | 4.5 | 10 | 0.6 | |||
| Q075E□□821K□ | 820pF | 7.5 | 4.5 | 10 | 0.6 | |||
| Q085E□□102K□ | 1000pF | 8.5 | 4.5 | 10 | 0.65 | |||
| Q095E□□152M□ | 1500pF |
M |
9.5 | 4.5 | 10 | 0.65 | ||
| Q105E□□222M□ | 2200pF | 10.5 | 4.5 | 10 | 0.65 | |||
| Q115E□□332M□ | 3300pF | 11.5 | 4.5 | 10 | 0.65 | |||
| Q065F□□102M□ |
(F) |
1000pF | 6.5 | 4.5 | 10 | 0.55 | ||
| Q075F□□152M□ | 1500pF | 7.5 | 4.5 | 10 | 0.6 | |||
| Q085F□□222M□ | 2200pF | 8.5 | 4.5 | 10 | 0.6 | |||
| Q100F□□332M□ | 3300pF | 10.0 | 4.5 | 10 | 0.65 | |||
| 4700pF | 11.5 | 4.5 | 10 | 0.65 | ||||
Specification and Test Method
|
ITEM |
SPECIFICATION |
TEST METHOD AND CONDITION |
|||||||||||||
|
Storage Temp. Range |
-40℃~+125℃ | ||||||||||||||
|
Operating Temp. Range |
-25℃~+125℃ | ||||||||||||||
|
|
Appearance has |
|
|||||||||||||
|
|
|
|
|||||||||||||
|
|
|
Temp. 20±2℃ |
|||||||||||||
|
Dissipation Factor |
B,E:2.5% max |
|
|||||||||||||
|
|
10,000MΩ |
|
|||||||||||||
|
|
|
|
|
||||||||||||
|
|
|
|
|||||||||||||
|
|
B:-10~+10% |
|
|||||||||||||
