Flame Retardant 0.22 UF 224k Capacitor 275VAC High Moisture Resistance

Large Image : Flame Retardant 0.22 UF 224k Capacitor 275VAC High Moisture Resistance

Product Details:

Place of Origin:	Dong Guan
Brand Name:	CG
Certification:	VDE，CQC
Model Number:	X2-224K-275VAC-E21

Payment & Shipping Terms:

Minimum Order Quantity:	10000 Pieces
Price:	Discuss
Packaging Details:	200pcs/ bag,carton size:45cm31cm34cm,inner box:29.2cm21cm31.3cm,a carton inside two inner boxs , 4000pcs/ box
Delivery Time:	15-21 work days
Payment Terms:	T/T
Supply Ability:	100000000 Pieces

Contact Now

Flame Retardant 0.22 UF 224k Capacitor 275VAC High Moisture Resistance

Description

Fetures:	High Moisture-Resistance	Capacitance::	0.22uf
Rated Voltage::	250-310V	Operating Temperature:	-40℃～+110℃
Application::	Power Supply	Media Available:	Datasheet, Photo
Highlight:	224k Capacitor , 0.22 UF Capacitor 275VAC

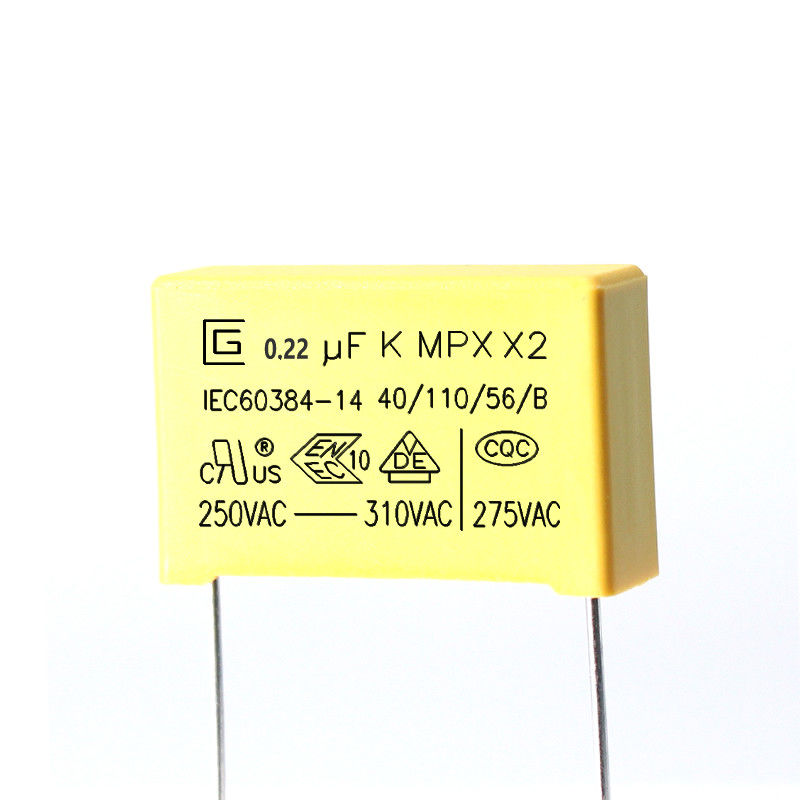

Flame Retardant Type 0.22uf 224K 275VAC X2 Safety Capacitor High Moisture-Resistance

X2 Safety Capacitor.pdf

Reference standards

GB-T2693-2001(IDT IEC 60384-1-2008)Fixed capacitors for use in electronic equipment –Part 1: Generic specification
GB-T14472-1988 Fixed capacitors for use in electronic equipment –Part 16:Sectional specification: Fixed metallized polypropylene film D.C. capacitor

IEC-60384-14-2005 Fixed capacitors for use in electronic equipment –Part 16:Sectional specification: Fixed metallized polypropylene film D.C. capacitor
GB-T 2828.1-2003 Sampling procedures for inspection by attributes—Part 1: Sampling schemes indexed by acceptance quality limit (AQL)for lot-by-lot inspection (ISO 2859-1:1999, IDT)

Marking

1. CIGU logo:
2. Capacitance:(104K ,0.1μF)
3. Capacitance Tolerance:(K)±10%
4. Rated Voltage:250,275,300,305,310VAC 5. Product Class:X2
6. Product type: MPX
7. Climatic Category: 40/110/56
8. Passive Flammability Class:B
9. China approvals mark:CQC
10. Germany approvals mark:VDE
11. ENEC approvals mark:ENEC

Products Introduction

MPX are winded with metallized polypropylene film dielectric,Non-inductive construction, tinned copper wire leads,and flame retardant epoxy resin coating. They have excellent features of self-healing and good flame retardant according to UL 94-V0

Type application

The Products Would widely used for the Interference suppressors and across-the-line capacitor applications.Suitable for used in situations where failure of the capacitor will not lead to danger of electric shock.

Features

1 Non-induction construction

2 High moisture-resistance

3 Self-healing property

4 Flame retardant type(compliance with UL 94V-0)

5 Very small loss

6 Excellent frequency and temperature characteristics

7 High insulation resistance

Specifications(IEC 60384-14)

Test items	Performance requirements	Conditions of test
Capacitance	Within the tolerance specified	1KHz, 1Vrms Max. at 25℃
Dissipation Factor	0.001 (0.1%) Max.	1KHz, 1Vrms Max. at 25℃
Voltage proof	Shall be no abnormality	Between terminals 4.3UR (Vdc) Test of 60sec.
Voltage proof	Shall be no abnormality	Between terminal and enclosure UR×200％+1500Vac, 60sec.
Insulation resistance	CR ≤ 0.33μF IR ≥ 15,000MΩ CR >0.33μF IR ≥6,000s	100±15Vdc, 60sec / 25℃
Robustness of terminations	No wire breakage and no damage of capacitor	Tense Strength of Terminal Load Force : 1.0 Kg Holding Time : 10 ± 1sec
Robustness of terminations	No wire breakage and no damage of capacitor	Bending Strength of Terminal Load Force : 0.5 Kg Bending Time : 4 x 90 ﾟ
Resistance to soldering heat	(1) Appearance : No visible damage (2) △C/C : ≤ ±5% of the initial value	Solder temperature: 260±5℃ Solder time: 5±0.5sec
Solderability	95% of the surface tinning	Solder temperature: 260±5℃ Solder time: 2±0.5sec
Rapid change of temperature	The capacitors shall be visually examined and there shall be no visible damage.	Lower category temperature: -40℃ Upper category temperature: 110℃ Number of cycles: 5 Duration t1 = 30 min
Vibration	The capacitors shall be visually examined and there shall be no visible damage	Frequency range: 10~55Hz Course: X,Y,Z (axis) 2h / axis ( 6h in total) Displacement amplitude: 0.75mm

Test items	Performance requirements	Conditions of test
Climatic sequence	(1) Appearance : No visible damage (2) △C/C : ≤ ±5% of the initial value (3) DF ( tanδ) : ≤ 0.008 of increased value (4) IR : ≥ 50% of the applicable limits (5) Voltage proof : Normal	Dry Heat Upper Temperature: 110℃ Lower Duration: 16Hrs
Climatic sequence		Cold Temperature: -40℃ Duration: 2Hrs
Damp Heat Steady State	(1) Appearance : No visible damage (2) △C/C : ≤ ±5% of the Initial value (3) DF ( tanδ) : ≤ 0.008 of increased value (4) IR : ≥ 50% of the applicable limits (5) Voltage proof : Normal	+40°C and 93% RH, 56 days
Charge and discharge	(1) Appearance : No visible damage (2) △C/C : ≤ ±10% of the initial value (3) DF ( tanδ) : ≤ 0.008 of increased value (4) IR : ≥ 50% of the applicable limits	Test voltage : √2 x URVAC 50 Hz Charge and discharge: 0.5sec/time Repeated for 10000 cycles
Endurance	(1) Appearance : No Visible Damage (2) △C/C : ≤ ±10% of the initial value (3) DF ( tanδ) : ≤ 0.008 of increased value (4) IR : ≥ 50% of the applicable limits	1.25 x UR VAC 50 Hz, once every hour increase to 1,000VAC for 0.1 second, 1,000 hours at upper rated temperature

Storage conditions

1 t should be noted that the solderability of the terminals may be deteriorted when stored barely in an atmosphere for a long preriods
2 It shouldn't be located in particularly high temperature and high humidity, it must submit to the following conditions(keeping in the original package)
Temperature: 35 MAX Relative humidity:60% MAX
3 Storage period:Losse:12 monthes max (from the manufacturing date marked on the label in package bag)

Item	Characteristic requirement					Test method&Condition
Climatic Category	40/110/56
Passive Flammability Class	B
Operating Temperature	-40~+110
Capacitance Range	0.0022μF~2.2μF
Capacitance Tolerance	±10%(K),±20%(M)					1KHz ,1.0Vrms ,25
Rated Voltage	250V AC/275V AC/300V AC/305V AC/310V AC
Dissipation Factor	1KHz<0.10%					IR≥6000s
Insulation Resistance	C≤0.33μF		C>0.33μF			UR>100V ,100VDC,
	IR≥15000MΩ		IR≥6000s			60S,20
Withstand voltage Between Terminals	No permanent breakdown or flashover					4.3UR(d.c) 60s 25Cut off Current 10mA
Withstand voltage Between Terminals and Case	No permanent breakdown or flashover					2UR+1500V(a.c) 60s 25 ≥2000V(a.c) 25
MAX. Pulse rise time (dv/dt)	Lead spacing
	7.5mm 600V/μs	10mm		15mm	22.5mm		27.5mm	37.5mm 100V/μs

Enviroment requirement

1 Compliance with the requirement of RoHS.
2 Compliance with the requirement of REACH.
3 Without Halogen(as required).
4 Please see the attachment 2 for the test reprots of the Rohs and Reach by a third party

Quality Control
