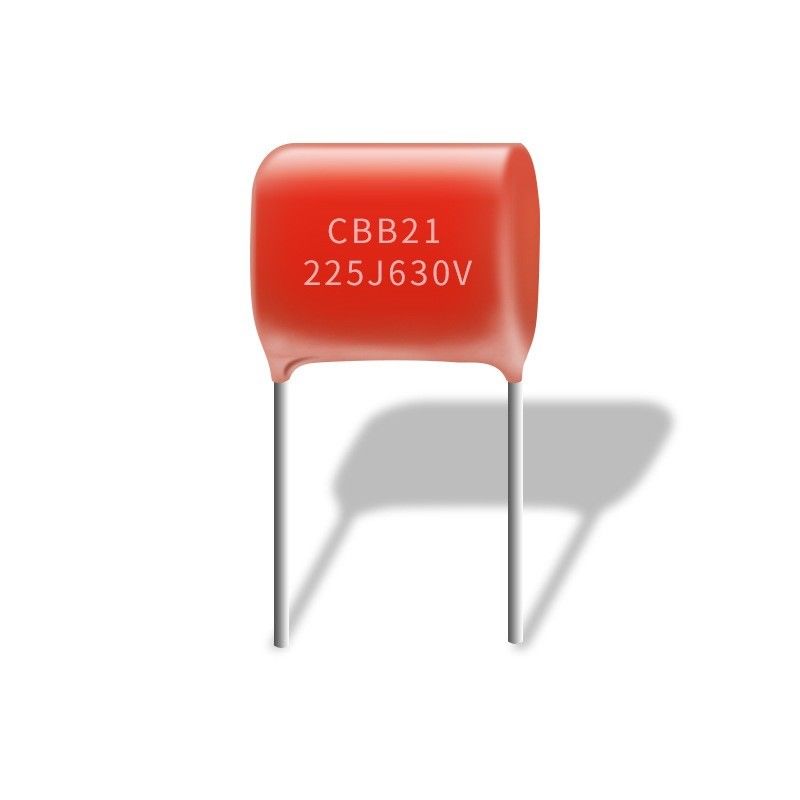

CBB21 225J 630V Metallized Polyester Film Capacitor With Good Self Healing Properties

High Insulation Resistance CBB21 225J 600V Metallized Polyester Film Capacitor Good Self-Healing Properties​

In fact, CBB21 capacitors and CBB22 capacitors are the same capacitor, and some manufacturers like to print MPP words, they are the same type of capacitors, CBB21 capacitors use metallized polypropylene film non-inductive winding, flame-retardant epoxy powder packaging, Tinned copper lead out, with strong moisture resistance, good self-healing, high insulation, low loss and so on. Suitable for LED lights, ignition and high frequency circuits.

What are the characteristics and functions of CBB21 metal film capacitors?

1. High-frequency resistance, and high-frequency loss is very small, much smaller than CL metallized polyester film capacitors, high reliability, good stability, and long life.
2. The internal temperature rise is small, the high temperature resistance is 105°C, and the high temperature resistance performance is good. (It should be noted that there are many CBB21 capacitors on the market that cut corners. They use poor materials and can only withstand high temperatures of 85°C)
3. High insulation resistance, it has good self-healing properties, of course, this is also a common feature of most film capacitors.
4. The exterior is encapsulated with epoxy resin. If you want to use it in some harsh environments, you can also choose MPB capacitors. Its internal core is the same as that of CBB21 capacitors, but the exterior is sealed with a plastic shell.

Usage:


Suitable for DC and lowpulse occasions, forthe amplifier, TV, communications, power supply, LED drivers and other requirements of the small size of the circuit.

Specification:


Climatic Category	40/085/21
Rated Voltage	63V , 100V , 250V,400V,630V
Capacitance Range	0.0010μF~1.0μF
Voltage Proof	1.6 UR
Insulation Resistance	≥3 000MΩ, CR≤0.33μF
	≥1 000S, CR>0.33μF
	(20℃, 1min)
Disspation Factor	≤0.008(20℃, 1kHz)

Outline Drawing:

FAQ

Q;Materials of products?
A;A metallized film for A + grade capacitors. Besides we accept customization
Q;Samples are free?
A:yes!
Q;Quality Control?
A;Quality is first,We has passed ISO9001and ROHS REACH certification,As an important part of quality management, quality control is the key to proving the effectiveness of quality certification.



What are the advantages of CBB21 as a filter capacitor?


Whether the filter capacitor should be CBB21 capacitor or electrolytic capacitor, it is easy to choose. Electrolytic capacitor must be used to filter DC wave, but electrolytic capacitor must be used to filter AC wave, even if it is cheap, you need to use CBB21 at this time capacitance.
The filtering principle of the CBB21 capacitor is actually not complicated. The filtering is the process of charging and discharging. The function of the filter capacitor is simply to make the filtered output voltage a stable DC voltage. Its working principle is that the capacitor is charged when the rectified voltage is higher than the capacitor voltage, and the capacitor is discharged when the rectified voltage is lower than the capacitor voltage. During the charging and discharging process , so that the output voltage is basically stable.
Many capacitors and inductors have the function of filtering, because they have energy storage functions, and filtering is realized by using their functions. The filter circuit requires the energy storage capacitor to have a large capacitance. Therefore, most filter circuits use electrolytic capacitors. However, in the AC circuit, CBB21 must be used as the filter capacitor, even if the cost of the electrolytic capacitor is lower, it cannot be used.
