Product Details:
|
| Model: | Y1 Safety Capacitor | Temperature: | -40℃ To +125℃ |
|---|---|---|---|
| Dissipation Factor: | B,E：2.5% Max F：3.5% Max | Humidity: | 45~75％ |
| Insulation Resistance: | >10,000MΩ | Dielectric Strength: | Apply A Voltage Of 4.0KVAC For 1 Min. Between The Lead Wires. |
| Voltage: | 400V | Material: | Y5V Y5U Y5P |
| Highlight: | Y5V Y1 Safety Capacitor,Practical Y1 Safety Capacitor,Flame Retardant Ceramic Safety Capacitor |
||

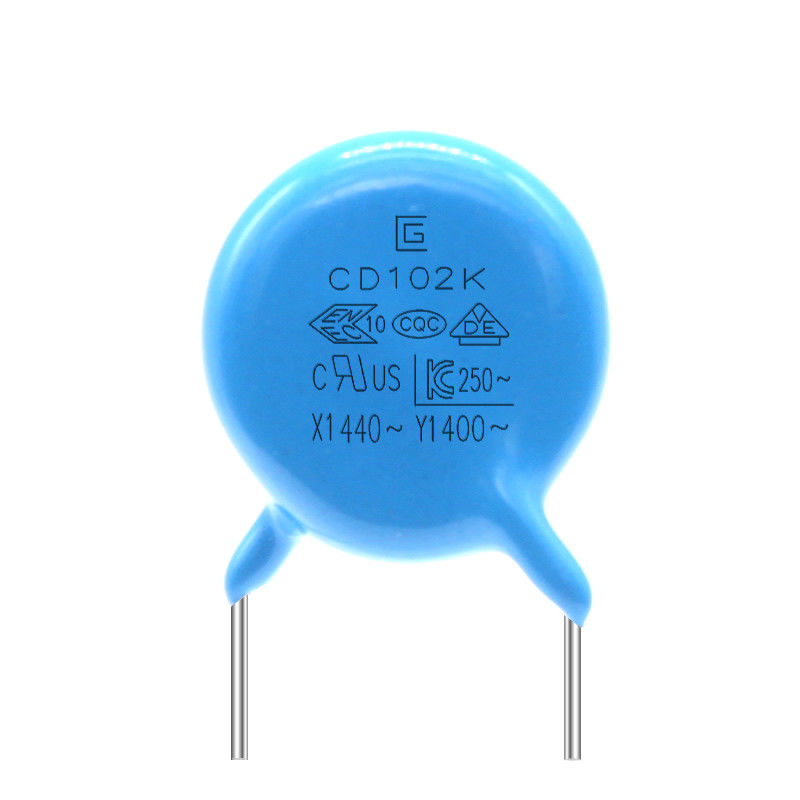

4000V Y1 Safety Capacitor, High Temperature Resistance And Flame Retardant
AC CERAMIC CAPACITORS
Applicable safety specifications
This specification is for insulated ceramic capacitors for electronic circuits and bypasses with UL/CuL, VDE, CQC, ENEC, KC, CB and other safety approvals.
Please read the relevant contents of this acknowledgement carefully before using, measuring and testing! If the specifications ordered by your company are not in the contents of this unit or differ from this acknowledgement, please contact our sales and technical departments! This specification adopts the national standard IEC60384-14 and the certification standard of related countries.
Safe Authentication
product description
Y capacitors are capacitors that are respectively connected between the two lines of the power line and the ground (L-E, N-E), generally in pairs. Based on the limitation of leakage current, the value of Y capacitor should not be too large. Generally, the X capacitor is of uF level, and the Y capacitor is of nF level. The X capacitor suppresses differential mode interference, and the Y capacitor suppresses common mode interference.
Product application range
Widely used in high frequency, DC, AC and pulsating circuits, electronic ballasts, switch mode power supplies, suitable for various high frequency, high current occasions, etc.
Features
Stable and safe choice
compact size
economical product
Compliance with safety certification
| Material properties | Y5P/Y5U/Y5V |
| Test voltage | 4000V |
| temperature range | -25~125° |
| Product outer diameter | 6.00mm-11.00mm |
| loss angle |
B(Y5P), E(Y5U),F(Y5V):D.F.≤2.5% |
| Relative humidity |
45-75% |
| air pressure |
86-106Kpa |
| product name | Y1 Ceramic Capacitor |
