Product Details:
|
| Application: | Electric Vehicle | Color: | Silver |
|---|---|---|---|
| Function: | Protection | Humidity: | 0~95%RH |
| Life Span: | 10000 Times | Material: | Copper |
| Operating Temperature: | -40℃~+125℃ | Package: | Carton Box |
| Product Name: | Electric Vehicle Fuse | Rated Current: | 30A-100A |
| Rated Voltage: | DC12V-48V | Size: | 2.5*0.8cm |
| Storage Temperature: | -40℃~+125℃ | ||
| Highlight: | 150v Ev Protection Fuses,Ev Protection Ev Fuses,DC12V Ev Protection Fuses |
||
●Product storage temperature: - 40 ℃ ~ 120 ℃. At 40 ℃, the relative humidity shall not be greater than 70%; The relative humidity at 30 ℃ shall not be greater than 80%; Below 20 ℃, the relative humidity shall not be greater than 90%.
Highlight

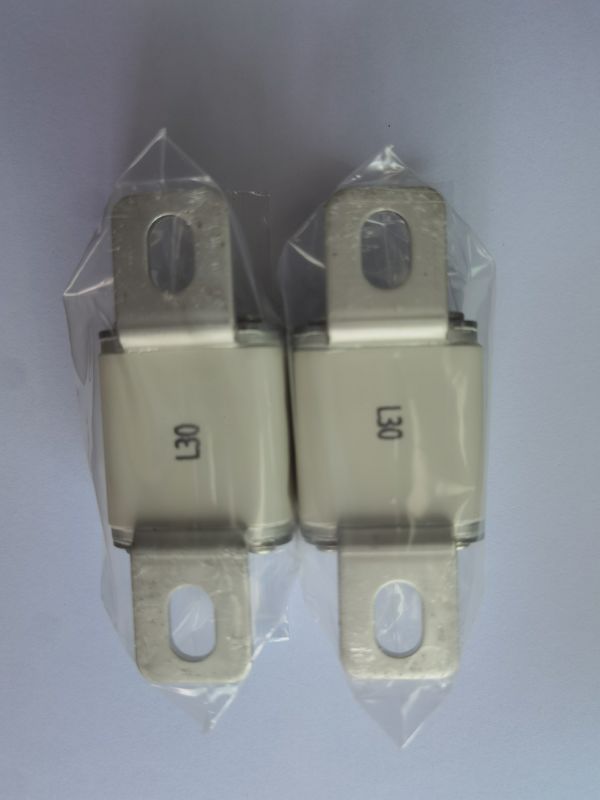

DC fuse for EV/HEV/ESS
Stud-mount, optional for other installation.
Excellent DC performance
Design meets with EV fuse standard UL248-20
Reliability performance design refer to
ISO8820-8&GB/T31465.6
Comply RoHS directive
Rated Current:- 15A ~80A (IR: 150V DC/50000A)
100A (IR: 100V DC/33000A)
125A(IR:90VDC@5000A)
Rated Voltage: 90V~150V DC
