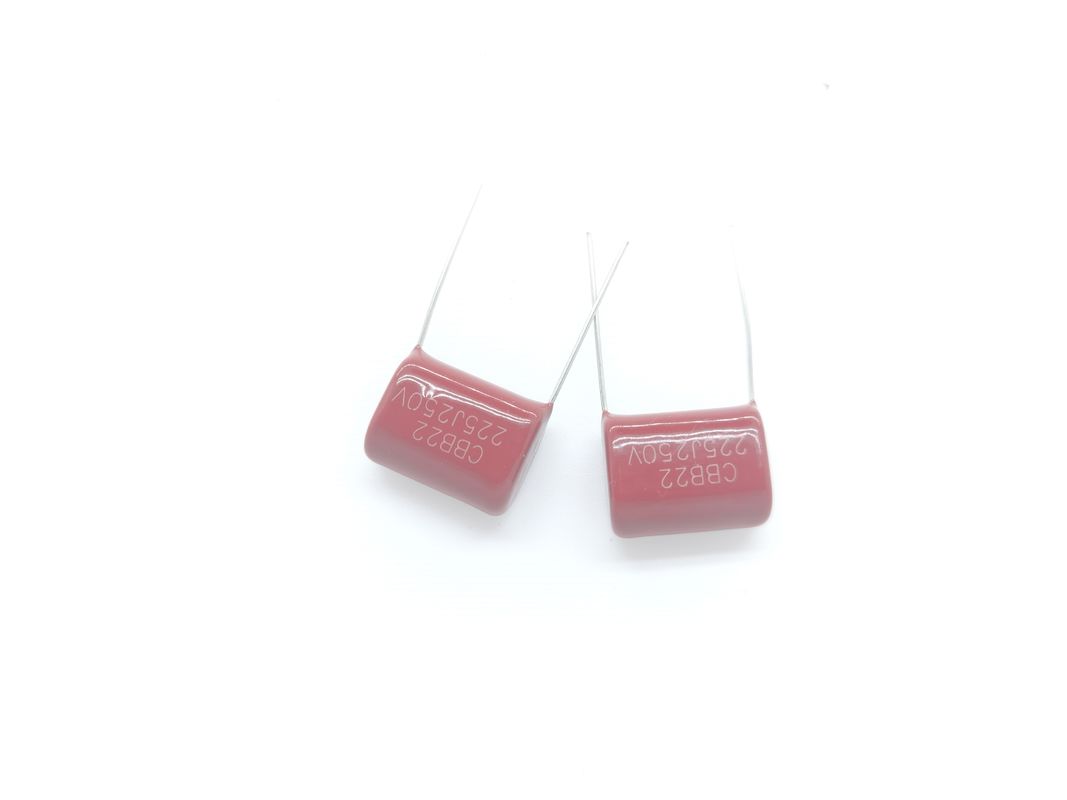

Temperature Metallized Polypropylene Film Capacitors 50V-1000V Through Hole Mounting

Product Description:

The Metalized Polypropylene Film Capacitor represents a crucial component in modern electronic systems, offering a combination of high efficiency, reliability, and versatility. Designed to meet the needs of various applications, these capacitors are constructed using a metalized polypropylene film, which serves as the dielectric material. The metalized film is known for its excellent electrical properties, including low dielectric absorption, high insulation resistance, and intrinsic self-healing characteristics, making these capacitors an ideal choice for critical applications.

Our Metallized Polypropylene Film Capacitors feature lead spacings ranging from 2.5mm to 10mm, accommodating diverse mounting requirements and making them suitable for a vast array of circuit board layouts. This variability ensures that designers can select a capacitor that fits perfectly into their specific design, without the need for board modifications or additional hardware.

These capacitors boast a capacitance range of 0.01uF to 2.2uF, allowing for precise tuning of filtering, timing, and coupling circuits, among others. The wide range of capacitance values available also means that these components can be utilized effectively across a broad spectrum of applications, from small-scale energy storage to complex signal processing tasks.

The Metallizing Polypropylene Film Capacitor comes with two types of lead configurations: radial and axial. The radial lead type is generally preferred for compact designs where space is at a premium, while the axial lead type is often used in applications where the layout allows for a more extended form factor. This versatility in lead styles ensures that our capacitors can be seamlessly integrated into a multitude of product designs, regardless of space constraints or layout considerations.

Our capacitors are engineered to perform in demanding environments and are thus widely used in power supply units, automotive electronics, and industrial machinery. In power supply applications, they offer excellent frequency characteristics and low equivalent series resistance (ESR), which is vital for maintaining efficiency and power quality. In automotive applications, the capacitors are built to withstand the rigors of the road, including temperature extremes and vibrations. In the industrial sector, their robust design ensures reliable operation under harsh conditions, contributing to the overall safety and longevity of industrial equipment.

Precision is key in electronic components, and our Metalized Polypropylene Capacitors come with a capacitance tolerance of +/-5%. This tight tolerance guarantees that the capacitors perform consistently within specified parameters, ensuring stable circuit operation and reliable performance. Such precision is particularly beneficial in applications where timing and frequency control are paramount, and any deviation from specified capacitance values could have significant repercussions on the system's functionality.

In summary, the Metalized Polypropylene Film Capacitor is an essential component for anyone looking to build or maintain high-performance electronic systems. With their broad range of lead spacings, capacitance values, lead types, and high tolerance levels, these capacitors are engineered to meet the stringent requirements of power supply, automotive, and industrial applications. Whether you're designing a new circuit or seeking to improve an existing system, our Metalized Polypropylene Film Capacitors offer the reliability, flexibility, and performance you need to succeed.

Features:

• Product Name: Metallized Polypropylene Film Capacitor
• Package Type: Tape And Reel
• Capacitance Tolerance: +/-5%
• Dissipation Factor: <=0.1
• Application: Power Supply, Automotive, Industrial
• Size: Diameter: 6.3mm-18mm; Length: 6.3mm-20mm
• Features of Metallizing Film Capacitor for enhanced performance
• Reliability of Metallizing Polypropylene Film Capacitor in various applications
• Quality construction of Metallized Polypropylene Film Capacitor for durability

Technical Parameters:

Applications:

The CL brand Metallized Polypropylene Film Capacitor, originating from CHINA, is a high-quality component designed for various electronic applications. This capacitor is built with leads ranging in length from 5mm to 50mm, which makes it versatile for different PCB designs and layouts. Its compact size, with diameters from 6.3mm to 18mm and lengths from 6.3mm to 20mm, ensures that it can be accommodated in tight spaces while providing the necessary capacitance.

With an operating temperature range of -40°C to +85°C, the CL Metalized Polypropylene Capacitor is suitable for use in environments that experience extreme temperature variations. This feature is particularly beneficial for outdoor applications or equipment exposed to harsh climatic conditions. Additionally, with a rated voltage range from 50V to 1000V, these capacitors can be employed in low to high-voltage circuits, making them ideal for a broad spectrum of electronic devices.

The Dissipation Factor of <=0.1 indicates that the CL Metallizing Film Capacitor has minimal energy loss, which translates to efficient operation and a stable performance over time. This low dissipation factor is crucial in applications where energy conservation and longevity of the capacitor are of paramount importance, such as in power supply filters, audio circuits, and high-frequency data processing.

Application occasions for the CL Metalized Film Capacitor include power management in consumer electronics, where consistent and reliable power delivery is needed. They are also extensively used in the automotive industry, where the ability to withstand temperature fluctuations and voltage variations is vital. In the realm of industrial electronics, these capacitors are essential in motor run applications, power inverters, and LED lighting systems, offering the stability and endurance required for continuous operation.

Scenarios such as audio equipment manufacturing also benefit from the use of the CL Metalized Polypropylene Film Capacitor. The product's attributes ensure high-fidelity signal transmission, minimal harmonic distortion, and excellent frequency characteristics, making them indispensable in high-quality audio applications. Additionally, their use in renewable energy systems, such as solar inverters and wind turbines, underscores their adaptability and reliability in power regulation tasks under variable environmental conditions.

In conclusion, the CL Metallized Polypropylene Film Capacitor is a versatile and durable component that is suitable for a wide array of applications. Its robust design, capable of withstanding harsh temperatures and voltages, combined with a low dissipation factor, makes it a preferred choice for engineers and designers looking to build reliable and efficient electronic systems.

Customization:

Brand Name: CL

Place of Origin: CHINA

Operating Temperature: -40°C~+85°C

Product Name: Metallized Polypropylene Film Capacitor

Size: Diameter: 6.3mm-18mm; Length: 6.3mm-20mm

Insulation Resistance: >=10000MΩ

Lead Type: Radial, Axial

Explore the high-quality performance of our CL brand Metallizing Polypropylene Film Capacitor, designed to deliver reliable and stable electrical performance. Manufactured in CHINA, our Metalized Polypropylene Film Capacitor operates effectively within a temperature range of -40°C to +85°C. Available in a variety of sizes with diameters ranging from 6.3mm to 18mm and lengths from 6.3mm to 20mm, our capacitors are built to fit your specific requirements. The Metallized Polypropylene Capacitor boasts an impressive insulation resistance of >=10000MΩ, ensuring excellent dielectric strength. Whether you need radial or axial leads, we provide the customization to meet your circuit design needs.

Support and Services:

The Metallized Polypropylene Film Capacitor is designed with modern technology to ensure high performance and reliability for a wide range of applications. Our technical support and services are tailored to provide comprehensive assistance to our customers, ensuring optimal use of our product.

Technical Support Services:

• Product Consultation - Our team offers expert advice on capacitor selection, application, and integration, ensuring you choose the right product for your needs.
• Troubleshooting Assistance - If you encounter any issues with our capacitors, our skilled technicians are available to help diagnose and solve problems quickly and efficiently.
• Installation Guidance - We provide detailed instructions and support for the proper installation of our capacitors to maximize their performance and lifespan.
• Performance Optimization - Our support includes tips and best practices to help you optimize the performance of your capacitors in various operating conditions.

Services:

• Warranty Service - Our capacitors are backed by a comprehensive warranty, ensuring peace of mind and protection against manufacturing defects.
• Product Training - We offer training sessions to help customers understand our product's features, benefits, and proper handling to ensure safe and efficient use.
• Quality Assurance - Each capacitor undergoes rigorous testing to meet high-quality standards, guaranteeing reliable performance.
• After-Sales Support - Our commitment to customer satisfaction extends beyond the purchase, with dedicated after-sales support to address any subsequent questions or concerns.

Please refer to the user manual for detailed product specifications, safety instructions, and maintenance guidelines to ensure the best experience with our Metallized Polypropylene Film Capacitor.

Packing and Shipping:

The Metallized Polypropylene Film Capacitor is carefully sealed in anti-static packaging to ensure safe delivery and to preserve the integrity of the product. The packaging is designed to protect the capacitors from moisture, dust, and electrostatic discharge.

Each capacitor is individually packaged before being placed into a larger, durable carton for bulk shipping. The carton is clearly labeled with the product type, specifications, quantity, and handling instructions to ensure proper transport and easy identification upon receipt.

To further secure the product during transit, the carton is cushioned with packing material to prevent movement and potential damage from shocks and vibrations. The outer package is sealed with tamper-evident tape, providing an additional layer of security.

All packages are shipped with a detailed packing list and a certificate of compliance. We ensure that our shipping methods comply with industry standards, and we offer various shipping options to meet our customers' delivery needs and timelines.

FAQ:

Q1: What is a Metallized Polypropylene Film Capacitor used for?

A1: Metallized Polypropylene Film Capacitors by CL are typically used for high-frequency and high-stability applications, such as in power supplies, lighting ballasts, and as snubber capacitors in high-voltage applications. They are well-regarded for their low dielectric losses, high insulation resistance, and long-term stability.

Q2: Can CL Metallized Polypropylene Film Capacitors be used for audio applications?

A2: Yes, CL Metallized Polypropylene Film Capacitors are often used in audio circuits due to their excellent electrical characteristics, which contribute to better signal integrity and sound quality. They can be found in crossover networks, signal coupling, and decoupling applications.

Q3: What are the operating temperature ranges for the CL Metallized Polypropylene Film Capacitors?

A3: The operating temperature range for CL Metallized Polypropylene Film Capacitors typically varies with the specific model but generally falls within -40°C to +85°C, ensuring reliable performance across a wide range of environmental conditions.

Q4: Are CL Metallized Polypropylene Film Capacitors environmentally friendly?

A4: CL is committed to environmental responsibility, and as such, their Metallized Polypropylene Film Capacitors are designed to be RoHS compliant, minimizing the use of hazardous substances in their construction. Additionally, the capacitors are manufactured in China with adherence to environmental management standards.

Q5: How do I choose the right voltage rating for a CL Metallized Polypropylene Film Capacitor?

A5: The voltage rating you need depends on the application. It is important to choose a capacitor with a voltage rating higher than the maximum voltage that will be applied to it in the circuit to avoid capacitor damage. Capacitors may also have different voltage ratings for AC and DC applications, so ensure you are looking at the correct rating. Check the product datasheet or consult with a CL technical support representative for guidance.
