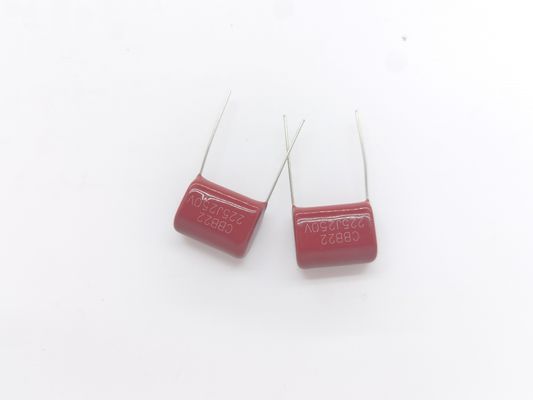

Polypropylene Capacitor 50V-1000V 0.01uF-2.2uF -40.C~ 85.C Metallized Film

Product Description:

The Metallized Polypropylene Film Capacitor represents a leap forward in capacitor technology, catering to the demands of sophisticated electronic applications. This capacitor is a prime example of how modern manufacturing techniques have refined the ability to control electrical characteristics with precision. The product is designed to serve a multitude of applications such as power supplies, automotive electronics, and various industrial systems, making it a versatile component in any high-quality electronic equipment.

At the heart of the Metallized Polypropylene Film Capacitor is its outstanding insulation resistance, which is equal to or greater than 10,000 MΩ. This high insulation resistance is crucial for maintaining capacitor integrity and performance over time, ensuring that leakage currents are minimized and energy efficiency is maximized. This feature is particularly beneficial in applications where long-term reliability is paramount.

The physical configuration of the capacitor has been optimized for a wide range of circuit boards and devices with lead spacing options from 2.5mm to 10mm. This flexibility in lead spacing allows for easier integration into various designs, accommodating both compact circuits and those requiring more spread-out component placement. This adaptability contributes to the Metallized Polypropylene Film Capacitor's suitability for diverse applications, from the compact electronics found in automotive environments to the more spacious layouts typical in industrial machinery.

The Metallized Film Capacitor's dissipation factor is another critical parameter, and with a value of less than or equal to 0.1, it shows minimal energy loss during operation. A low dissipation factor is indicative of the capacitor's efficient performance, as it ensures that energy is not wasted as heat, thereby improving the overall energy profile of the electronic system. This efficiency is especially important in power supply applications where energy conservation and heat minimization are key considerations.

Capacitance tolerance is another important aspect of capacitor performance. The Polypropylene Film Capacitor offers a capacitance tolerance of +/-5%, which provides a balance between precision and flexibility. This tolerance level is suitable for a vast array of electrical circuits, ensuring that the capacitor will function as expected within a system without causing significant deviations from the desired performance.

The use of polypropylene as the dielectric material in the Metallizing Film Capacitor is a decisive factor in its high performance. Polypropylene offers excellent electrical characteristics, such as low dielectric absorption and high dielectric strength, which contribute to the capacitor's reliability and longevity. Moreover, the metallization process further enhances these properties, leading to a component that not only meets but exceeds the stringent demands of modern electronic systems.

Applications in the power supply sector benefit significantly from the Metallized Polypropylene Film Capacitor's ability to handle rapid charge and discharge cycles, making it a key component in smoothing and filtering circuits. In the automotive industry, the capacitor's robustness and stable performance under varying environmental conditions make it an essential component for vehicle electronics that must endure challenging operating environments. Furthermore, industrial applications value the capacitor's long-term stability and durability, which are critical in systems requiring consistent performance over extended periods.

In summary, the Metallized Polypropylene Film Capacitor is a high-performance component that combines excellent insulation resistance, suitable lead spacing, low dissipation factor, and precise capacitance tolerance. Its robustness and versatility make it an ideal choice for power supply circuits, automotive electronics, and industrial systems. With its polypropylene dielectric and metallized film construction, this capacitor stands out as a reliable and efficient solution for advanced electronic applications.

Features:

• Product Name: Metallized Polypropylene Film Capacitor
• Package Type: Tape And Reel
• Mounting Type: Through-hole
• Rated Voltage: 50V-1000V
• Size: Diameter: 6.3mm-18mm; Length: 6.3mm-20mm
• Key Feature: Metallizing Polypropylene Capacitor
• Key Feature: Metallizing Polypropylene Film Capacitor
• Key Feature: Metallizing Film Capacitor

Technical Parameters:

Applications:

The CL brand Metallized Polypropylene Film Capacitor, originating from CHINA, is a crucial component in various electronic applications due to its superior electrical characteristics. The metallizing polypropylene capacitor is designed to operate within a range of 50V to 1000V, making it versatile for numerous electrical circuits. With its compact size, varying from a diameter of 6.3mm to 18mm and a length of 6.3mm to 20mm, it can be easily integrated into space-constrained designs. The capacitance values offered range from 0.01uF to 2.2uF, catering to a broad spectrum of electronic requirements.

One of the primary application occasions for the CL Metallized Polypropylene Capacitor is within power supply units. These capacitors are employed to improve power factor, reduce harmonic distortion, and provide voltage stabilization in both linear and switch-mode power supplies. The high-rated voltage and stable capacitance make this capacitor suitable for smoothing and filtering applications, ensuring a steady and reliable power supply to critical components.

In the automotive industry, these metalized film capacitors are integral to the performance and reliability of electronic control units, infotainment systems, and powertrain components. The robustness of the CL brand capacitors, combined with their ability to withstand temperature variations and electrical disturbances, makes them an ideal choice for automotive applications where reliability is paramount.

The industrial sector also benefits greatly from the use of CL Metallized Polypropylene Film Capacitors. Their application extends to motor run and motor start circuits, lighting ballasts, and energy storage in renewable energy systems. The capacitors’ high precision and stability contribute to the efficient operation of heavy-duty industrial machinery and equipment, minimizing downtime and maintenance costs.

For ease of integration into automated production lines, these capacitors come in a Tape and Reel package type. This packaging facilitates efficient placement by pick-and-place machines, streamlining the manufacturing process for electronic devices. Whether it's for intricate circuit boards or heavy-duty industrial applications, the CL brand's metallized polypropylene capacitors are a reliable and high-quality choice that engineers and designers trust.

Customization:

Brand Name: CL

Place of Origin: CHINA

Package Type: Tape And Reel

Operating Temperature: -40°C~+85°C

Product Name: Metallized Polypropylene Film Capacitor

Lead Spacing: 2.5mm-10mm

Mounting Type: Through-hole

Explore our extensive range of Metallized Film Capacitors, designed with precision for electronics enthusiasts and professionals alike. Our Metallizing Polypropylene Capacitor ensures stability and longevity, making it a preferred choice for various applications. Discover the reliability of our Metallizing Film Capacitor, crafted meticulously to provide consistent performance under challenging conditions.

Support and Services:

The Metallized Polypropylene Film Capacitor is designed for high performance and reliability. Our technical support team provides a range of services to ensure that your experience with our product is seamless and satisfactory. We offer comprehensive guidance on product selection, installation, operation, and troubleshooting. Our support services also include product-specific documentation, FAQs, and access to our knowledge base for quick resolution of common issues. For more complex or technical inquiries, our dedicated team of experts is available to provide in-depth assistance and advice. Please refer to our support portal for self-service options or to submit a support ticket for personalized assistance.

Packing and Shipping:

The Metallized Polypropylene Film Capacitor is packaged securely in anti-static material to prevent any electrical charges during handling. Each capacitor is individually encased to ensure protection against physical damage and environmental factors. The packaging also includes clear labeling with the product specifications, handling instructions, and a barcode for inventory management.

For shipping, the capacitors are placed in sturdy, corrugated boxes that are designed to withstand the rigors of transport. The boxes are sealed with heavy-duty packing tape and marked with the appropriate shipping labels, including fragile item warnings and directional arrows to ensure the package is handled correctly. Inside the box, additional cushioning materials are used to prevent movement and absorb shock during transit.

Prior to dispatch, each package is inspected to confirm that it meets all quality and safety standards. The shipment is then handed over to a reliable courier service, with a tracking number provided to the customer for convenience and peace of mind. We take great care to ensure that your Metallized Polypropylene Film Capacitor arrives in perfect condition and ready for use.

FAQ:

Q1: What is the brand name of the Metallized Polypropylene Film Capacitor?

A1: The brand name of the Metallized Polypropylene Film Capacitor is CL.

Q2: Where are CL Metallized Polypropylene Film Capacitors manufactured?

A2: CL Metallized Polypropylene Film Capacitors are manufactured in China.

Q3: What are the typical applications for CL Metallized Polypropylene Film Capacitors?

A3: CL Metallized Polypropylene Film Capacitors are commonly used in AC power applications, such as motor run, power factor correction, and lighting circuits, as well as in high-frequency and DC circuits for snubber, coupling, and decoupling purposes.

Q4: Can CL Metallized Polypropylene Film Capacitors be used in high-temperature environments?

A4: While CL Metallized Polypropylene Film Capacitors are designed to withstand certain temperature ranges, it's important to refer to the specific product datasheet for the maximum operating temperature to ensure the capacitor meets the requirements of your application.

Q5: Are CL Metallized Polypropylene Film Capacitors suitable for audio applications?

A5: Yes, CL Metallized Polypropylene Film Capacitors are often used in audio applications due to their low dielectric absorption and low ESR (Equivalent Series Resistance), which contribute to high-quality sound performance.
