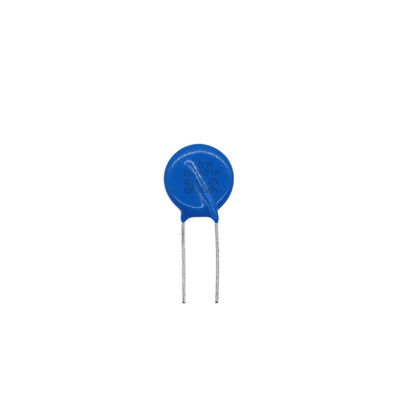

6V-1500V Metal Oxide Voltage Suppressor For SMD/DIP Mounting Surge Protection

Product Description:

Our Metal Oxide Varistor is designed to operate in extreme temperatures, with an operating range of -55℃ to +125℃. This makes it ideal for use in a variety of environments, from industrial settings to outdoor applications. Additionally, our varistor has a low leakage current of ≤0.1mA, ensuring that it won't cause any additional damage or interference to your electronic devices.

Our Metal Oxide Varistor is also highly durable, with a high insulation resistance of ≥1000MΩ. This ensures that it will last for a long time and provide reliable protection to your devices. It comes in both SMD and DIP packages, making it easy to integrate into your existing electronic systems.

Overall, our Metal Oxide Varistor is an excellent choice for anyone looking for a reliable and effective metal-oxide-voltage-suppressor. With its wide voltage range, automatic-voltage-regulation, and durable design, it is sure to provide excellent protection to your electronic devices for years to come.



Features:

• Product Name: Metal Oxide Varistor
• Power Rating: 0.5W-10W
• Type: Varistor
• Operating Temperature: -55℃ To +125℃
• Voltage Range: 6V-1500V
• Insulation Resistance: ≥1000MΩ

This product is a type of Voltage-Dependent-Resistor (VDR) also known as a Transient-Voltage-Suppressor (TVS) or Metal-Oxide-Voltage-Suppressor (MOV) that can protect electronic circuits from damage caused by voltage spikes.



Technical Parameters:

Technical Parameter	Value
Product Name	Metal Oxide Varistor
Material	Metal Oxide
Package	SMD/DIP
Power Rating	0.5W-10W
Resistance Tolerance	±20%
Operating Temperature	-55℃ To +125℃
Capacitance Range	1pF-1000pF
Leakage Current	≤0.1mA
Dissipation Factor	≤0.2
Aging Rate	≤1%

This Metal Oxide Varistor is a transient-voltage-suppressor and voltage-surge-protector, acting as a high-voltage-resistor. It is designed to protect electronic circuits from voltage surges and transients.



Applications:

These varistors are designed to operate in a wide range of applications, including power supplies, industrial equipment, consumer electronics, and automotive electronics. They are available in SMD and DIP packages, making them suitable for use in various devices.

With a dielectric strength of ≥3000VAC, CL Metal Oxide Varistors are capable of withstanding high voltage surges. They are highly reliable and offer exceptional performance under extreme conditions.

The power rating of these varistors ranges from 0.5W to 10W, making them suitable for use in both low and high power applications. The aging rate of CL Metal Oxide Varistors is ≤1%, ensuring long-term stability and reliability.

CL Metal Oxide Varistors are ideal for use in power supply protection, surge protection, overvoltage protection, and other applications where transient voltage surges can cause damage to sensitive electronic components. They are also suitable for use in telecommunications equipment, lighting fixtures, and motor control circuits.

Whether you need a high-voltage-resistor for a specific application or a general-purpose transient-voltage-protector, CL Metal Oxide Varistors are a reliable and cost-effective choice.

Choose CL Metal Oxide Varistors for their exceptional performance, reliability, and versatility. Protect your electronic devices with these high-quality metal-oxide-varistors.



Customization:



Support and Services:

The Metal Oxide Varistor product technical support and services include:

• Expert technical assistance with product selection and application
• Testing and quality assurance services
• Failure analysis and troubleshooting support
• Customized design and engineering services
• Training and educational resources on Metal Oxide Varistor products
• Warranty and repair services



Packing and Shipping:

Product Packaging:

• The Metal Oxide Varistor product is packaged in a sturdy, cardboard box.
• The box is labeled with the product name, quantity, and important safety information.
• The product is securely placed inside the box with foam padding to prevent any damage during shipping.

Shipping:

• The Metal Oxide Varistor product is shipped via standard ground shipping.
• Shipping times may vary depending on the destination.
• Customers will receive a confirmation email with tracking information once the product has shipped.
• For international orders, please contact customer service for shipping details.

 In order to avoid damage to other equipment caused by fire or deterioration caused by MOV, please refer to and abide by the following principles:
1) When the varistor flows into high current or high voltage, the MOV itself may be damaged, heat up, smoke, fire and burst.
In order to avoid this situation, fuses or breakers can be installed at both ends of the MOV or both ends of the power supply;
The fuses of the following specifications are for reference only:
Diameter 05D 07D 10D 14D 20D
Rated current of fuse 1-2A 2-3A 3-5A 3-10A 5-15A
2) Do not let the current and energy flowing into the varistor exceed its rating.
3) The trademark names and marks of VDR products indicated are all patent applications of the company.
Customers who use or sell VDR products not expressly designated for such applications do so at their own risk.
4) All VDR products, product specifications and data are subject to change without prior notice, please make improvements. On any data table
Or any error contained in any other data table. No responsibility for inaccuracies or incompletions.
5) About the suitability of the product for a specific application. It is the customer's responsibility to confirm that the product with the characteristics described in the product specification is suitable for a particular purpose
Apply. The data provided in parametric data sheets and/or specifications may vary from application to application, and performance may vary over time
Change. All operating parameters, including typical parameters, must be provided by the customer's technical experts. Product specifications will not be expanded or
Otherwise modify the VDR Purchase Terms and Conditions, including, but not limited to, the warranties set forth therein.
6) Do not place flammable substances near the varistor.
7) Varistors can only emit a small amount of heat energy, so they are not suitable for use in equipment where there are frequent bursts of heat generation. In addition, the higher the operating environment in which the varistor is located, the smaller the proportion of heat energy it emits. Varistors can only emit a small amount of heat energy, so they are not suitable for use in equipment where there are frequent bursts of heat generation. If there is a large amount of heat acting on the varistor at the instantaneous time, it is possible that the heat energy cannot be emitted during the pulse time
The varistor is damaged.
8) When welding, please be careful not to melt the welding points and resin coatings of the varistor. Material category policy
All VDR products are hereby certified to be RoHS compliant products that comply with the definitions and standards set out in Directive 2011/65/EU of the European Parliament and of the Council
Restriction Regulation of 8 June 2011 on the Restriction of the Use of Certain Hazardous Substances in Electrical and electronic Equipment (Reach). We confirm
All VDR products comply with IEC 61249-2-21 JEDEC JS709A standards.

FAQ:

Q: What is a Metal Oxide Varistor?

A: A Metal Oxide Varistor, or MOV, is a component that protects sensitive electronic equipment by limiting high voltage surges.

Q: What is the brand name of this MOV?

A: The brand name of this MOV is CL.

Q: Where is this MOV manufactured?

A: This MOV is manufactured in China.

Q: What is the maximum energy absorption rating for this MOV?

A: The maximum energy absorption rating for this MOV is 360 joules.

Q: What is the maximum voltage rating for this MOV?

A: The maximum voltage rating for this MOV is 275 volts AC.
