Product Details:
|
| Material: | Ceramic | Amps: | FWC-1A10F |
|---|---|---|---|
| Safety Standards: | EC, CSA, UL, DIN, ROHS | Breaking Capacity: | High, 200 KA |
| Operating Class: | AR | Carton Weight: | 0.1 (kg) |
| Carton Quantity: | 10 Per Carton | ||
| Highlight: | 10 x 38 mm Ferrule fuse,Eaton Bussmann Ferrule fuse,Excellent cycling capability Ferrule fuse |
||

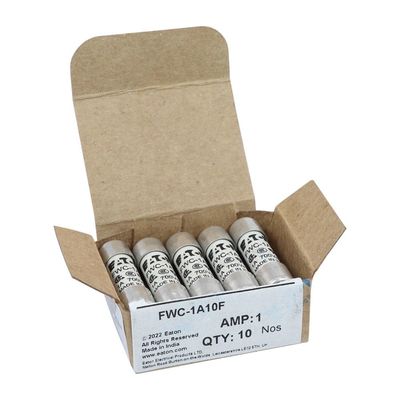

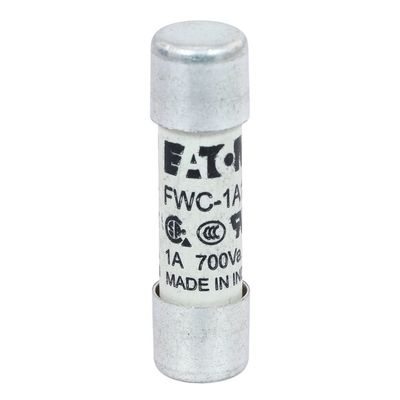

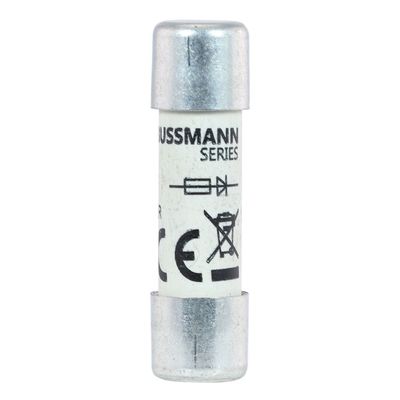

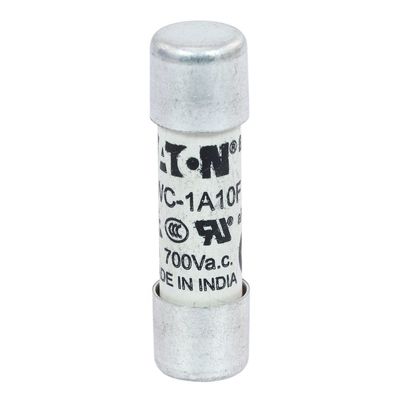

FWC 10 x 38 mm Ferrule High speed fuse links
Technical data
• Rated voltage:
• 700 V a.c./V d.c. (UL 1-4 A)
• 600 V a.c. (UL 6-32 A)
• 700 V d.c. (UL 6-25 A)
• Rated current: 1 - 32 A
• Breaking capacity:
• 200 kA RMS Sym. at 600 V a.c. for 6-32 A
• 200 kA RMS Sym. at 700 V a.c. for 1-4 A
• 10 kA at 700 V d.c. for 1-25 A
• Operating class: aR
Agency information
| CE |
| UL Recognised JFHR8.E91958 for 6-32 A |
| CSA Component acceptance class 1422-30 (53787) for 6-32 A |

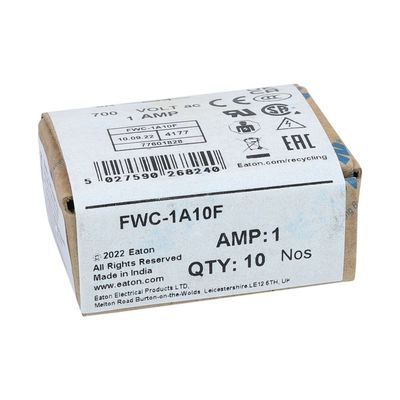

Carton quantity
• 10 per carton
Carton weight
• 0.1 (kg) per carton
Electrical characteristics
Total clearing I2
t
The total clearing I2
t at rated voltage and at a power factor of 15
percent are given in the electrical characteristics. For other voltages, the clearing I2
t is found by multiplying by correction factor, K,
given as a function of applied working voltage, Eg
, (RMS).
Arc voltage
This curve gives the peak arc voltage, UL
, which may appear
across the fuse during its operation as a function of the applied
working voltage, Eg
, (RMS) at a power factor of 15 percent.
Dimensions - mm (in)
Cut-off curves
