Product Details:
|
| Material: | Ceramic | Amps: | 5A |
|---|---|---|---|
| Safety Standards: | EC, CSA, UL, DIN, ROHS | Breaking Capacity: | High, 200 KA |
| Operating Class: | AR | Carton Weight: | 0.1 (kg) |
| Carton Quantity: | 10 Per Carton | ||
| Highlight: | 6*32mm Ferrule Fuse links,FWH-005A Ferrule Fuse links,DC Common Bus Ferrule Fuse links |
||

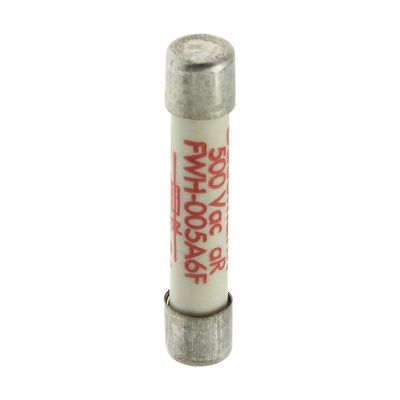

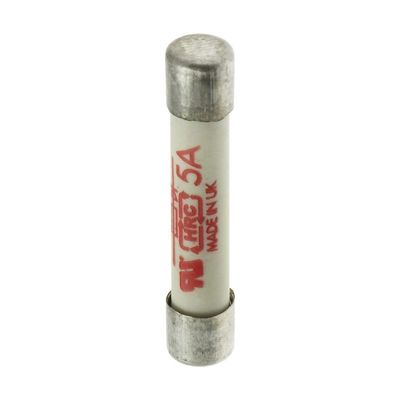

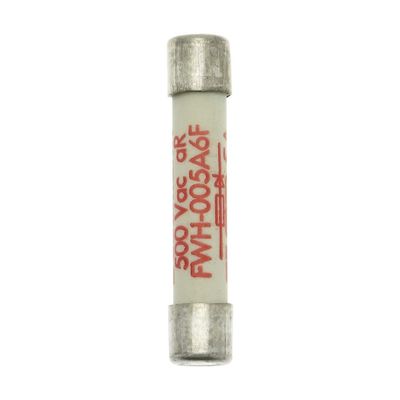

Ferrule style high speed fuse links for the protection of DC common bus,
DC drives, power converters/rectifiers and reduced rated voltage starters.
Technical data
• Rated voltage:
• 500 V a.c. (UL)
• 1000 V a.c. (UL, 2 A only)
• 600 V d.c. (UL, 4 A and 5 A only)
• Rated current: 0.25 A to 30 A
• Breaking capacity:
• 50 kA (0.25 A to 20 A)
• 20 kA (25 A to 30 A, tested at PF = 76%)
• 50 kA at 600 V d.c. (UL 2 A and 5 A only)
• Operating class: aR
Agency information
| CE |
| UL Recognised JFHR8.E91958 for 6-32 A |
| CSA Component acceptance class 1422-30 (53787) for 6-32 A |

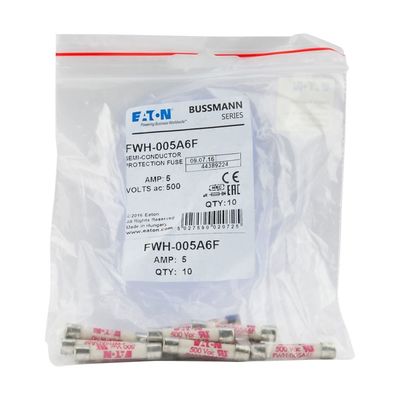

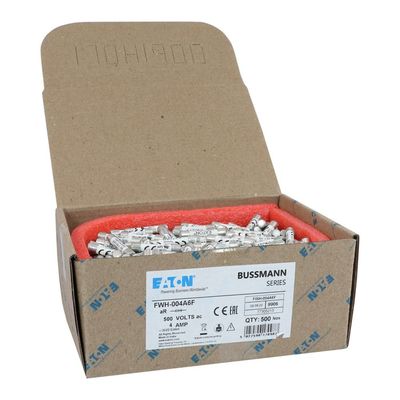

Carton quantity
• 10 per carton
Carton weight
• 0.1 (kg) per carton
