| Material: | Metal Oxide | Power Rating: | 0.5W-10W |
|---|---|---|---|
| Package: | SMD/DIP | Mounting Type: | Through-Hole |
| Dielectric Strength: | ≥3000VAC | Resistance Tolerance: | ±20% |
| Insulation Resistance: | ≥1000MΩ | Dissipation Factor: | ≤0.2 |

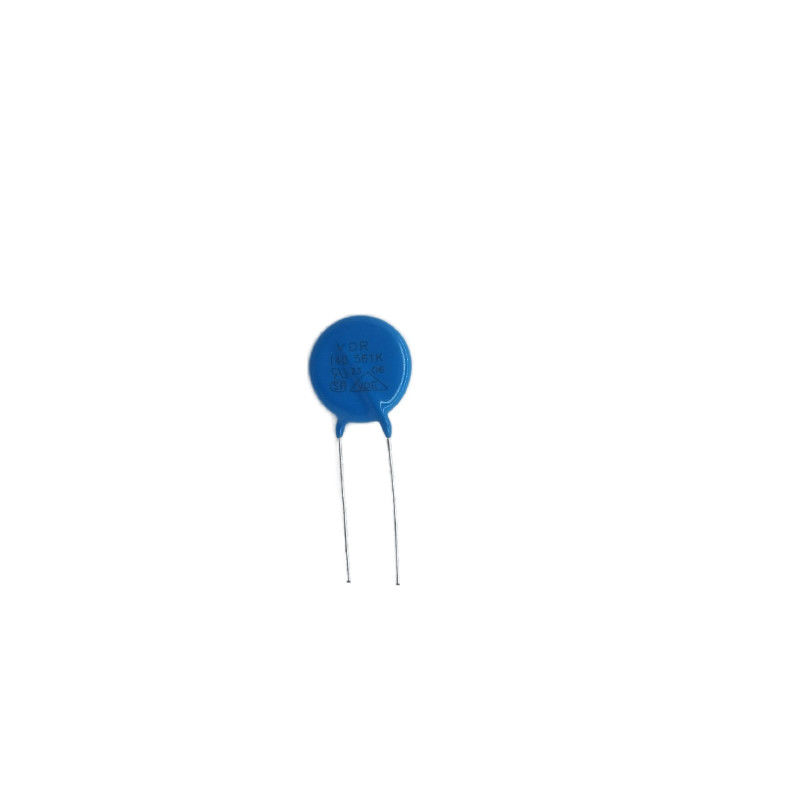

| Highlight: | 6KV Metal Oxide Varistor,Lightning Struck Metal Oxide Varistor,20D561K Metal Oxide Varistor |
||
The MOV is a through-hole component that is easy to install on a printed circuit board. It has a power rating of 0.5W to 10W, which makes it suitable for use in a wide range of applications. The MOV has a low dissipation factor of ≤0.2, which means that it is highly efficient at conducting voltage surges away from sensitive electronic components. It also has a low leakage current of ≤0.1mA, which ensures that it does not degrade the performance of the electronic system.
The Metal Oxide Varistor is an essential component for transient-voltage-protection in electronic devices. It provides reliable protection against voltage surges and helps to prevent damage to sensitive electronic components. In addition to its protective function, the MOV is also a cost-effective solution for over-voltage protection, which makes it an ideal choice for a wide range of applications. It is a versatile component that can be used in a variety of electronic devices, including power supplies, communication equipment, and other systems that require over-voltage protection.
In summary, the Metal Oxide Varistor is a reliable and efficient transient-voltage-protector that provides over-voltage protection for sensitive electronic equipment. It is a through-hole component that is easy to install and has a power rating of 0.5W to 10W. The MOV has a low dissipation factor of ≤0.2 and a low leakage current of ≤0.1mA, which ensures that it is highly efficient at conducting voltage surges away from sensitive electronic components. Overall, the Metal Oxide Varistor is an essential component for any electronic system that requires over-voltage protection.
| Attribute | Value |
|---|---|
| Mounting Type | Through-Hole |
| Package | SMD/DIP |
| Insulation Resistance | ≥1000MΩ |
| Voltage Range | 6V-1500V |
| Aging Rate | ≤1% |
| Capacitance Range | 1pF-1000pF |
| Material | Metal Oxide |
| Operating Temperature | -55℃ To +125℃ |
| Leakage Current | ≤0.1mA |
| Power Rating | 0.5W-10W |
The VDR Metal Oxide Varistors are commonly used as transient-voltage-suppressors in electronic circuits. They are designed to absorb high voltage transients and protect sensitive components from damage. The varistors achieve this by exhibiting a high resistance at low voltage levels and a low resistance at high voltage levels. This allows them to effectively clamp the voltage to a safe level and protect the device from harm.
The VDR Metal Oxide Varistors are also used as transient-voltage-protectors in a variety of applications. They are often used in power supply and AC line applications to protect against voltage surges and spikes. The varistors can be used in both SMD and DIP packages, making them versatile and easy to use in a variety of electronic designs. The through-hole mounting type also makes them easy to install and secure in place.
The VDR Metal Oxide Varistors have a resistance tolerance of ±20%, ensuring reliable and consistent performance. The varistors are made from high-quality metal oxide materials and are designed for long-lasting durability. They are ideal for use in a wide range of electronic devices, including power supplies, surge protectors, and motor control circuits.
Product Name: Metal Oxide Varistor
Brand Name: VDR
Model Number: 7D/10D/14D/20D
Place of Origin: CHINA
Dielectric Strength: ≥3000VAC
Aging Rate: ≤1%
Resistance Tolerance: ±20%
Insulation Resistance: ≥1000MΩ
This product is an Over-Voltage-Protection-Device, also known as a Transient-Voltage-Suppressor or Transient-Voltage-Protector. Our customization services can tailor the product to meet your specific needs.
The Metal Oxide Varistor (MOV) is an electronic component that protects sensitive electronic devices from voltage spikes and surges. Our technical support team is available to assist with any questions or concerns regarding the installation and operation of the MOV.
In addition, we offer a range of services to ensure the optimal performance and longevity of the MOV, including:
Our team of experienced professionals is dedicated to providing exceptional support and services to our customers.
Product Packaging:
Shipping:
Here are some frequently asked questions about the VDR metal oxide varistor:
Q: What is a VDR metal oxide varistor?
A: A VDR metal oxide varistor is a device that is used to protect electronic circuits from voltage surges or spikes. It is made of a metal oxide material that has a non-linear resistance, which means that it has a high resistance at low voltages and a low resistance at high voltages.
Q: What are the different models of VDR metal oxide varistors?
A: VDR metal oxide varistors are available in different models, including 7D, 10D, 14D, and 20D. The number refers to the maximum voltage that the varistor can withstand before it starts conducting current.
Q: Where are VDR metal oxide varistors made?
A: VDR metal oxide varistors are made in China.
Q: What is the operating temperature range of VDR metal oxide varistors?
A: The operating temperature range of VDR metal oxide varistors is -40°C to +85°C.
Q: How do I select the right VDR metal oxide varistor for my application?
A: To select the right VDR metal oxide varistor for your application, you need to consider the maximum voltage that the varistor needs to withstand, the maximum current that will flow through the varistor, and the energy that the varistor needs to absorb. You should also consider the operating temperature range and the size and shape of the varistor.
