Product Details:
|
| Highlight: | AEM Components Surface mount fuse |
||
|---|---|---|---|
Typical Applications:
· Lighting: Ballast, LED Drivers
· Power: Chargers, Adapters, Power Boards
· Medical Equipment
· Indutrial Equipment
· White Goods
|
Fuse Type
|
|
|
|
Current Rating (Amps)
|
MF2410F1.600TM
|
|
|
Voltage Rating - AC
|
250 V
|
|
|
Response Time
|
Fast Blow
|
|
|

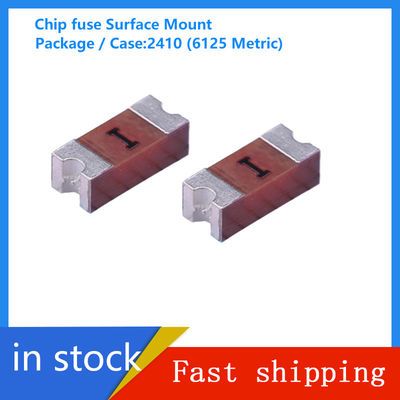

Package / Case
|
|
|
|
Breaking Capacity @ Rated Voltage
|
100A
|
|
|
Melting I²t
|
3.0
|
|
|
Approval Agency
|
CE, CQC, cURus, KC, PSE, TUV, VDE
|
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
|
Color
|
-
|
|
|
Size / Dimension
|
0.240" L x 0.098" W x 0.085" H (6.10mm x 2.49mm x 2.16mm)
|
|
|
DC Cold Resistance
|
0.038 Ohms
|
