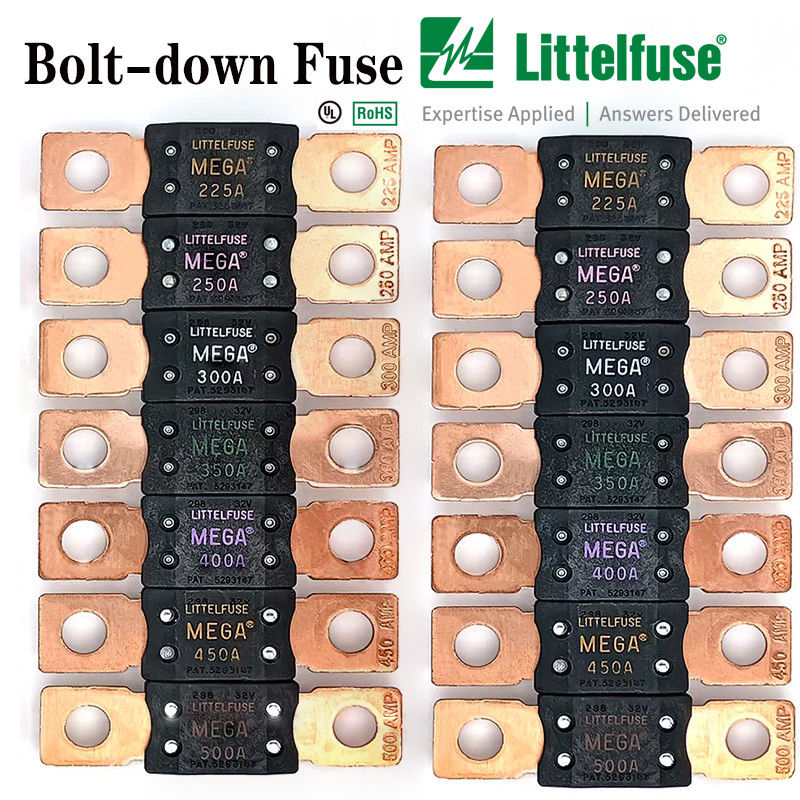

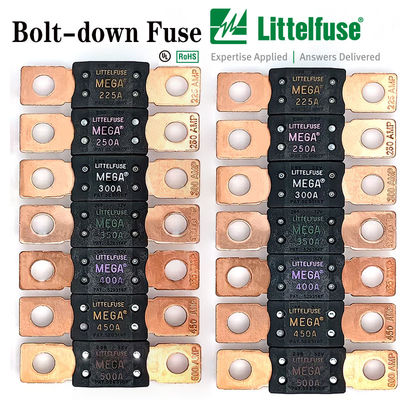

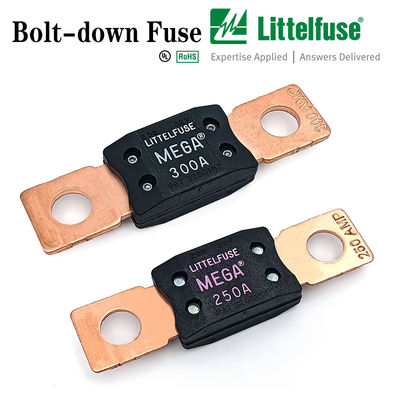

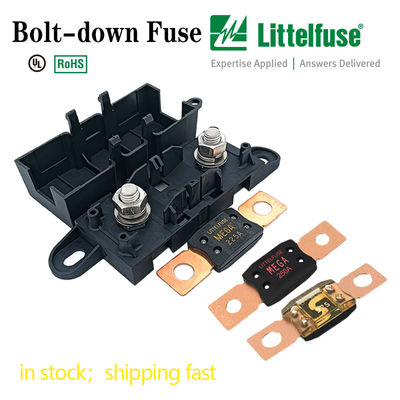

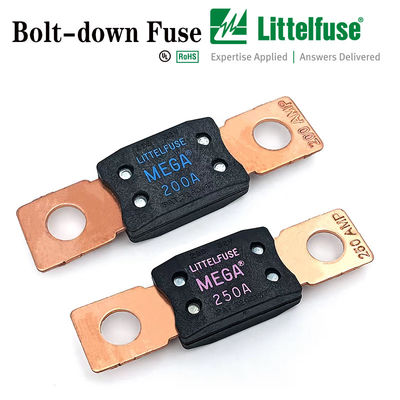

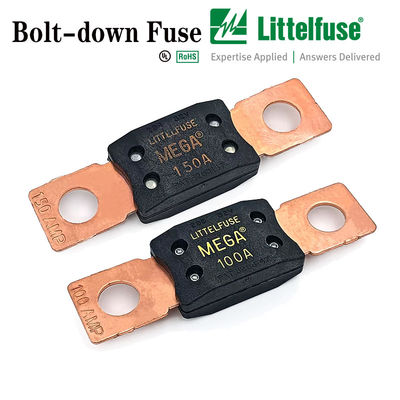

MEGA littelfuse Electric Vehicle Fuses for Heavy Duty Applications 0298080.ZXEH

Large Image : MEGA littelfuse Electric Vehicle Fuses for Heavy Duty Applications 0298080.ZXEH

Product Details:

Place of Origin:	CHIANA
Brand Name:	littelfuse
Certification:	E71747
Model Number:	MAGE

Payment & Shipping Terms:

Minimum Order Quantity:	500
Price:	3USD
Packaging Details:	200x200x200cm
Payment Terms:	T/T
Supply Ability:	300000

Contact Now

MEGA littelfuse Electric Vehicle Fuses for Heavy Duty Applications 0298080.ZXEH

Description

Highlight:

MEGA Electric Vehicle Fuses

0298080.ZXEH Electric Vehicle Fuses

Heavy Duty Electric Vehicle Fuses

MEGA littelfuse Electric Vehicle Fuses for Heavy Duty Applications 0298080.ZXEH 0
Description

MEGA® SLO-BLO® automotive fuses employ diffusion pill technology

to provide time-delay circuit protection. MEGA fuses are ideal for

use on batteries, alternators, and heavy gauge wire harnesses that

experience large inrushes of current. The MEGA SLO-BLO fuses with

ratings of 40 A to 250 A ensure continuous current flow. Use MEGA

fuses with ratings of 300 A to 500 A only for short circuit protection.
Features & Benefits

SEPCIFACATONGS

Voltage Rating: 32 V DC

Interrupting Rating: 2000 A @ 32 V DC

Recommended

Environmental Temperature:

–40 ˚C to +125 ˚C

Terminals Material: Copper (Silver plated copper available)

Housing Material: PPA-GF33HS

(U.L. 94 Flammability rating - HB)

Clear Top Housing Material: PES (top)

(U.L. 94 Flammability rating - V0)

PPA-GF33HS (bottom)

(U.L. 94 Flammability rating - HB)

Mounting Torque M6: 8-14 Nm

Mounting Torque M8: 12-18 Nm

Comply With: ISO 8820-5

Dimensions

MEGA littelfuse Electric Vehicle Fuses for Heavy Duty Applications 0298080.ZXEH 2
