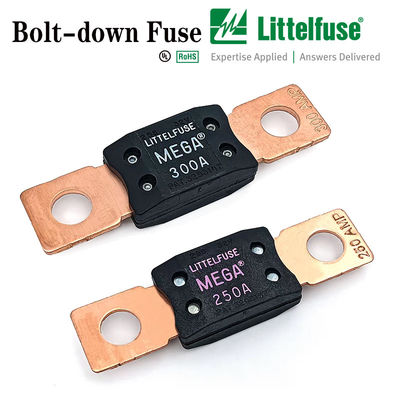

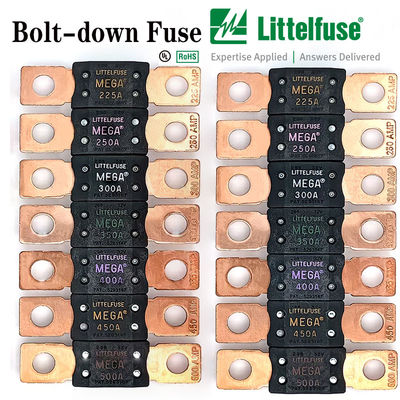

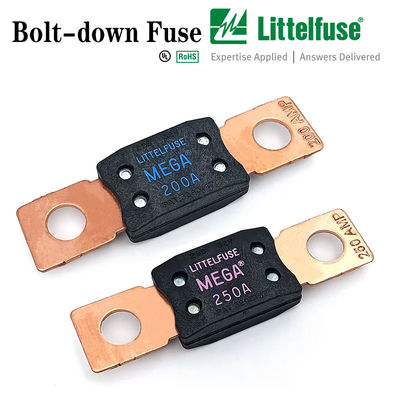

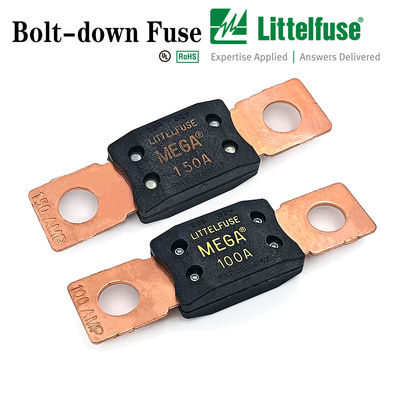

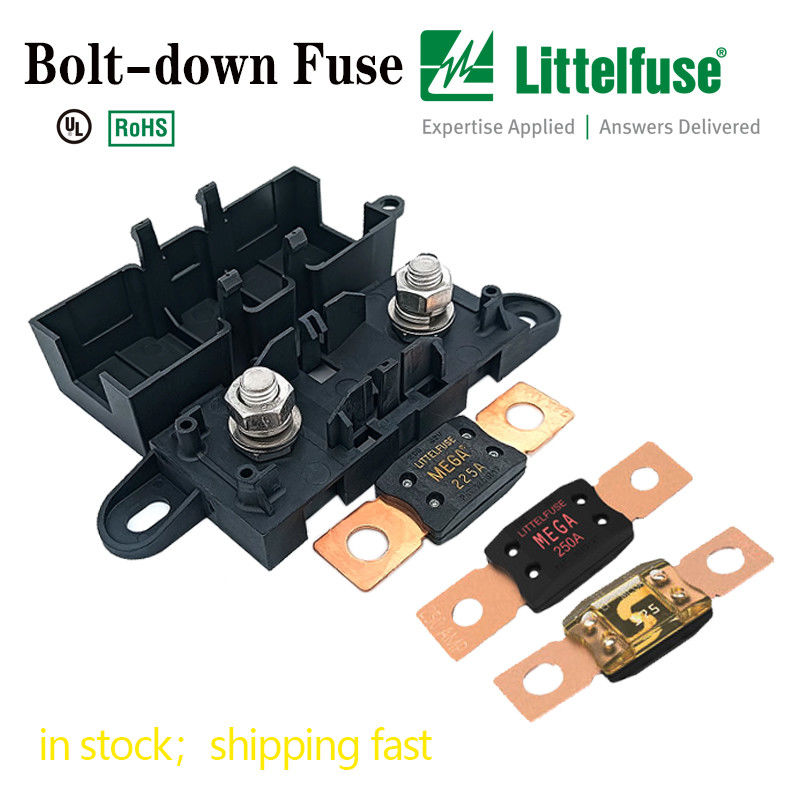

MEGA Littelfuse 0298x100.ZXEH Automotive Bolt Down Fuse Heavy Duty Rated 32V

MEGA Littelfuse 0298x100.ZXEH Automotive Bolt Down Fuse Heavy Duty Rated 32V
MEGA Littelfuse 0298x100.ZXEH Automotive Bolt Down Fuse Heavy Duty Rated 32V MEGA Littelfuse 0298x100.ZXEH Automotive Bolt Down Fuse Heavy Duty Rated 32V MEGA Littelfuse 0298x100.ZXEH Automotive Bolt Down Fuse Heavy Duty Rated 32V MEGA Littelfuse 0298x100.ZXEH Automotive Bolt Down Fuse Heavy Duty Rated 32V MEGA Littelfuse 0298x100.ZXEH Automotive Bolt Down Fuse Heavy Duty Rated 32V

Large Image :  MEGA Littelfuse 0298x100.ZXEH Automotive Bolt Down Fuse Heavy Duty Rated 32V

Product Details:
Place of Origin: CHIANA
Brand Name: littelfuse
Certification: E71747
Model Number: MAGE
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: 3USD
Packaging Details: 200x200x200cm
Payment Terms: T/T
Supply Ability: 300000
Contact Now

MEGA Littelfuse 0298x100.ZXEH Automotive Bolt Down Fuse Heavy Duty Rated 32V

Description
Highlight:

littelfuse mega automotive bolt down fuse

,

32v automotive bolt down fuse

,

littelfuse mega fuse 32v

MEGA Littelfuse 0298x100.ZXEH Automotive Bolt Down Fuse Heavy Duty Rated 32V 0
Description

MEGA® SLO-BLO® automotive fuses employ diffusion pill technology
to provide time-delay circuit protection. MEGA fuses are ideal for
use on batteries, alternators, and heavy gauge wire harnesses that
experience large inrushes of current. The MEGA SLO-BLO fuses with
ratings of 40 A to 250 A ensure continuous current flow. Use MEGA
fuses with ratings of 300 A to 500 A only for short circuit protection.
Features & Benefits
MEGA Littelfuse 0298x100.ZXEH Automotive Bolt Down Fuse Heavy Duty Rated 32V 1

SEPCIFACATONGS

Voltage Rating: 32 V DC
Interrupting Rating: 2000 A @ 32 V DC
Recommended
Environmental Temperature:
–40 ˚C to +125 ˚C
Terminals Material: Copper (Silver plated copper available)
Housing Material: PPA-GF33HS
(U.L. 94 Flammability rating - HB)
Clear Top Housing Material: PES (top)
(U.L. 94 Flammability rating - V0)
PPA-GF33HS (bottom)
(U.L. 94 Flammability rating - HB)
Mounting Torque M6: 8-14 Nm
Mounting Torque M8: 12-18 Nm
Comply With: ISO 8820-5

Dimensions

MEGA Littelfuse 0298x100.ZXEH Automotive Bolt Down Fuse Heavy Duty Rated 32V 2




Tag:

EV Fuses,

Ceramic Car Fuse,

Battery Pack Fuse
