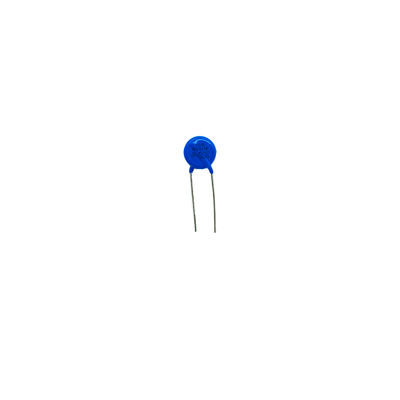

1PF-1000PF Mov Varistor 6V-1500V High Voltage Device

Product Description:

The Metal Oxide Varistor (MOV) is a high-voltage resistor device designed to protect electronic circuits from overvoltage spikes and surges. It is a critical component in many electronic devices and systems, providing reliable protection against power surges and lightning strikes.

One of the key features of the Metal Oxide Varistor is its low dissipation factor of ≤0.2, which ensures efficient energy absorption during voltage spikes. This helps to prevent damage to sensitive electronic components and ensures the long-term reliability of the protected equipment.

With an aging rate of ≤1%, the Metal Oxide Varistor maintains its performance and protective capabilities over time, offering consistent protection against transient voltage events. This reliability is essential for ensuring the continued operation of electronic systems in various applications.

The insulation resistance of the Metal Oxide Varistor is rated at ≥1000MΩ, providing effective isolation and protection against leakage currents. This high insulation resistance helps to maintain the integrity of the circuit and prevents electrical faults that could lead to system failures or safety hazards.

Furthermore, the Metal Oxide Varistor offers a dielectric strength of ≥3000VAC, ensuring reliable operation under high voltage conditions. This high dielectric strength allows the varistor to withstand voltage surges and transients without breakdown, providing robust protection for the connected equipment.

The Metal Oxide Varistor is available in both surface mount device (SMD) and dual in-line package (DIP) configurations, offering flexibility in installation and compatibility with various circuit designs. Whether integrated onto a PCB or used in a socketed application, the varistor can be easily incorporated into electronic systems for enhanced protection.

Features:

• Product Name: Metal Oxide Varistor
• Dissipation Factor: ≤0.2
• Dielectric Strength: ≥3000VAC
• Voltage Range: 6V-1500V
• Power Rating: 0.5W-10W
• Capacitance Range: 1pF-1000pF

Technical Parameters:

Applications:

Metal Oxide Varistors (MOV), also known as Metal-Oxide Voltage Suppressors or Metal-Oxide Voltage Regulators, are essential components used in various electronic devices and systems to protect against voltage spikes and surges. The VDR brand offers a range of MOV models including 7D, 10D, 14D, and 20D, all manufactured in China with high-quality metal oxide material.

These Metal Oxide Varistors from VDR are designed with a resistance tolerance of ±20% and provide insulation resistance of at least 1000MΩ, ensuring reliable performance in diverse applications. With an operating temperature range from -55℃ to +125℃, these MOVs are suitable for use in a wide range of environmental conditions.

The dielectric strength of VDR Metal Oxide Varistors is guaranteed to be at least 3000VAC, making them highly effective in protecting sensitive electronic components from power surges and fluctuations. These attributes make VDR MOVs ideal for use in scenarios where voltage regulation and protection are critical.

Product Application Occasions and Scenarios for VDR Metal Oxide Varistors include but are not limited to:

• Industrial Automation Systems: Protecting PLCs, motor drives, and control systems from voltage spikes.
• Telecommunication Equipment: Safeguarding sensitive circuits in routers, switches, and communication devices.
• Power Supplies: Ensuring stable voltage output in various power supply units.
• Consumer Electronics: Protecting TVs, computers, and other household devices from power surges.
• Renewable Energy Systems: Safeguarding solar inverters and wind turbine control systems.

Whether used in automatic voltage regulators, surge protectors, or other electronic devices, VDR Metal Oxide Varistors provide reliable overvoltage protection and ensure the longevity of connected equipment.

Customization:

Product Customization Services:

Brand Name: VDR

Model Number: 7D/10D/14D/20D

Place of Origin: CHINA

Resistance Tolerance: ±20%

Material: Metal Oxide

Power Rating: 0.5W-10W

Operating Temperature: -55℃ To +125℃

Aging Rate: ≤1%

Support and Services:

The Metal Oxide Varistor product is backed by comprehensive technical support and services to ensure optimal performance and reliability. Our team of experts is available to assist with product selection, installation guidance, troubleshooting, and any other technical inquiries you may have. Additionally, we offer maintenance services and product training to help you maximize the lifespan and efficiency of your Metal Oxide Varistors.

Packing and Shipping:

Product Packaging:

The Metal Oxide Varistor is carefully packaged in a durable cardboard box to ensure its safety during transportation. Each varistor is placed in a protective foam padding to prevent any damage or scratches. The box is sealed securely to prevent any dust or moisture from getting inside.

Shipping:

Our Metal Oxide Varistors are shipped using a reliable courier service that ensures timely delivery and safe handling of the packages. Each package is labeled with the necessary information such as product details, quantity, and handling instructions to ensure proper care during transit. We strive to deliver your varistors in perfect condition and ready for use upon arrival.

FAQ:

Q: What is the brand name of the Metal Oxide Varistor product?

A: The brand name is VDR.

Q: What are the available model numbers for the Metal Oxide Varistor?

A: The available model numbers are 7D, 10D, 14D, and 20D.

Q: Where is the Metal Oxide Varistor product manufactured?

A: The Metal Oxide Varistor is manufactured in China.

Q: What are the key features of the Metal Oxide Varistor product?

A: The Metal Oxide Varistor offers high surge current capability, fast response time, and reliable overvoltage protection.

Q: Are there different voltage ratings available for the Metal Oxide Varistor?

A: Yes, the Metal Oxide Varistor is available in various voltage ratings to suit different application requirements.
