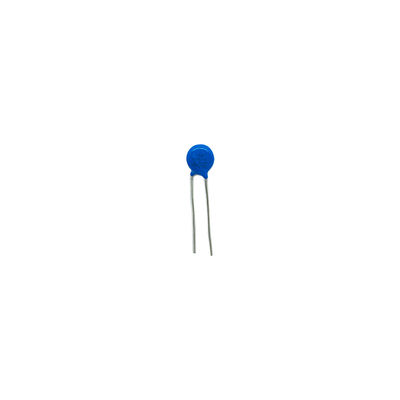

7D511K Metal Oxide Varistor Surge Protection For LED Driver Power Supply Home Appliance Control Board

Product Description:

The Metal Oxide Varistor (MOV) is a versatile Voltage-Dependent-Resistor designed to protect electronic circuits from voltage surges and transients. With a wide voltage range of 6V to 1500V, this device is suitable for various applications requiring surge protection.

Available in both SMD (Surface Mount Device) and DIP (Dual Inline Package) configurations, the MOV can be easily integrated into different circuit designs, providing flexibility and convenience during assembly.

With a power rating ranging from 0.5W to 10W, the Metal Oxide Varistor offers reliable surge protection while maintaining efficiency and performance. The high power rating ensures that the device can handle transient events without compromising the circuit's integrity.

The MOV features an Aging Rate of less than or equal to 1%, ensuring long-term stability and consistent performance over time. This attribute is crucial for applications requiring sustained surge protection and reliability.

Furthermore, the Metal Oxide Varistor has a low Leakage Current of less than or equal to 0.1mA, minimizing power consumption and ensuring the efficient operation of the protected circuit.

Overall, the Metal Oxide Varistor is a reliable and effective Transient-Voltage-Protector that offers a wide voltage range, versatile packaging options, high power rating, low aging rate, and minimal leakage current. It is an ideal solution for applications that require robust surge protection and dependable performance.

Features:

• Product Name: Metal Oxide Varistor
• Package: SMD/DIP
• Mounting Type: Through-Hole
• Type: Varistor
• Insulation Resistance: ≥1000MΩ

Technical Parameters:

Applications:

The Metal Oxide Varistor product, under the brand name VDR with model numbers 7D, 10D, 14D, and 20D, is a versatile component designed to provide high voltage protection in various electrical circuits. Originating from China, these High-Voltage-Resistors are known for their superior performance and reliability.

With a Dissipation Factor of ≤0.2, the Metal Oxide Varistors are ideal for applications where transient voltage spikes need to be suppressed effectively. Their Voltage-Dependent-Resistor characteristic allows them to act as a safeguard against overvoltage conditions, preventing damage to sensitive electronic devices.

The Dielectric Strength of ≥3000VAC ensures that these Varistors can withstand high voltage levels, making them suitable for use in power distribution systems, industrial equipment, and telecommunications infrastructure. Their Insulation Resistance of ≥1000MΩ further enhances their reliability in diverse operating environments.

Constructed from high-quality Metal Oxide material, these Varistors offer robust protection against voltage surges, ensuring the longevity and safety of connected equipment. Available in both SMD and DIP packages, they can be easily integrated into various circuit designs for efficient transient voltage protection.

Common Product Application Occasions and Scenarios for the Metal Oxide Varistor include:

- Power Supplies: Metal Oxide Varistors are commonly used in power supply units to safeguard sensitive components from voltage transients and surges, ensuring uninterrupted operation.

- Motor Drives: These Varistors are essential in motor drive circuits to protect against voltage spikes that can damage the motor control electronics, improving the overall reliability of the system.

- Surge Protection Devices: Metal Oxide Varistors are key components in surge protection devices, offering effective transient voltage protection for residential, commercial, and industrial applications.

Overall, the Metal Oxide Varistor product line from VDR serves as a reliable Transient-Voltage-Protector, providing essential overvoltage protection in a wide range of electronic and electrical systems.

Customization:

Product Customization Services for the Metal Oxide Varistor

Brand Name: VDR

Model Number: 7D/10D/14D/20D

Place of Origin: CHINA

Package: SMD/DIP

Product Name: Metal Oxide Varistor

Material: Metal Oxide

Type: Varistor

Operating Temperature: -55℃ To +125℃

Keywords: Over-Voltage-Protection-Device, Metal-Oxide-Varistor, Automatic-Voltage-Regulator

Support and Services:

Product Technical Support and Services for Metal Oxide Varistor:

- Expert technical support for installation, troubleshooting, and product usage.

- Comprehensive product documentation and guides available for reference.

- Warranty support and assistance with product replacements if necessary.

Packing and Shipping:

Product Packaging for Metal Oxide Varistor:

The Metal Oxide Varistor will be securely packed in a cardboard box with appropriate cushioning to prevent any damage during transit.

Shipping Information:

We ship our Metal Oxide Varistors through a reliable carrier service to ensure timely and safe delivery to our customers. Please provide accurate shipping details to avoid any delays.

FAQ:

Q: What is the brand name of this Metal Oxide Varistor product?

A: The brand name is VDR.

Q: What are the available model numbers for this Metal Oxide Varistor?

A: The available model numbers are 7D, 10D, 14D, and 20D.

Q: Where is this Metal Oxide Varistor product manufactured?

A: This product is manufactured in China.

Q: What type of varistor is this product?

A: This product is a Metal Oxide Varistor.

Q: What applications is this Metal Oxide Varistor suitable for?

A: This Metal Oxide Varistor is suitable for various applications including surge protection, voltage regulation, and transient suppression.
