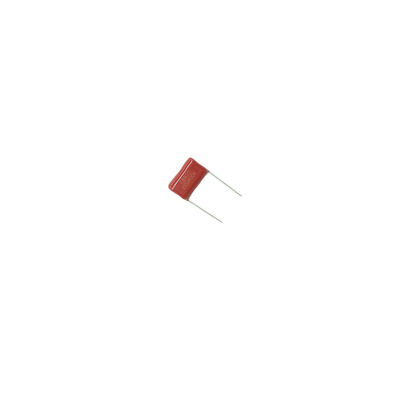

50V-1000V Rated Voltage Metallized Polypropylene Film Capacitor CBB22155J400V
Product Specifications
| Attribute |
Value |
| Size |
Diameter: 6.3mm-18mm; Length: 6.3mm-20mm |
| Lead Spacing |
2.5mm-10mm |
| Insulation Resistance |
≥10000MΩ |
| Lead Length |
5mm-50mm |
| Operating Temperature |
-40°C~+85°C |
| Package Type |
Tape And Reel |
| Dissipation Factor |
≤0.1 |
| Mounting Type |
Through-hole |
| Capacity range |
100pF~100μF (Large capacity value requires volume sacrifice) |
Product Overview
The Metallized Polypropylene Film Capacitor is a high-quality electronic component designed for various applications requiring reliable capacitance. Known for its superior performance and durability, this capacitor is a popular choice among engineers and manufacturers.
With excellent insulation resistance (≥10000MΩ) and low dissipation factor (≤0.1), this capacitor minimizes energy loss and ensures stable performance in diverse operating conditions. The Tape and Reel packaging allows for easy handling and automated assembly processes.
Key Features
- Product Name: Metallized Polypropylene Film Capacitor
- Package Type: Tape And Reel
- Dissipation Factor: ≤0.1
- Application: Power Supply, Automotive, Industrial
- Rated Voltage: 50V-1000V
Technical Parameters
| Insulation Resistance |
≥10000MΩ |
| Mounting Type |
Through-hole |
| Package Type |
Tape And Reel |
| Lead Length |
5mm-50mm |
| Application |
Power Supply, Automotive, Industrial |
| Operating Temperature |
-40°C~+85°C |
| Dissipation Factor |
≤0.1 |
| Lead Spacing |
2.5mm-10mm |
| Capacitance |
0.01uF-2.2uF |
Applications
These versatile capacitors are suitable for industrial machinery, consumer electronics, automotive applications, professional audio equipment, medical devices, and telecommunications systems. Their metalized film construction enhances resistance to temperature variations and humidity, making them suitable for harsh operating conditions.
Customization Options
We offer customization services with the following specifications:
- Brand Name: CL
- Place of Origin: China
- Capacitance: 0.01uF-2.2uF
- Size: Diameter: 6.3mm-18mm; Length: 6.3mm-20mm
Support and Services
Our team of experts provides comprehensive technical support for product selection, installation, troubleshooting, and maintenance. We also offer customization services to meet specific requirements.
Packaging and Shipping
The capacitors are carefully packaged in protective plastic casing and sturdy cardboard boxes with cushioning materials. We offer worldwide shipping with order processing within 1-2 business days and provide tracking numbers for all shipments.
Frequently Asked Questions
Q: What is the brand name of this capacitor?
A: The brand name of this capacitor is CL.
Q: Where is this metallized polypropylene film capacitor manufactured?
A: This capacitor is manufactured in China.
Q: What is the dielectric material used in this capacitor?
A: The dielectric material used in this capacitor is metallized polypropylene film.
Q: What are the typical applications of this capacitor?
A: This capacitor is commonly used in filtering, coupling, and timing circuits in various electronic devices.
Q: Is this capacitor suitable for high-frequency applications?
A: Yes, this metallized polypropylene film capacitor is suitable for high-frequency applications due to its low dielectric losses.
