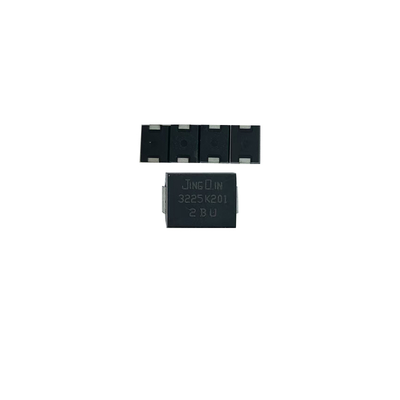

SMD MOV Varistor3225K201/3225K200V，Applying consumer electronics products，Such as TV/monitor: Protect audio and video input/output interface, power board, etc.

SMD MOV Varistor3225K201/3225K200V，Applying consumer electronics products，Such as TV/monitor: Protect audio and video input/output interface, power board, etc.
SMD MOV Varistor3225K201/3225K200V，Applying consumer electronics products，Such as TV/monitor: Protect audio and video input/output interface, power board, etc.

Large Image :  SMD MOV Varistor3225K201/3225K200V，Applying consumer electronics products，Such as TV/monitor: Protect audio and video input/output interface, power board, etc.

Product Details:
Place of Origin: CHINA
Brand Name: CL
Certification: CQC VDE UL
Model Number: 3225K201/3225K200V
Contact Now

SMD MOV Varistor3225K201/3225K200V，Applying consumer electronics products，Such as TV/monitor: Protect audio and video input/output interface, power board, etc.

Description
Energy Rating: 0.1J - 4J Termination: Tin Plated
Insulation Resistance: ≥100 Package Type: Through Hole
Type: Surface Mount Device Customize: Provide Sample Services
Technology: Metal Oxide Rohs Compliant: Yes
Varistor Voltage, V₁mA: Voltage Values ​​across The Varistor At Specified DC Current (typically 1mA). This Is The Most Important Parameter
Highlight:

SMD MOV Varistor 3225K201

,

SMD MOV Varistor 200V protection

,

SMD MOV Varistor TV monitor

SMD MOV Varistor 3225K201/3225K200V
Applying consumer electronics products, such as TV/monitor: Protect audio and video input/output interface, power board, etc.
Product Description
The SMD MOV Varistor is a Surface Mount Device Overvoltage Protection Device that offers reliable protection against overvoltage events in electronic circuits. This Surface Mount Device Metal Oxide Varistor is designed with advanced Metal Oxide technology, ensuring high performance and durability.
With an Insulation Resistance of ≥100, this SMD Metal Oxide Varistor provides excellent electrical insulation properties, contributing to the overall safety and reliability of the circuit. The lead material used in this varistor is Nickel Barrier, known for its superior conductivity and resistance to corrosion.
Operating within a storage temperature range of -40°C to +125°C, this SMD MOV Varistor is suitable for a wide range of environmental conditions, making it versatile for various applications. Its Energy Rating of 0.1J - 4J signifies its capability to absorb and dissipate energy from transient voltage surges, safeguarding sensitive electronic components.
Key Features
  • Product Name: SMD MOV Varistor
  • Rohs Compliant: Yes
  • Customize: Provide Sample Services
  • Mounting Type: Surface Mount
  • Insulation Resistance: ≥100
  • Package Type: Through Hole
Technical Parameters
Parameter Value
Type Surface Mount Device Overvoltage Protection Device
Operating Temperature -55°C - +125°C
Storage Temperature -40°C - +125°C
Termination Tin Plated
Technology Metal Oxide
Energy Rating 0.1J - 4J
Lead Material Nickel Barrier
Operating Voltage 5V - 300V
Applications
The CL SMD MOV Varistor is ideal for use in various scenarios, including:
  • Consumer Electronics: Provides surge protection for electronic devices such as TVs, computers, and home appliances
  • Industrial Equipment: Safeguards industrial machinery and equipment from voltage spikes
  • Telecommunications: Protects communication systems and networking devices from power fluctuations
  • Automotive Electronics: Ensures reliable performance in automotive electronic systems
Electrical Characteristics
Model Voltage sensitive voltage (@1mA DC) Maximum continuous working voltage Maximum limit voltage (8/20μs) Maximum impact current (8/20μs) Maximum energy (10/1000μs) Rated power Reference capacitor @1KHZ
4032K201 200(180-220) 130 340 25 2500 25.0 0.4 500
4032K221 220(198-242) 140 360 25 2500 27.0 0.4 450
4032K241 240(216-264) 150 395 25 2500 30.0 0.4 420
4032K271 270(243-297) 175 455 25 2500 35.0 0.4 370
4032K301 300(270-330) 195 500 25 2500 40.0 0.4 330
SMD MOV Varistor3225K201/3225K200V，Applying consumer electronics products，Such as TV/monitor: Protect audio and video input/output interface, power board, etc. 0
Frequently Asked Questions
What is the brand name of the SMD MOV Varistor product?
The brand name of this product is CL.
Where is the SMD MOV Varistor product manufactured?
The SMD MOV Varistor product is manufactured in China.
What type of product is the SMD MOV Varistor?
The SMD MOV Varistor is a surface mount device (SMD) varistor used for overvoltage protection.
Is the SMD MOV Varistor suitable for industrial applications?
Yes, the SMD MOV Varistor is suitable for industrial applications due to its high reliability and performance.
Does the SMD MOV Varistor come with any certifications?
Yes, the SMD MOV Varistor product is certified to meet industry standards for quality and safety.
