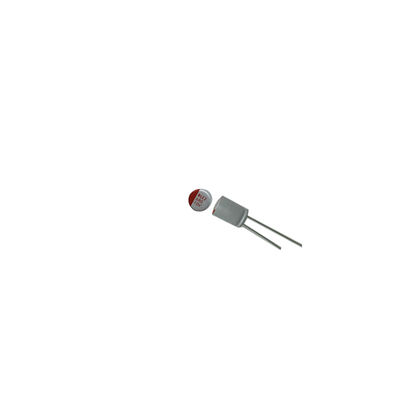

Solid Aluminum Electrolytic Capacitor 680UF10V
Applied to flat-panel TVs and displays
Product Description
The Solid Aluminum Electrolytic Capacitor, also known as Al Electrolytic Cap, is a high-quality electronic component designed for various applications where capacitance and reliability are essential. This particular capacitor has a capacitance of 1uF, making it suitable for a wide range of circuit designs.
One of the key features of this Solid Aluminum Capacitor is its high ripple current rating of 4.2A. This means that it is capable of handling significant fluctuations in current without compromising its performance, making it ideal for applications where stable operation is crucial.
As a Polarized capacitor, this Aluminum Electrolytic Capacitor is designed to operate with a specific polarity. It is important to ensure that the positive terminal is connected to the positive voltage source and the negative terminal to the negative voltage source to prevent damage to the capacitor.
Another important aspect of this Solid Aluminum Electrolytic Capacitor is its low leakage current. With a leakage current of 0.01CV or 3μA, whichever is greater, this capacitor offers reliable performance and helps maintain the overall efficiency of the circuit.
The Tolerance of this capacitor is ±20%, providing a margin of error for the specified capacitance value. This tolerance level ensures that the capacitor will perform within acceptable limits even in varying operating conditions, making it a dependable choice for demanding applications.
Features
- Product Name: Solid Aluminum Electrolytic Capacitor
- Voltage Rating: 50V
- Capacitance: 1uF
- Mounting Type: Surface Mount
- Ripple Current: 4.2A
- Operating Temperature: -55°C To +105°C
Technical Parameters
| Series |
ECOS2DA |
| Lifetime |
2000 Hours @ 105°C |
| Operating Temperature |
-55°C To +105°C |
| Ripple Current |
4.2A |
| Leakage Current |
0.01CV Or 3μA, Whichever Is Greater |
| Mounting Type |
Surface Mount |
| ESR (Equivalent Series Resistance) |
0.035 Ohms @ 100kHz |
| Capacitance |
1uF |
| Lead Spacing |
2.5mm |
| Dimensions |
6.3mm X 5.4mm |
Applications
When it comes to electronic applications demanding high performance and reliability, the SLFCF Solid Aluminum Electrolytic Capacitor is the ideal choice. With a lifetime of 2000 hours at 105°C, this capacitor ensures long-lasting and stable operation in various scenarios.
The compact dimensions of 6.3mm x 5.4mm make the SLFCF capacitor suitable for space-constrained designs without compromising on quality. Whether used in industrial equipment, power supplies, or automotive electronics, this Solid Aluminum Capacitor excels in delivering consistent capacitance of 1uF.
One of the standout features of the SLFCF capacitor is its impressive ripple current rating of 4.2A, allowing it to handle fluctuations in electrical loads effectively. Additionally, the leakage current specification of 0.01CV or 3μA (whichever is greater) ensures minimal power loss and enhanced efficiency in Solid Aluminum Electrolytic Capacitor applications.
From voltage regulation circuits to audio amplifiers, the SLFCF Solid Electrolytic Capacitor proves to be a reliable component across a wide range of scenarios. Its robust construction and dependable performance make it a preferred choice for professionals seeking durable and high-quality capacitors.
Customization
Customize your Aluminum Solid Capacitor with our Product Customization Services:
- Brand Name: SLFCF
- Mounting Type: Surface Mount
- Ripple Current: 4.2A
- Voltage Rating: 50V
- Lead Spacing: 2.5mm
- Series: ECOS2DA
Enhance your Solid Electrolytic Capacitor with our tailored options to meet your specific needs.
Support and Services
The Product Technical Support and Services for the Solid Aluminum Electrolytic Capacitor include:
- Assistance with product selection and compatibility
- Troubleshooting guidance for installation and operation
- Information on proper handling and storage of the capacitor
- Recommendations for maintenance and lifespan optimization
- Access to documentation, datasheets, and specifications
- Warranty information and claims process
Packing and Shipping
The Solid Aluminum Electrolytic Capacitor is packaged in a durable and protective box to ensure safe transportation. Each capacitor is securely placed within the box with adequate cushioning to prevent any damage during shipping.
For shipping, the capacitor is carefully packed in a sturdy cardboard box with appropriate labeling indicating the fragile nature of the product. The box is sealed securely to prevent any tampering or damage during transit.
FAQ
Q: What is the maximum temperature rating for the SLFCF Solid Aluminum Electrolytic Capacitor?
A: The SLFCF capacitors have a maximum temperature rating of 105 degrees Celsius.
Q: Does the SLFCF Solid Aluminum Electrolytic Capacitor come in various capacitance values?
A: Yes, the SLFCF capacitors are available in a range of capacitance values to suit different application requirements.
Q: Are the SLFCF Solid Aluminum Electrolytic Capacitors suitable for high-frequency applications?
A: Yes, the SLFCF capacitors are designed to perform well in high-frequency applications.
Q: What is the voltage rating range for the SLFCF Solid Aluminum Electrolytic Capacitor?
A: The SLFCF capacitors are available in voltage ratings ranging from 16V to 450V.
Q: Are the SLFCF Solid Aluminum Electrolytic Capacitors suitable for use in harsh environmental conditions?
A: Yes, the SLFCF capacitors are built to withstand harsh environmental conditions, making them suitable for a variety of applications.
