Y1 Safety Capacitor 332M/400V P10MM,Applied to power adapters

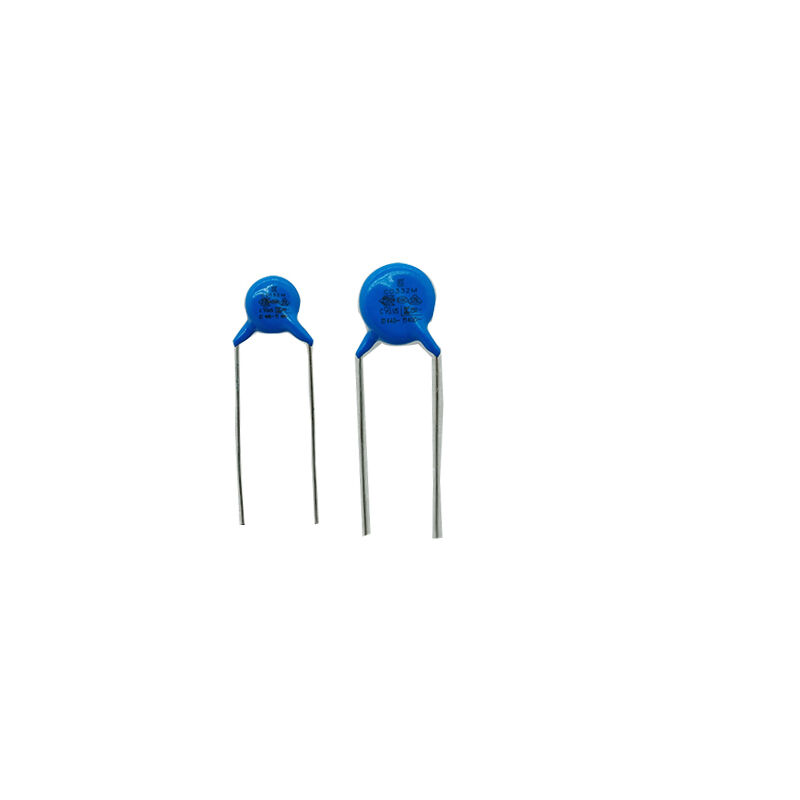

Large Image : Y1 Safety Capacitor 332M/400V P10MM,Applied to power adapters

Product Details:

Place of Origin:	CHINA
Brand Name:	CG
Certification:	CQC VDE UL KC
Model Number:	332M/400V P10MM

Contact Now

Y1 Safety Capacitor 332M/400V P10MM,Applied to power adapters

Description

Product Name:	Y1 Safety Capacitor	Rated Current:	2A-20A
Lead Wire:	UL1007, UL1015, UL1061	Shape:	Cylindrical, Rectangular, Square
Lead Length:	50mm-300mm	Rated Voltage:	250VAC
Size:	Φ4mm-Φ20mm	Insulation Resistance:	>100MΩ
Highlight:	Y1 safety capacitor 332M 400V , Y1 capacitor for power adapters , P10MM Y1 safety capacitor

Y1 Safety Capacitor 332M/400V P10MM

Applied to power adapters and protection circuits, this highly reliable capacitor ensures safety and stability of electronic devices by preventing electrical surges and transient voltages.

Product Overview

The Y1 Safety Capacitor is an essential protection circuit component designed for exceptional performance and durability. With versatile lead lengths (50mm-300mm), multiple shapes (cylindrical, rectangular, square), and size options (Φ4mm-Φ20mm), it provides flexible installation solutions while maintaining superior insulation resistance exceeding 100MΩ.

Key Features

Product Name: Y1 Safety Capacitor
Lead Length: 50mm-300mm
Storage Temperature: -40℃ to +85℃
Dielectric Strength: 2.5KVAC
Application: Suitable for Household Appliances, Lighting, Motor, etc.
Lead Wire Types: UL1007, UL1015, UL1061
Reliable capacitor shield for enhanced safety and performance
Safety protective capacitor meeting stringent standards
Durable and efficient for long-term use

Technical Specifications

Certificate	UL, CUL, VDE, CQC, CE
Storage Temperature	-40℃~+85℃
Application	Household Appliances, Lighting, Motor, Etc.
Rated Frequency	50/60Hz
Insulation Resistance	>100MΩ
Capacitance	0.1uF-10uF
Size	Φ4mm-Φ20mm
Lead Wire	UL1007, UL1015, UL1061
Rated Voltage	250VAC
Lead Length	50mm-300mm

Applications

The CG Y1 Safety Capacitor provides reliable protection across various applications including household appliances (washing machines, refrigerators, air conditioners), lighting systems (LED drivers, fluorescent lamps), and motor controls in industrial machinery and household equipment.

Customization

The Y1 Safety Capacitor by CG features lead wires made from UL1007, UL1015, and UL1061, ensuring reliable connectivity and durability. Operating at 50/60Hz with 2.5KVAC dielectric strength, it functions reliably from -40℃ to +85℃, making it ideal for applications requiring robust safety prevention.

Support & Services

For optimal performance, follow installation guidelines and operating conditions from the product datasheet. Ensure capacitors are not subjected to mechanical stress and verify voltage rating and capacitance suitability for your application. Regular inspection and testing are recommended for continued safety compliance.

Packaging & Shipping

Each capacitor is individually packaged in anti-static bags within sturdy, cushioned boxes. Outer packaging includes clear labeling with specifications and safety warnings. Shipping via reliable carriers with tracking options, complying with international regulations for electronic components.

Frequently Asked Questions

What is the brand name of the Y1 Safety Capacitor?

The Y1 Safety Capacitor is manufactured under the brand name CG.
Where is the Y1 Safety Capacitor produced?

The Y1 Safety Capacitor is made in China.
What type of applications is the Y1 Safety Capacitor suitable for?

The Y1 Safety Capacitor is typically used in electronic devices for EMI suppression and to ensure safety in line-to-ground applications.
What safety standards does the CG Y1 Safety Capacitor comply with?

The CG Y1 Safety Capacitor complies with international safety standards such as IEC and UL for Y1 capacitors.
What are the typical electrical specifications of the CG Y1 Safety Capacitor?

The CG Y1 Safety Capacitor generally features capacitance values suitable for line-to-ground filtering, with high voltage ratings (usually 250VAC or higher) and low leakage current.
