Super Capacitor3.0V3F,Applied to starting and auxiliary power supplies

Super Capacitor3.0V3F,Applied to starting and auxiliary power supplies
Super Capacitor3.0V3F,Applied to starting and auxiliary power supplies

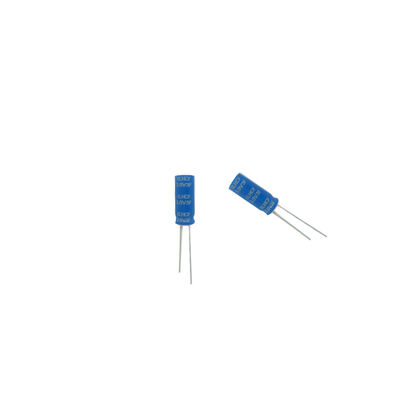

Large Image :  Super Capacitor3.0V3F,Applied to starting and auxiliary power supplies

Product Details:
Place of Origin: CHINA
Brand Name: CL
Model Number: 3.0V3F
Contact Now

Super Capacitor3.0V3F,Applied to starting and auxiliary power supplies

Description
Steady-state Damp Heat: +40℃, 90--95%RH，240h，︱△C/ C︱≤30%，Times The Specified ValueESR≤4 Peak Current: 0.54A
Cycle Durability: Add The Rated Voltage, Charge And Discharge Experiments At Room Temperature Cycle 500,000 Times.︱△C/C︱≤30% ESR≤4 Rated Voltage: 2.7V
Customize: Provide Sample Services Charge/Discharge Time: Rapid
Operating Temperature: -40~ +85 ℃ @2.7V Temperature Characteristics: +85℃︱△C/C︱≤30%，ESR≤(25℃) -40℃︱△C/C︱≤30%，ESR≤4 （25℃）
Highlight:

3.0V 3F super capacitor

,

super capacitor for power supplies

,

starting power super capacitor

Super Capacitor 3.0V 3F
Applied to starting and auxiliary power supplies
Product Overview

The Super Capacitor is a high-performance energy storage device designed to deliver exceptional reliability and efficiency across a wide range of applications. This capacitor operates effectively within an extensive temperature range of -40°C to +85°C at a rated voltage of 2.7V, making it suitable for demanding environments where temperature fluctuations are common.

Key Specifications
  • Nominal Capacity: 1.0F
  • Rated Voltage: 2.7V
  • Operating Temperature: -40°C to +85°C
  • Surge Voltage: 2.85V
  • Peak Current: 0.54A
Technical Features
  • High capacity with excellent steady-state damp heat resistance
  • Lightweight design for easy integration and handling
  • Outstanding cycle durability: 500,000 charge/discharge cycles
  • Rapid charge and discharge time for efficient energy management
  • Low Equivalent Series Resistance (ESR)
  • Reliable performance in various applications
Technical Parameters
Parameter Specification
Cycle Durability 500,000 cycles at rated voltage, |△C/C|≤30%, ESR≤4
High Temperature Load +85℃ ≤2.7V, 1000h, |△C/C|≤30%, ESR≤4
Peak Current 0.54A
Nominal Capacity 1.0F
72hrs Leakage Current (@25℃) 6 μA
Surge Voltage 2.85V
Steady-state Damp Heat +40℃, 90-95% RH, 240h, |△C/C|≤30%, ESR≤4
Temperature Characteristics +85℃|△C/C|≤30%, ESR≤(25℃); -40℃|△C/C|≤30%, ESR≤4(25℃)
Operating Temperature -40 ~ +85 ℃ @2.7V
Applications

The CL Super Capacitor is designed for a wide range of applications including:

  • Renewable energy systems (solar and wind power)
  • Automotive electronics and hybrid vehicles
  • Consumer electronics and medical equipment
  • UPS systems and power backup modules
  • Industrial machinery and control systems
Packaging

Our Super Capacitors are carefully packaged to ensure maximum protection during transit. Each unit is placed in an anti-static bag with custom-molded foam inserts within sturdy cardboard boxes. Bulk orders are palletized and shrink-wrapped for stability.

Super Capacitor3.0V3F,Applied to starting and auxiliary power supplies 0
Frequently Asked Questions
What is a super capacitor?

A super capacitor, also known as an ultracapacitor, is an energy storage device that stores and releases energy quickly, providing high power density and long cycle life.

What brand manufactures this super capacitor?

This super capacitor is manufactured by CL, a reputable brand known for high-quality energy storage solutions.

Where is the CL super capacitor made?

The CL super capacitor is made in China, ensuring adherence to strict manufacturing standards and quality control.

What are the typical applications of CL super capacitors?

CL super capacitors are used in various applications including renewable energy systems, automotive electronics, backup power supplies, and memory backup.

How does the CL super capacitor compare to traditional batteries?

CL super capacitors offer faster charging and discharging, longer cycle life, and higher power density compared to traditional batteries, making them ideal for applications requiring quick bursts of energy.
