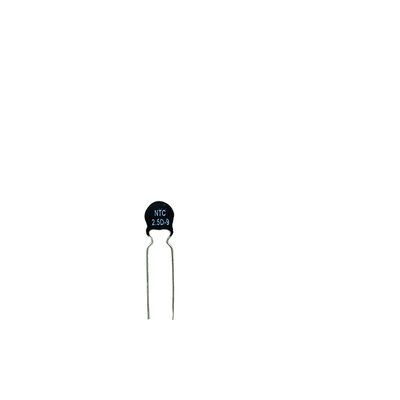

NTC Thermal Resistor 2.5D-9 P5.0MM
Applied to temperature measurement probes, the NTC Thermal Resistor is a highly reliable and versatile component widely used in temperature sensing and circuit protection applications.
Product Overview
As a Negative Temperature Coefficient (NTC) thermistor, this product exhibits a decrease in resistance as temperature rises, making it ideal for precise temperature measurement and control. Designed to deliver accurate performance across a broad resistance range from 1Ω to 100MΩ, ensuring compatibility with various electronic devices and systems.
The excellent dissipation factor ranging from 0.5mW/°C to 10mW/°C allows efficient heat dissipation during operation, enhancing stability and longevity. Constructed with high-quality lead materials including tinned copper, nickel, and silver for exceptional conductivity and corrosion resistance.
Key Features
- Product Name: NTC Thermal Resistor
- Also known as NTC Thermistor, Thermally Activated Resistor, and Temperature Sensitive Resistor
- Resistance Range: 1Ω To 100MΩ
- Lead Material Options: Tinned Copper, Nickel, Silver
- Thermal Time Constant: 1s To 15s for fast and accurate temperature response
- Termination Styles Available: Axial Leads, Radial Leads, SMD Pads
- Tolerance Range: ±1% To ±10% ensuring precision in various applications
Technical Specifications
| Dissipation Factor |
0.5mW/°C To 10mW/°C |
| Customization |
Provide Sample Services |
| Sample Availability |
Available |
| Mounting Type |
Through Hole, Surface Mount |
| Thermal Coefficient |
-2% To -6% |
| Part Number |
22D-9 |
| Termination Style |
Axial Leads, Radial Leads, SMD Pads |
| Output |
Analog Sensor |
| Usage |
Temperature Sensor |
Applications
The CL brand NTC Thermal Resistor series (5D9, D13, D15, D20) provides precise and reliable temperature measurements for various industrial, commercial, and consumer applications.
Primary Applications:
- HVAC systems for efficient climate control
- Household appliances including refrigerators, ovens, and water heaters
- Automotive engine management systems, battery packs, and climate control modules
- Medical devices for patient monitoring and sterilization equipment
- Industrial machinery and electronic devices for overheating prevention
Customization Options
CL offers customized NTC Thermal Resistor products with model numbers 5D9, D13, D15, and D20. Our thermally sensitive resistors feature:
- Wide resistance range from 1Ω to 100MΩ
- Thermal time constants from 1 second to 15 seconds
- Through hole and surface mount mounting types
- Tolerance options between ±1% and ±10%
- Sample availability for product evaluation
Technical Support & Services
Our team provides comprehensive technical support including product selection, circuit design, and troubleshooting assistance. Services include detailed datasheets, application notes, design guidelines, and custom solutions based on your environmental and operational requirements.
We offer calibration guidance, installation advice, and maintenance tips to maximize the lifespan and reliability of your NTC Thermal Resistors, supporting your projects from initial design to final implementation.
Packaging & Shipping
Product Packaging: Each resistor is individually placed in anti-static bags and organized into sturdy cardboard boxes with adequate cushioning. Packaging labels include product specifications, quantity, handling instructions, and batch numbers.
Shipping: We offer reliable worldwide shipping with tracking information through reputable carriers. Options include standard, expedited, and express services, complying with international shipping regulations.
Frequently Asked Questions
What brand manufactures the 5D9-D13-D15-D20 NTC Thermal Resistor?
The 5D9-D13-D15-D20 NTC Thermal Resistor is manufactured by the brand CL.
Where is the CL 5D9-D13-D15-D20 NTC Thermal Resistor made?
This NTC Thermal Resistor is produced in China.
What does the model number 5D9-D13-D15-D20 indicate?
The model number represents a range of NTC Thermal Resistors with different specifications suitable for various temperature sensing applications.
What is the primary function of the CL NTC Thermal Resistor?
The primary function is to measure temperature by changing its resistance value in response to temperature variations.
Can the CL 5D9-D13-D15-D20 NTC Thermal Resistor be used in electronic circuit protection?
Yes, the CL NTC Thermal Resistor is commonly used in electronic circuits for temperature sensing and can help in protection by monitoring temperature changes.
