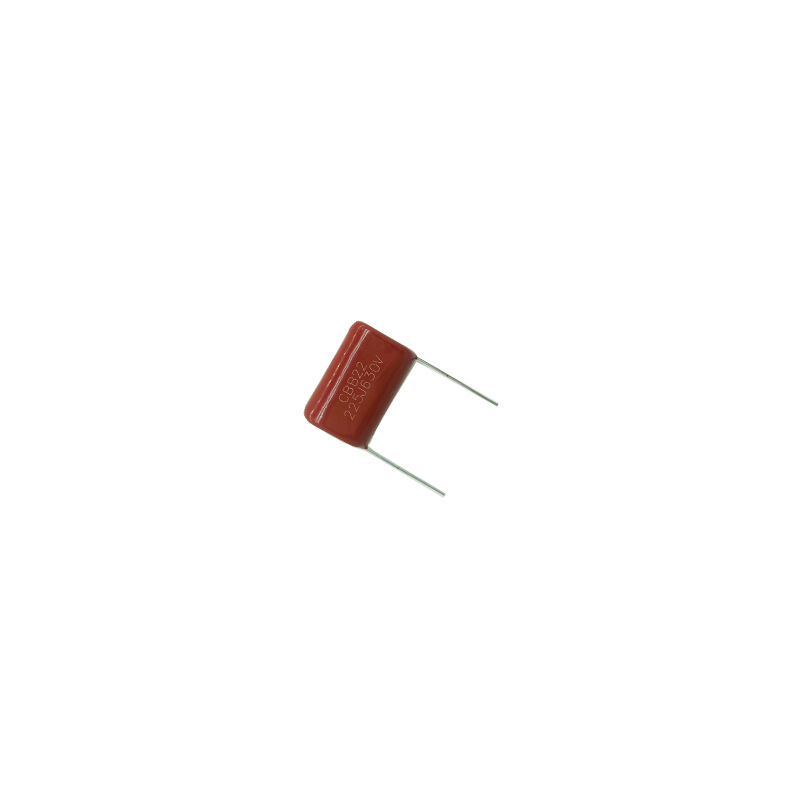

Metallized Polypropylene Film Capacitor CBB22 225J630V
High-performance metallized polypropylene film capacitor designed for fan applications and various electronic circuits requiring stable capacitance and excellent performance under different environmental conditions.
Product Overview
This metalized polypropylene film capacitor offers superior electrical characteristics, enhanced durability, and long service life, making it ideal for both industrial and consumer electronics. With an operating temperature range of -40°C to +85°C, it maintains optimal performance in extreme environments.
Key Features
- Product Name: Metallized Polypropylene Film Capacitor
- High Insulation Resistance: ≥ 10000MΩ for reliable performance
- Rated Voltage Range: 50V to 1000V suitable for various applications
- Available Lead Types: Radial and Axial to fit different mounting requirements
- Capacitance Range: 0.01uF to 2.2uF for versatile circuit design
- Lead Spacing Options: 2.5mm to 10mm for flexible installation
- Metallized polypropylene capacitor technology ensuring low loss and high stability
- Excellent dielectric properties with self-healing capabilities
Technical Specifications
| Parameter |
Specification |
| Product Name |
Metallized Polypropylene Film Capacitor |
| Capacitance |
0.01uF-2.2uF |
| Capacitance Tolerance |
+/-5% |
| Lead Length |
5mm-50mm |
| Insulation Resistance |
>=10000MΩ |
| Package Type |
Tape And Reel |
| Size |
Diameter: 6.3mm-18mm; Length: 6.3mm-20mm |
| Lead Type |
Radial, Axial |
| Mounting Type |
Through-hole |
| Dissipation Factor |
<=0.1 |
Applications
Ideal for power supply filtering, signal processing, coupling and decoupling circuits, pulse handling, high-frequency switching power supplies, audio equipment, precision instrumentation, motor drives, renewable energy systems, electronic lighting ballast circuits, automotive electronics, and communication equipment.
Customization Options
CL offers customizable solutions with adjustable lead lengths (5mm-50mm), various lead types (radial and axial), flexible lead spacing (2.5mm-10mm), and tape and reel packaging for automated assembly processes.
Support & Services
Comprehensive technical support including detailed datasheets, application notes, design guidelines, expert consultation, customized solutions, warranty services, and rigorous quality assurance processes.
Packaging & Shipping
Individually wrapped in anti-static material with sturdy, cushioned cartons. Available shipping options include air freight, sea freight, and express courier services with tracking and insurance.
Frequently Asked Questions
What is the brand name of this Metallized Polypropylene Film Capacitor?
The brand name of this capacitor is CL.
Where is the Metallized Polypropylene Film Capacitor manufactured?
This capacitor is manufactured in China.
What are the typical applications for CL Metallized Polypropylene Film Capacitors?
These capacitors are commonly used in power supplies, filtering circuits, audio equipment, and motor run applications due to their stability and low loss characteristics.
What advantages do Metallized Polypropylene Film Capacitors offer?
They provide excellent electrical stability, low dielectric losses, high insulation resistance, and good self-healing properties, making them reliable for various electronic applications.
What is the temperature range for operating the CL Metallized Polypropylene Film Capacitor?
Typically, these capacitors operate reliably within a temperature range of -40°C to +105°C, depending on the specific model and rating.
