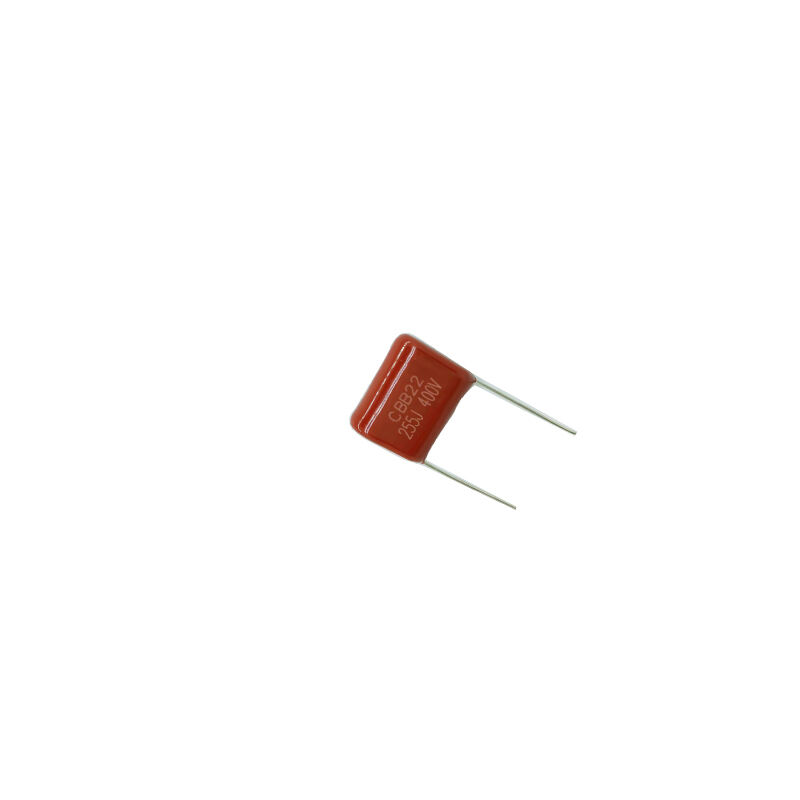

Metallized Polypropylene Film Capacitor CBB22 225J400V
Applied to motor starting/operation, this metallized polypropylene film capacitor delivers reliable performance in power supply, automotive, and industrial applications.
Product Overview
The Metallized Polypropylene Film Capacitor is a highly reliable component featuring compact dimensions (diameter: 6.3mm-18mm, length: 6.3mm-20mm) with flexible lead spacing from 2.5mm to 10mm. It operates effectively within a broad temperature range of -40°C to +85°C, making it suitable for demanding environments.
Constructed with high-quality polypropylene film and metallized layers, this capacitor offers low dielectric losses, high insulation resistance, and superior self-healing properties. The metallized film structure enhances voltage surge withstand capability and extends operational lifespan.
Key Features
- Product Type: Metallizing Film Capacitor, Polypropylene Film Capacitor
- Dissipation Factor: ≤ 0.1
- Lead Length: 5mm - 50mm
- Lead Spacing: 2.5mm - 10mm
- Capacitance Tolerance: ±5%
- Lead Type: Radial, Axial
Technical Specifications
| Parameter |
Specification |
| Capacitance Range |
0.01uF - 2.2uF |
| Capacitance Tolerance |
±5% |
| Rated Voltage |
50V - 1000V |
| Package Type |
Tape and Reel |
| Size Range |
Diameter: 6.3mm-18mm; Length: 6.3mm-20mm |
| Mounting Type |
Through-hole |
Applications
This capacitor is ideal for power supply systems (filtering, energy storage, noise suppression), automotive electronics (engine control units, infotainment systems), and industrial applications (motor drives, automation equipment, control systems).
Customization Options
We offer customized Metallized Polypropylene Capacitors with capacitance values from 0.01uF to 2.2uF, operating temperatures from -40°C to +85°C, and lead spacing between 2.5mm and 10mm to meet specific design requirements.
Installation and Maintenance
For optimal performance, mount capacitors securely while avoiding mechanical stress on leads. Ensure proper ventilation to prevent overheating and monitor temperature/voltage levels during operation. Periodic inspection is recommended to check for wear or performance degradation.
Packaging and Shipping
Each capacitor is individually wrapped in anti-static material and placed in cushioned boxes. Bulk orders are organized in custom trays or reels. We offer multiple shipping methods including air freight, sea freight, and express courier services with tracking options.
Frequently Asked Questions
Q1: What is the brand name of this Metallized Polypropylene Film Capacitor?
A1: The brand name is CL.
Q2: Where is the capacitor manufactured?
A2: This capacitor is manufactured in China.
Q3: What are the typical applications?
A3: Commonly used in power supplies, audio equipment, filtering circuits, and pulse applications due to their stability and low loss characteristics.
Q4: What are the key features?
A4: Key features include high insulation resistance, low dissipation factor, self-healing properties, and excellent performance under high frequency and high voltage conditions.
Q5: What capacitance and voltage ratings are available?
A5: Available in a wide range of capacitance values and voltage ratings. Please refer to the product datasheet for specific options.
