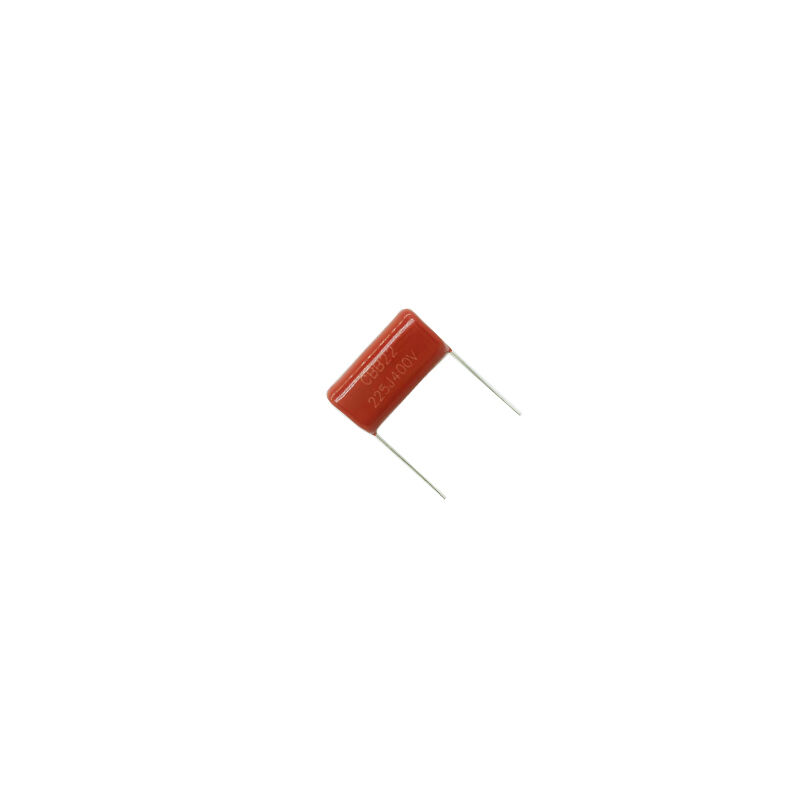

Metallized Polypropylene Film Capacitor CBB22 225J400V
High-performance electronic component designed for inverters and various electrical applications, delivering exceptional reliability, stability, and low loss characteristics.
Product Overview
The Metallized Polypropylene Film Capacitor is an essential component for circuits requiring precise capacitance and superior electrical properties. With its wide operating temperature range of -40°C to +85°C, this capacitor performs consistently in diverse environmental conditions, making it ideal for industrial machinery, automotive electronics, and consumer devices.
Key Features
- Also known as Metalized Polypropylene Capacitor or Metallized Film Capacitor
- Application: Power Supply, Automotive, and Industrial uses
- Capacitance Tolerance: +/-5%
- Insulation Resistance: ≥10000MΩ
- Lead Type: Radial and Axial leads available
- Package Type: Tape and Reel packaging
- Through-hole mounting for robust mechanical stability
- Low dissipation factor (≤0.1) for high efficiency
Technical Specifications
| Parameter |
Specification |
| Product Name |
Metallized Polypropylene Film Capacitor |
| Application |
Power Supply, Automotive, Industrial |
| Rated Voltage |
50V-1000V |
| Capacitance Tolerance |
+/-5% |
| Operating Temperature |
-40°C to +85°C |
| Lead Spacing |
2.5mm-10mm |
| Lead Length |
5mm-50mm |
| Lead Type |
Radial, Axial |
| Mounting Type |
Through-hole |
| Insulation Resistance |
≥10000MΩ |
Applications
This versatile capacitor is widely used in power supply circuits for filtering and noise suppression, audio equipment for superior sound quality, automotive electronics, industrial machinery, telecommunications, medical devices, and instrumentation. Its self-healing properties ensure longevity and resilience against voltage spikes in motor run circuits, lighting ballasts, and high-frequency pulse circuits.
Customization Options
CL offers customized Metallized Polypropylene Film Capacitors with diameters ranging from 6.3mm to 18mm and lengths from 6.3mm to 20mm. Flexible packaging options including Tape and Reel are available to facilitate automated assembly processes.
Support & Services
We provide comprehensive technical support including product selection guidance, application advice, and troubleshooting. Detailed datasheets, application notes, and design guidelines are available. Custom capacitance values, tailored voltage ratings, and packaging options can be arranged to meet specific project requirements.
Packaging & Shipping
Each capacitor is individually wrapped in anti-static material and placed in sturdy, cushioned boxes. Bulk orders are packed in custom trays or reels within rigid cartons. Multiple shipping options including air freight, sea freight, and express courier services are available with full tracking support.
Frequently Asked Questions
What is the brand name of this Metallized Polypropylene Film Capacitor?
The brand name of this capacitor is CL.
Where is the Metallized Polypropylene Film Capacitor manufactured?
This capacitor is manufactured in China.
What are the typical applications for the CL Metallized Polypropylene Film Capacitor?
These capacitors are commonly used in power electronics, motor run circuits, filtering, and energy storage applications due to their stability and reliability.
What are the key features of CL Metallized Polypropylene Film Capacitors?
Key features include high insulation resistance, low dielectric loss, excellent self-healing properties, and long service life.
What capacitance range is available for the CL Metallized Polypropylene Film Capacitor?
The capacitance range typically varies from a few nanofarads (nF) up to several microfarads (µF), suitable for various electronic circuit requirements.
