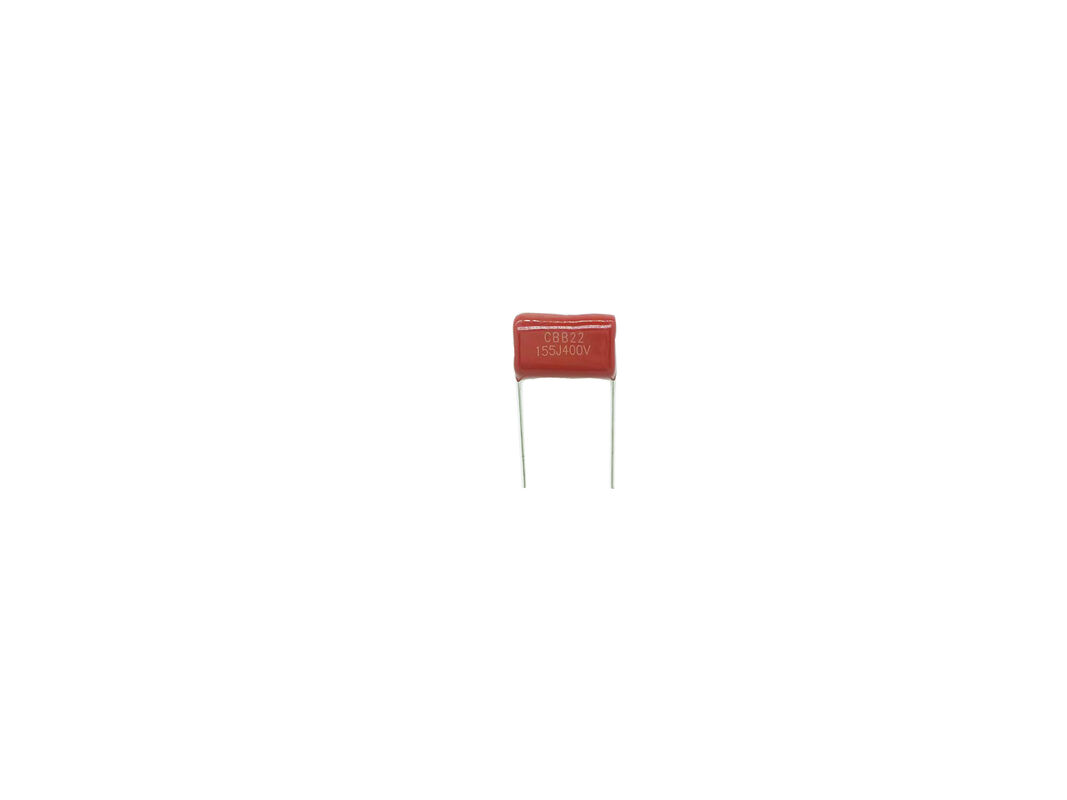

Metallized Polypropylene Film Capacitor CBB22 155J400V P15MM
Applied to frequency converters and various electronic applications requiring stable capacitance and reliable insulation.
Product Overview
The Metalized Polypropylene Film Capacitor is a high-performance electronic component known for exceptional electrical characteristics, outstanding insulation resistance, and enhanced durability. With insulation resistance ≥10,000MΩ, it guarantees excellent performance in demanding environments.
Operating temperature range from -40°C to +85°C makes it suitable for industrial, automotive, and consumer electronics applications. Available in diameters from 6.3mm to 18mm and lengths from 6.3mm to 20mm, with lead lengths from 5mm to 50mm for flexible installation.
Key Features
- Product Name: Metallized Polypropylene Film Capacitor
- Package Type: Tape And Reel
- Lead Type: Radial, Axial
- Dissipation Factor: ≤ 0.1
- Lead Spacing: 2.5mm - 10mm
- Capacitance Tolerance: ±5%
- High reliability suitable for various electronic applications
- Advanced metallizing polypropylene film technology
- Durable construction for long-lasting use
Technical Specifications
| Parameter |
Specification |
| Product Name |
Metallized Polypropylene Film Capacitor |
| Capacitance |
0.01uF - 2.2uF |
| Rated Voltage |
50V - 1000V |
| Size |
Diameter: 6.3mm - 18mm; Length: 6.3mm - 20mm |
| Dissipation Factor |
≤0.1 |
| Insulation Resistance |
≥10000MΩ |
| Operating Temperature |
-40°C ~ +85°C |
| Lead Type |
Radial, Axial |
| Mounting Type |
Through-hole |
| Application |
Power Supply, Automotive, Industrial |
Applications
Ideal for power supplies, motor run circuits, audio equipment, signal processing, filtering, coupling, and decoupling circuits. Suitable for industrial automation, consumer electronics, automotive systems, and telecommunications where reliability under continuous operation is crucial.
Customization Options
CL brand capacitors offer lead lengths from 5mm to 50mm to meet various application requirements. Available in tape and reel packaging for automated assembly with dissipation factor ≤0.1 for excellent performance and low energy loss.
Support & Services
Comprehensive technical support including product selection guidance, application advice, and troubleshooting. Detailed datasheets, application notes, and engineering assistance for custom design requirements. Quality assurance testing, installation support, maintenance guidance, and training sessions available.
Packaging & Shipping
Individually wrapped in anti-static material and placed in sturdy, cushioned boxes. Bulk orders organized in trays or reels with secure sealing and labeling. Flexible shipping options including express, standard, and freight services with tracking and international compliance.
Frequently Asked Questions
Q1: What is the brand name of this Metallized Polypropylene Film Capacitor?
A1: The brand name is CL.
Q2: Where is the Metallized Polypropylene Film Capacitor manufactured?
A2: This capacitor is manufactured in China.
Q3: What are the typical applications of the CL Metallized Polypropylene Film Capacitor?
A3: Commonly used in power supplies, motor run circuits, filtering, and signal processing applications due to its stability and low loss characteristics.
Q4: What capacitance range is available for the CL Metallized Polypropylene Film Capacitor?
A4: The capacitance range typically spans from 0.01uF to 2.2uF, depending on the specific model.
Q5: What are the key benefits of using a Metallized Polypropylene Film Capacitor from CL?
A5: Key benefits include excellent electrical characteristics, high insulation resistance, low dissipation factor, self-healing properties, and long operational life.
