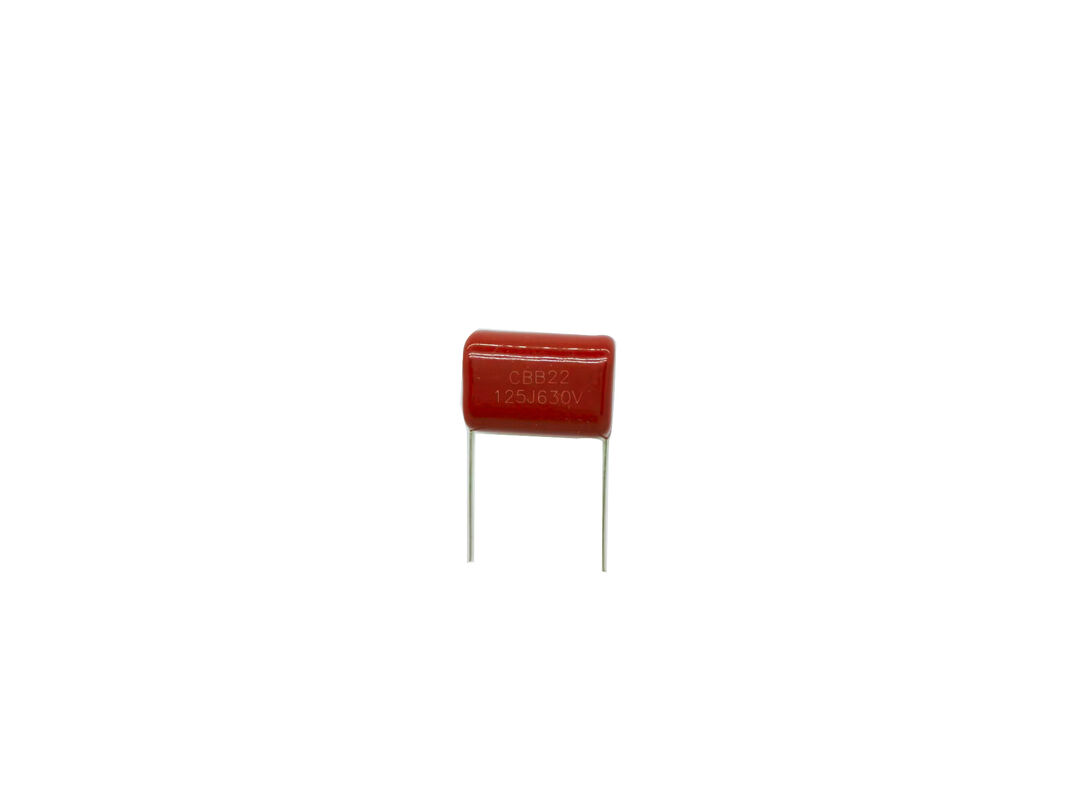

Metallized Polypropylene Film Capacitor CBB22 125J630V P15MM
Applied to switching power supply and various electronic applications requiring stable, reliable capacitance performance.
Product Overview
The Metallized Polypropylene Film Capacitor is a highly reliable electronic component designed for demanding applications including power supply systems, automotive electronics, and industrial equipment. Featuring a capacitance range from 0.01μF to 2.2μF, this capacitor provides stable and precise capacitance values for diverse circuit designs.
Key Features
- Product Name: Metallized Polypropylene Film Capacitor
- Also known as Metalized Polypropylene Capacitor or Polypropylene Film Capacitor
- Rated Voltage Range: 50V to 1000V
- Capacitance Range: 0.01μF to 2.2μF
- Compact Size: Diameter from 6.3mm to 18mm, Length from 6.3mm to 20mm
- Low Dissipation Factor: ≤ 0.1, ensuring high efficiency and performance
Technical Specifications
| Parameter |
Specification |
| Product Name |
Metallized Polypropylene Film Capacitor |
| Dissipation Factor |
≤ 0.1 |
| Lead Type |
Radial, Axial |
| Capacitance |
0.01μF - 2.2μF |
| Rated Voltage |
50V - 1000V |
| Size |
Diameter: 6.3mm - 18mm; Length: 6.3mm - 20mm |
| Lead Spacing |
2.5mm - 10mm |
| Mounting Type |
Through-hole |
| Operating Temperature |
-40°C ~ +85°C |
| Application |
Power Supply, Automotive, Industrial |
Applications
This capacitor excels in power supply systems for smoothing, filtering, and energy storage tasks. Automotive applications benefit from its robustness in engine control units and infotainment systems. Industrial uses include motor drives, automation equipment, and renewable energy systems where stable performance under harsh conditions is essential.
Customization Services
We offer customized Metallized Polypropylene Film Capacitors with capacitance values from 0.01μF to 2.2μF, operating temperature range of -40°C to +85°C, and capacitance tolerance of ±5%. Available with rated voltages from 50V to 1000V and packaging options including Tape and Reel for automated assembly.
Support & Services
Our technical support team provides product selection guidance, application engineering support, and troubleshooting. We offer custom capacitor solutions, testing services, and comprehensive documentation including datasheets and application notes to ensure optimal integration and performance.
Packaging & Shipping
Each capacitor is individually wrapped in anti-static material and secured in custom trays or reels. Packages include cushioning materials and moisture protection as needed. We use reliable carriers with tracking and comply with international shipping regulations.
Frequently Asked Questions
Q1: What is the brand name of this Metallized Polypropylene Film Capacitor?
A1: The brand name of this capacitor is CL.
Q2: Where is the CL Metallized Polypropylene Film Capacitor manufactured?
A2: This capacitor is manufactured in China.
Q3: What are the typical applications for CL Metallized Polypropylene Film Capacitors?
A3: These capacitors are commonly used in power electronics, motor run circuits, filtering, and noise suppression applications.
Q4: What are the key benefits of using Metallized Polypropylene Film Capacitors from CL?
A4: They offer high insulation resistance, low dielectric loss, excellent stability, and long service life.
Q5: What voltage ratings are available for CL Metallized Polypropylene Film Capacitors?
A5: CL capacitors are available in a wide range of voltage ratings suitable for different industrial and electronic needs; please refer to the product datasheet for specific ratings.
