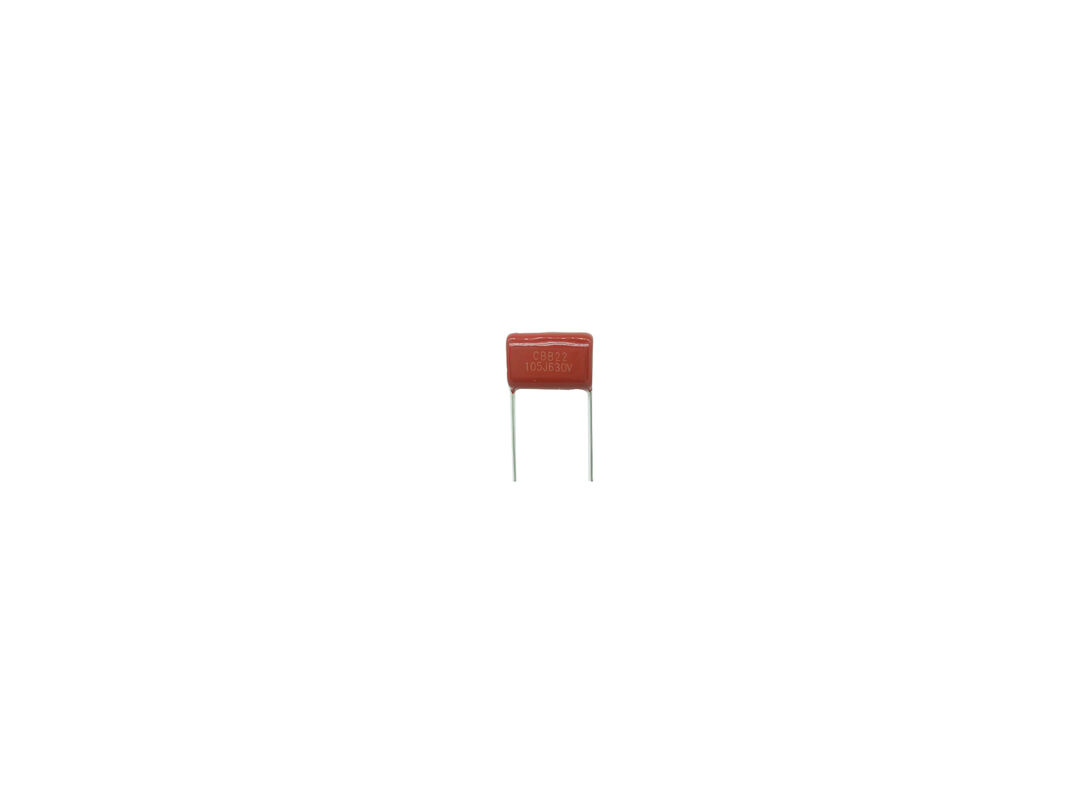

Metallized Polypropylene Film Capacitor CBB22 105J630V P15MM
Applied to LED driving and various electronic applications requiring high reliability and efficiency.
Product Overview
The Metallized Polypropylene Film Capacitor is a highly reliable electronic component designed for demanding applications including power supply systems, automotive electronics, and industrial equipment. Featuring excellent electrical characteristics, long-term stability, and superior performance, this capacitor is ideal for filtering, buffering, and energy storage tasks.
Key Features
- Product Name: Metallized Polypropylene Film Capacitor
- Application: Power Supply, Automotive, Industrial
- Lead Spacing: 2.5mm-10mm
- Capacitance Range: 0.01uF-2.2uF
- Package Type: Tape And Reel
- Dissipation Factor: ≤0.1
- High reliability and stability
- Compact design with excellent performance characteristics
Technical Specifications
| Parameter |
Specification |
| Product Name |
Metallized Polypropylene Film Capacitor |
| Lead Type |
Radial, Axial |
| Lead Spacing |
2.5mm - 10mm |
| Lead Length |
5mm - 50mm |
| Size |
Diameter: 6.3mm - 18mm; Length: 6.3mm - 20mm |
| Capacitance |
0.01uF - 2.2uF |
| Capacitance Tolerance |
+/-5% |
| Dissipation Factor |
≤0.1 |
| Mounting Type |
Through-hole |
| Package Type |
Tape And Reel |
Applications
Ideal for power supply circuits, automotive electronics, industrial equipment, motor drives, automation controllers, renewable energy systems, and LED driving applications. Provides stable performance under harsh environmental conditions including temperature fluctuations and mechanical vibrations.
Customization Options
CL brand capacitors offer customizable lead types (radial and axial) with lead lengths from 5mm to 50mm. Features excellent insulation resistance of ≥10000MΩ and rated voltage from 50V to 1000V. Flexible packaging options including tape and reel for automated assembly processes.
Support & Services
Comprehensive technical support including product selection assistance, customization options, failure analysis, and circuit design guidance. Detailed datasheets, application notes, and warranty information available. Continuous support throughout product lifecycle.
Packaging & Shipping
Individually wrapped with anti-static material and placed in sturdy, cushioned boxes. Bulk orders organized in trays or reels. Shipping via reliable carriers with tracking options. Complete documentation provided for customs clearance.
Frequently Asked Questions
Q1: What is the brand name of this Metallized Polypropylene Film Capacitor?
A1: The brand name of this capacitor is CL.
Q2: Where is the Metallized Polypropylene Film Capacitor manufactured?
A2: This capacitor is manufactured in China.
Q3: What are the typical applications of CL Metallized Polypropylene Film Capacitors?
A3: These capacitors are commonly used in power electronics, filtering circuits, pulse applications, and energy storage due to their high stability and low loss characteristics.
Q4: What are the key features of CL Metallized Polypropylene Film Capacitors?
A4: Key features include low dielectric loss, high insulation resistance, self-healing properties, and excellent stability over a wide temperature range.
Q5: What capacitance range is available for CL Metallized Polypropylene Film Capacitors?
A5: The capacitance values typically range from a few nanofarads (nF) up to several microfarads (µF), depending on the specific model and application requirements.
