Product Details:
|
| Type:: | X2 Safety Capacitor | Capacitance:: | 0.1 UF |
|---|---|---|---|
| Rated Voltage:: | 250-310V | Model Number::: | MKP X2 |
| Operating Temperature: | -40℃～+110℃ | Application:: | Widely Used In Across-the-line,interference Suprression Circuit,motor, Fan, Air Conditioner Etc. |
| Capacitance Tolerance:: | ±10%(K) | Material:: | Metallized Polypropylene Structure |
| Highlight: | 0.1 UF Capacitor 300V,Anti Interference Capacitor |
||

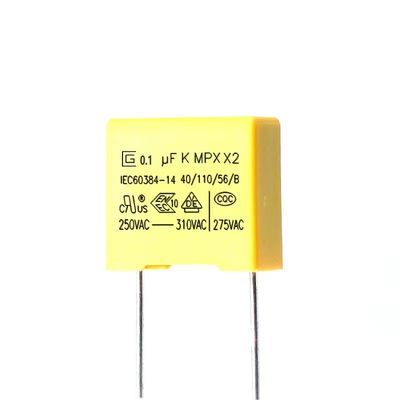

0.1uf 310v X2 Safety Capacitor Anti-Interference Capacitor
Products Introduction
MPX are winded with metallized polypropylene film dielectric,Non-inductive construction, tinned copper wire leads,and flame retardant epoxy resin coating. They have excellent features of self-healing and good flame retardant according to UL 94-V0
Type application
The Products Would widely used for the Interference suppressors and across-the-line capacitor applications.Suitable for used in situations where failure of the capacitor will not lead to danger of electric shock.
Features
1 Non-induction construction
2 High moisture-resistance
3 Self-healing property
4 Flame retardant type(compliance with UL 94V-0)
5 Very small loss
6 Excellent frequency and temperature characteristics
7 High insulation resistance
Electrical specifications
| Item | Characteristic requirement | Test method&Condition | |||||||||||||
| Climatic Category | 40/110/56 | ||||||||||||||
| Passive Flammability Class | B | ||||||||||||||
| Operating Temperature | -40℃～+110℃ | ||||||||||||||
| Capacitance Range | 0.0022μF～2.2μF | ||||||||||||||
| Capacitance Tolerance | ±10%(K),±20%(M) | 1KHz ,1.0Vrms ,25℃ | |||||||||||||
| Rated Voltage | 250VAC/275VAC/300VAC/305VAC/310VAC | ||||||||||||||
| Dissipation Factor | 1KHz<0.10% | IR≥6000s | |||||||||||||
| Insulation Resistance | C≤0.33μF | C>0.33μF | UR＞100V,100VDC, | ||||||||||||
| IR≥15000MΩ | IR≥6000s | 60S,20℃ | |||||||||||||
| Withstand voltage Between Terminals | No permanent breakdown or flashover | 4.3UR(d.c) 60s 25℃Cut off Current 10mA | |||||||||||||
| Withstand voltage Between Terminals and Case | No permanent breakdown or flashover | 2UR+1500V(a.c) 60s 25℃ ≥2000V(a.c) 25℃ | |||||||||||||
| MAX. Pulse rise time (dv/dt) | Lead spacing | ||||||||||||||
|
|||||||||||||||
