Product Details:
|
| Keyword: | X2 Safety Capacitor | Capacitance:: | 0.1 UF |
|---|---|---|---|
| Rated Voltage:: | 250-310V | Model Number::: | MKP X2 |
| Operating Temperature: | -40℃～+110℃ | Application: | Widely Used In Across-the-line,interference Suprression Circuit,motor, Fan, Air Conditioner Etc. |
| Capacitance Tolerance: | ±10%(K),±20%(M) | Material:: | Metallized Polypropylene Structure |
| Highlight: | Metalized Polypropylene Film Capacitor,MKP X2 Capacitor |
||
Metallized Capacitor Film Plastic Case Class X2 Safety Capacitor Medium Power Square Capacitor
Products Introduction
MPX are winded with metallized polypropylene film dielectric,Non-inductive construction, tinned copper wire leads,and flame retardant epoxy resin coating. They have excellent features of self-healing and good flame retardant according to UL 94-V0
Construction and main materials of products
| NO. | Main Materials | Specification | Remark |
| 1 | Metallized polypropylene Film | MPPZAH or MPPA(5～12μm) | --- |
| 2 | Zn,Sn line | Zn or Zn and Sn alloy | --- |
| 3 | Terminal | Cu(Copper wire) (Φ0.55 or 0.75mm) | ±0.05mm |
| 4 | Sealed Material | Epoxy resin | UL94-V0 |
| 5 | Plastic Case | PBT | UL94-V0 |
Note:All of the Materials are in compliance with the requirements of ROHS AND REACH.
Type application
The Products Would widely used for the Interference suppressors and across-the-line capacitor applications.Suitable for used in situations where failure of the capacitor will not lead to danger of electric shock.
Features
1 Non-induction construction
2 High moisture-resistance
3 Self-healing property
4 Flame retardant type(compliance with UL 94V-0)
5 Very small loss
6 Excellent frequency and temperature characteristics
7 High insulation resistance
Electrical specifications
Unless otherwise specified,electric characteristics shall refer to IEC 60384-14:2005
| Item | Characteristic requirement | Test method&Condition | ||||||||||||
| Climatic Category | 40/110/56 | |||||||||||||
| Passive Flammability Class | B | |||||||||||||
| Operating Temperature | -40℃～+110℃ | |||||||||||||
| Capacitance Range | 0.0022μF～2.2μF | |||||||||||||
| Capacitance Tolerance | ±10%(K),±20%(M) | 1KHz ,1.0Vrms ,25℃ | ||||||||||||
| Rated Voltage | 250VAC/275VAC/300VAC/305VAC/310VAC | |||||||||||||
| Dissipation Factor | 1KHz<0.10% | IR≥6000s | ||||||||||||
| Insulation Resistance | C≤0.33μF | C>0.33μF | UR＞100V,100VDC, | |||||||||||
| IR≥15000MΩ | IR≥6000s | 60S,20℃ | ||||||||||||
| Withstand voltage Between Terminals | No permanent breakdown or flashover | 4.3UR(d.c) 60s 25℃Cut off Current 10mA | ||||||||||||
| Withstand voltage Between Terminals and Case | No permanent breakdown or flashover | 2UR+1500V(a.c) 60s 25℃ ≥2000V(a.c) 25℃ | ||||||||||||
| MAX. Pulse rise time (dv/dt) | Lead spacing | |||||||||||||
| ||||||||||||||

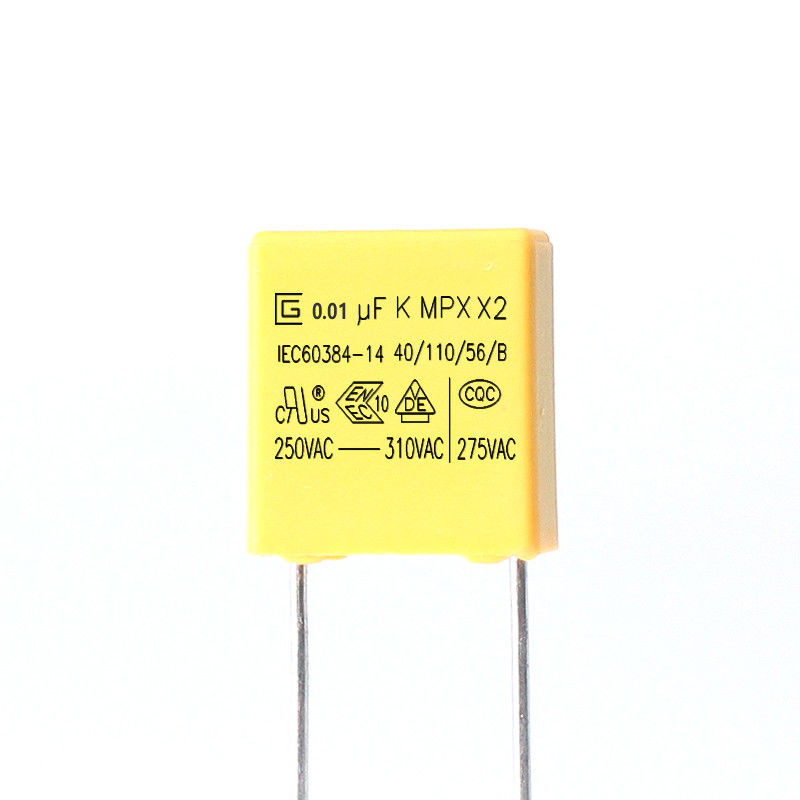

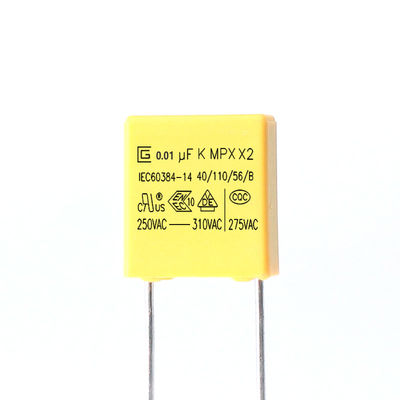

Marking
1. CIGU logo:
2. Capacitance:(104K ,0.1μF)
3. Capacitance Tolerance:(K)±10%
4. Rated Voltage:250,275,300,305,310VAC
5. Product Class:X2
6. Product type: MPX
7. Climatic Category: 40/110/56
8. Passive Flammability Class:B
9. China approvals mark:CQC
10. Germany approvals mark:VDE
11. ENEC approvals mark:ENEC
12. American approvals mark:CUL
13. Approval standard:IEC60384-14
8. Approvals
| NO. | Country | Approval standard | File No. | Rated Voltage | ||
| 1 | China | CQC | IEC60384-14:2005 | CQC19001219393 | 275VAC | |
| 2 | Germany | VDE | IEC60384-14:2013 | 40050231 | 250VAC 275VAC 300VAC 305VAC 310VAC | |
| 3 | European Union | ENEC | IEC60384-14:2013 | 40050234 | ||
| 4 | USA Canada | UL | IEC60384-14:2005 | E481614 | ||
Storage conditions
1 t should be noted that the solderability of the terminals may be deteriorted when stored barely in an atmosphere for a long preriods
2 It shouldn't be located in particularly high temperature and high humidity, it must submit to the following conditions(keeping in the original package)
Temperature: 35℃ MAX Relative humidity:60% MAX
3 Storage period:Losse:12 monthes max (from the manufacturing date marked on the label in package bag)
Specifications(IEC 60384-14)
| Test items | Performance requirements | Conditions of test |
| Capacitance | Within the tolerance specified | 1KHz, 1Vrms Max. at 25℃ |
| Dissipation Factor | 0.001 (0.1%) Max. | 1KHz, 1Vrms Max. at 25℃ |
| Voltage proof | Shall be no abnormality | Between terminals 4.3UR (Vdc) Test of 60sec. |
| Between terminal and enclosure UR×200％+1500Vac, 60sec. | ||
| Insulation resistance | CR ≤ 0.33μF IR ≥ 15,000MΩ CR >0.33μF IR ≥6,000s | 100±15Vdc, 60sec / 25℃ |
| Robustness of terminations | No wire breakage and no damage of capacitor | Tense Strength of Terminal Load Force : 1.0 Kg |
Bending Strength of Terminal Load Force : 0.5 Kg | ||
| Resistance to soldering heat | (1) Appearance : No visible damage | Solder temperature: 260±5℃ |
| Solderability | 95% of the surface tinning | Solder temperature: 260±5℃ |
| Rapid change of temperature | The capacitors shall be visually examined and there shall be no visible damage. | Lower category temperature: -40℃ |
| Vibration | The capacitors shall be visually examined and there shall be no visible damage | Frequency range: 10~55Hz |
| Test items | Performance requirements | Conditions of test |
| Climatic sequence | (1) Appearance : No visible damage | Dry Heat |
Cold | ||
| Damp Heat Steady State | (1) Appearance : No visible damage | +40°C and 93% RH, 56 days |
| Charge and discharge | (1) Appearance : No visible damage | Test voltage : √2 x URVAC 50 Hz |
| Endurance | (1) Appearance : No Visible Damage | 1.25 x UR VAC 50 Hz, once every hour |
