| Type:: | X2 Safety Capacitor | Capacitance:: | 0.015UF |
|---|---|---|---|
| Rated Voltage:: | 250-310V | Model Number::: | MKP X2 |
| Operating Temperature: | -40℃～+110℃ | Application:: | Widely Used In Across-the-line,interference Suprression Circuit,motor, Fan, Air Conditioner Etc. |
| Capacitance Tolerance:: | ±10%(K) | Package: | Carton Sealing |
| Highlight: | X2 Safety Capacitor 0.015 UF,Anti Interference X2 Safety Capacitor,0.015 UF Capacitor |
||

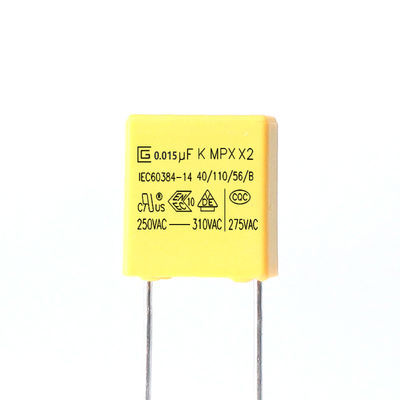

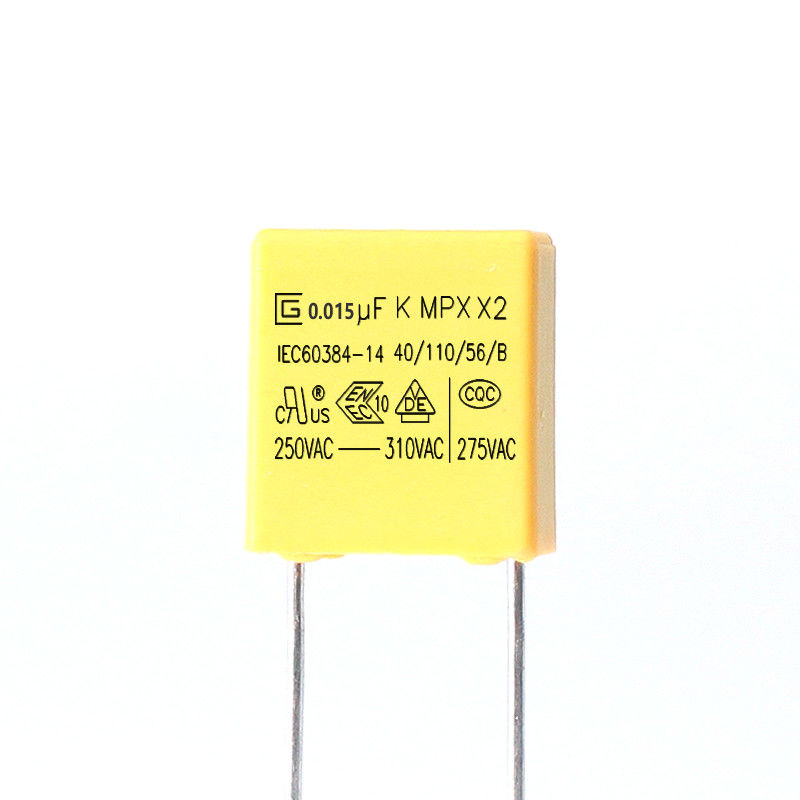

0.015uf 310v X2 Safety Capacitor Anti-Interference Capacitor Self-Healing Property
The full name of X capacitor is generally called: X2 (X1/X3/MKP) capacitor for suppressing power supply electromagnetic interference. Generally, the main functions in the circuit are: power supply cross-line circuit, EMI filtering, spark elimination circuit, etc. to ensure that the finished electronic products meet the EMC requirements.
Products Introduction
MPX are winded with metallized polypropylene film dielectric,Non-inductive construction, tinned copper wire leads,and flame retardant epoxy resin coating. They have excellent features of self-healing and good flame retardant according to UL 94-V0
Type application
The Products Would widely used for the Interference suppressors and across-the-line capacitor applications.Suitable for used in situations where failure of the capacitor will not lead to danger of electric shock.
Features
1 Non-induction construction
2 High moisture-resistance
3 Self-healing property
4 Flame retardant type(compliance with UL 94V-0)
5 Very small loss
6 Excellent frequency and temperature characteristics
7 High insulation resistance
Specifications(IEC 60384-14)
| Test items | Performance requirements | Conditions of test |
| Capacitance | Within the tolerance specified | 1KHz, 1Vrms Max. at 25℃ |
| Dissipation Factor | 0.001 (0.1%) Max. | 1KHz, 1Vrms Max. at 25℃ |
| Voltage proof | Shall be no abnormality | Between terminals 4.3UR (Vdc) Test of 60sec. |
| Between terminal and enclosure UR×200％+1500Vac, 60sec. | ||
| Insulation resistance | CR ≤ 0.33μF IR ≥ 15,000MΩ CR >0.33μF IR ≥6,000s | 100±15Vdc, 60sec / 25℃ |
| Robustness of terminations | No wire breakage and no damage of capacitor |
Tense Strength of Terminal Load Force : 1.0 Kg Holding Time : 10 ± 1sec |
|
Bending Strength of Terminal Load Force : 0.5 Kg Bending Time : 4 x 90 ﾟ |
||
| Resistance to soldering heat |
(1) Appearance : No visible damage (2) △C/C : ≤ ±5% of the initial value |
Solder temperature: 260±5℃ Solder time: 5±0.5sec |
| Solderability | 95% of the surface tinning |
Solder temperature: 260±5℃ Solder time: 2±0.5sec |
| Rapid change of temperature | The capacitors shall be visually examined and there shall be no visible damage. |
Lower category temperature: -40℃ Upper category temperature: 110℃ Number of cycles: 5 Duration t1 = 30 min |
| Vibration | The capacitors shall be visually examined and there shall be no visible damage |
Frequency range: 10~55Hz Course: X,Y,Z (axis) 2h / axis ( 6h in total) Displacement amplitude: 0.75mm |
| Test items | Performance requirements | Conditions of test |
| Climatic sequence |
(1) Appearance : No visible damage (2) △C/C : ≤ ±5% of the initial value (3) DF ( tanδ) : ≤ 0.008 of increased value (4) IR : ≥ 50% of the applicable limits (5) Voltage proof : Normal |
Dry Heat Upper Temperature: 110℃ Lower Duration: 16Hrs |
|
Cold Temperature: -40℃ Duration: 2Hrs |
||
| Damp Heat Steady State |
(1) Appearance : No visible damage (2) △C/C : ≤ ±5% of the Initial value (3) DF ( tanδ) : ≤ 0.008 of increased value (4) IR : ≥ 50% of the applicable limits (5) Voltage proof : Normal |
+40°C and 93% RH, 56 days |
| Charge and discharge |
(1) Appearance : No visible damage (2) △C/C : ≤ ±10% of the initial value (3) DF ( tanδ) : ≤ 0.008 of increased value (4) IR : ≥ 50% of the applicable limits |
Test voltage : √2 x URVAC 50 Hz Charge and discharge: 0.5sec/time Repeated for 10000 cycles |
| Endurance |
(1) Appearance : No Visible Damage (2) △C/C : ≤ ±10% of the initial value (3) DF ( tanδ) : ≤ 0.008 of increased value (4) IR : ≥ 50% of the applicable limits |
1.25 x UR VAC 50 Hz, once every hour increase to 1,000VAC for 0.1 second, 1,000 hours at upper rated temperature |
