Product Details:
|
| Material: | Metallized Polypropylene Film | Capacitance Tolerance: | ±5% ( J ) |
|---|---|---|---|
| Rated Voltage: | 630V | Packing: | In Bulk / In Tape |
| Printing: | Oil Printing / Laser Printing | Color: | Black |
| Highlight: | 630v Capacitor 683J,MMKP82 Box Type Capacitor,630v Capacitor Box Type |
||

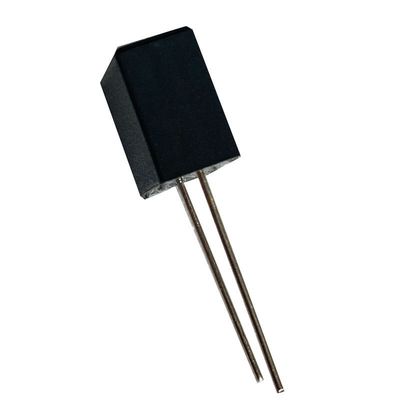

MMKP82 683j 630v Box Type Double Sided Metallized Polypropylene Film Capacitor
Product Details:
Type: MKP 82
Model: 683J630V
Material: Metallized Polypropylene Film
Capacity: 0.068uF
Rated voltage: 630V
Pitch: 7.5mm
Capacitance tolerance: ±5% ( J )
Color:Black
Printing: oil printing / laser printing
Packing: in bulk / in tape
Product features
The capacitor adopts external flame-retardantshell-type
packaging, epoxy resin potting, good self-healing, high
reliability, low loss, superior electricalerformance, con-
sistent external dimensions,suitable for automated
assembly, full range of radialtaping, extensive Used in
various DC and pulsatingcircuits
Usage:
Widely used in high voltage, high frenquency and pulse circuit
Lamp capacitor for electronic ballast compact lamps
SNUBBER and SCR commutaing circuits
Specification:
| Climatic Category | 40/085/21 |
| Rated Voltage | 250V,400V,630V,1000V,1600V,2000V |
| Capacitance Range | 0.00022μF~3.9μF |
| Voltage Proof | 1.6 UR(5S) |
| Insulation Resistance | C≤0.33UF ≥15000MΩ(20℃,1min) |
| C>0.33UF ≥5000S(20℃,1min) | |
| (20℃, 1min) | |
| Disspation Factor | <0.0010 (1KHz,20℃) |
Outline Drawing:
