Product Details:
|
| Model Number: | Mmkp82 | Capacitance Tolerance: | ±5% ( J ) |
|---|---|---|---|
| Rated Voltage: | 630V | Packing: | In Bulk / In Tape |
| Printing: | Oil Printing / Laser Printing | Color: | Black |
| Type:: | Capacitor | Operating Temperature Range: | -40℃~105℃ |
| Highlight: | 1000V Capacitor,1600V Capacitor,2000V Capacitor |
||

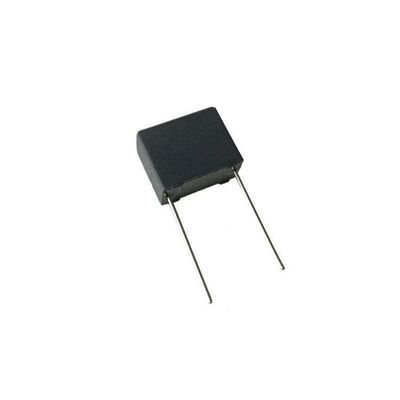

Mmkp82 104J250V 400V 630V 1000V 1600V 2000V Capacitor Used In High Voltage High Frenquency
Capacitor Structure
With polypropylene fime dielectric,pole with double sided metallized polyester film,
twain section spray-metal form Non-inductive configuration,
Electrode lead unilateralism fetch out and fame retardant epoxy resindip sealed.
Features
Doublesided meatallized pplypropylene structure
Low loss and small inherent temperature rise
NegatiVe temperature coefficient of capacitance
Exellent active and passive flame resistant circuit
Applications
Widely used in high voltage, high frenquency and pulse circuit
Lamp capacitor for electronic ballast
SNUBBER and SCR commutaing circuits
Specification:
| Climatic Category | 40/085/21 |
| Rated Voltage | 250V,400V,630V,1000V,1600V,2000V |
| Capacitance Range | 0.00022μF~3.9μF |
| Voltage Proof | 1.6 UR(5S) |
| Insulation Resistance | C≤0.33UF ≥15000MΩ(20℃,1min) |
| C>0.33UF ≥5000S(20℃,1min) | |
| (20℃, 1min) | |
| Disspation Factor | <0.0010 (1KHz,20℃) |
Outline Drawing:
FAQ
Q;Materials of products?
A;A metallized film for A + grade capacitors. Besides we accept customization
Q;Samples are free?
A:yes!
Q;Quality Control?
A;Quality is first,We has passed ISO9001and ROHS REACH certification,As an important part of quality management, quality control is the key to proving the effectiveness of quality certification.
