Product Details:
|
| Storage Temperature: | -10°C~+40°C | Relative Humidity: | ≤75%RH |
|---|---|---|---|
| Sample: | Available | Material: | Ceramics |
| Type: | Gas Discharge Tube | Customized: | Provide Sample Services |
| Highlight: | SXH81 Gas Discharge Tube,Gas Discharge Tube Lightning Protection |
||

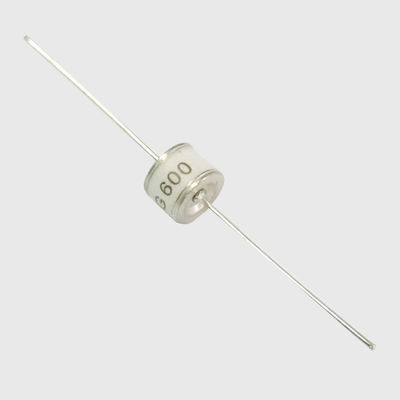

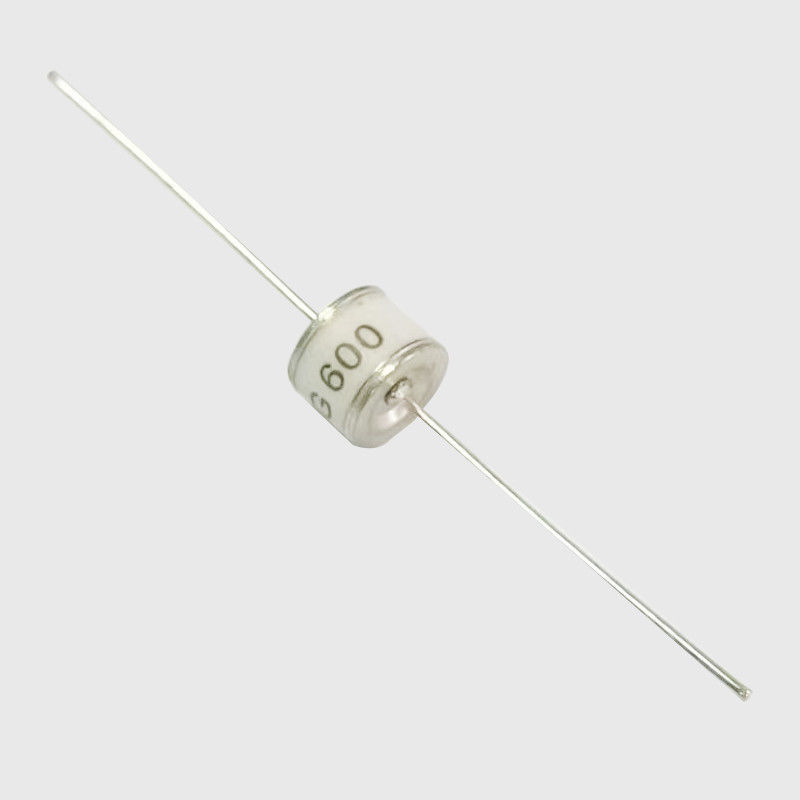

SXH81 Gas Discharge Tube RoHS & HF Compliant For Consumer Electronics
SXH8 0 - 230X SMDT.pdf
Gas discharge tube is a gap-type lightning protection component, which has been widely used in lightning protection of communication systems. The discharge tube is often used in the first or first two stages of a multi-level protection circuit to discharge lightning instantaneous overcurrent and limit overvoltage. Since the inter-electrode insulation resistance of the discharge tube is large and the parasitic capacitance is small, it is not suitable for high frequency Lightning protection for signal lines has definite advantages. The main shortcomings of the protection characteristics of the discharge tube are that the discharge time delay is large, the action sensitivity is not ideal, and it is difficult to effectively suppress the lightning wave with a steep rise of the wave head, and there is a freewheeling problem in the lightning protection of the power system.
GDT introduction: Gas discharge tubes (GDT) use noble gasses enclosed in ceramic tubes to provide an alternate circuit path for voltage spikes.The ceramic envelope and with nickel connectors allow for high loads and Surging offers products that function at 20KA,40KA,50KA,60KA,100KA&150KA. The breakdown voltages of the devices have a wide range (up to 20% tolerance).Major applications are high frequency telecommunication lines,stations, security systems,HID and high quality Surge Protection Devices (SPD).
Warehouse Storage Conditions of Products
· Storage Conditions:
1. Storage Temperature: -10°C~+40°C
2. Relative Humidity:≤75%RH
3. Keep away from corrosive atmosphere and sunlight. · Period of Storage: 1 year
Recommended Applications
1. Cable Modem 2. xDSL
3. Set-Top Box
4. TV sets
5. Power supplier
6. Consumer electronics
|
Materials
|
Dull Tin-plated
|
|
Product Marking
|
Without
|
|
Storage and Operational Temperature
|
-10°C~+40°C
|
|
Weight
|
~30mg
|
|
Climatic category (IEC 60068-1)
|
40/ 90/ 21
|
|
|
Non-Radioactive
RoHS compliant Ultra low capacitance (<0.5pF) UL recognized Excellent response to fast rising transients 0.5KA surge capability tested with 8/20μs pulse as defifined by IEC 61000-4-5 Square Outline |
|
|
Communication equipment
CATV equipment Test equipment Data lines Power supplies Telecom SLIC protection Broadband equipment ADSL equipment, including ADSL2+ XDSL equipment Satellite and CATV equipment General telecom equipment ESD protection |
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ ?
A: MOQ depend on the type of product, 1pc for sample checking is available
