Product Details:
|
| Storage Temperature: | -10°C~+40°C | Relative Humidity: | ≤75%RH |
|---|---|---|---|
| Customize: | Provide Sample Services | Sample: | Free Samples Are Available |
| Material: | Ceramics | Type: | Gas Discharge Tube |
| Highlight: | 10KA Gas Discharge Tube,GDT Gas Discharge Tube,230V GDT Tube |
||

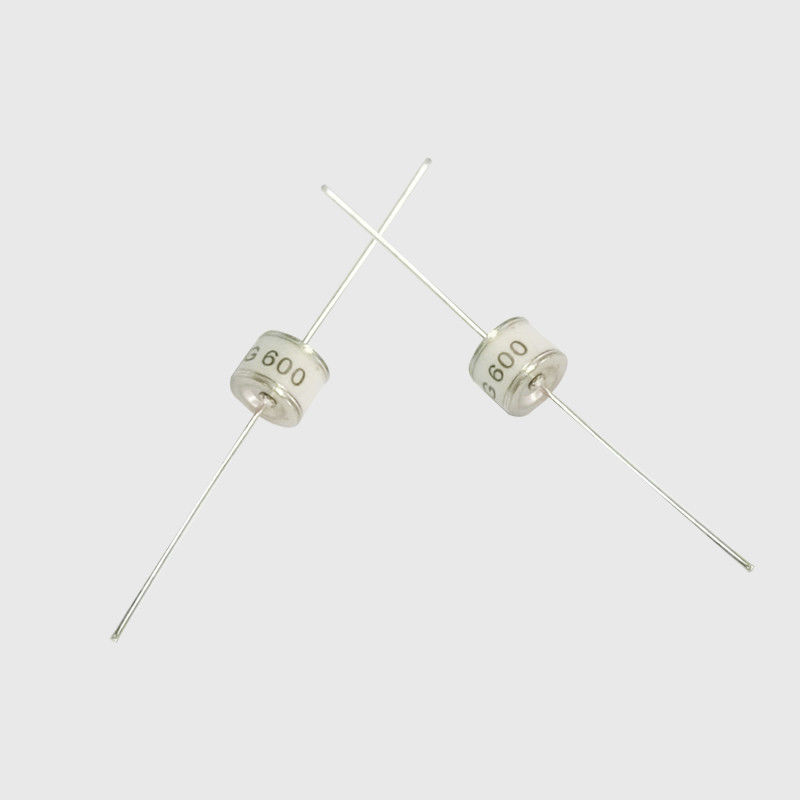

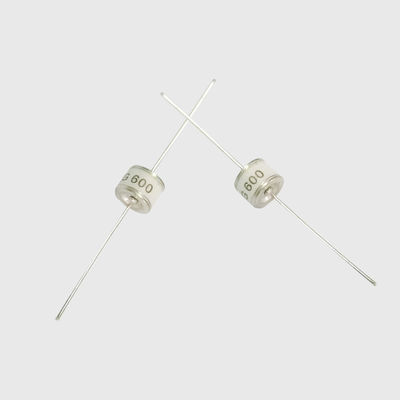

10KA 230V GDT Gas Discharge Tube For Circuit Protection PCB Board
SXH8 0 - 230X SMDT.pdf
GDT introduction:Gas discharge tubes (GDT) use noble gasses enclosed in ceramic tubes to provide an alternate circuit path for voltage spikes.The ceramic envelope and with nickel connectors allow for high loads and Surging offers products that function at 20KA,40KA,50KA,60KA,100KA&150KA. The breakdown voltages of the devices have a wide range (up to 20% tolerance).Major applications are high frequency telecommunication lines,stations, security systems,HID and high quality Surge Protection Devices (SPD).
Features
1. RoHS & HF compliant
2. Rugged ceramic-metal construction
3. Available with or without leads
4. DC spark-over voltage:70~3600V
5. Low capacitance
6. Agency recognition :UL/cUL
7. Operating temperature : -30°C ~ +85°C Storage temperature: -40°C ~ +115°C
Recommended Applications
1. Cable Modem
2. xDSL
3. Set-Top Box
4. TV sets
5. Power supplier
6. Consumer electronics
Warehouse Storage Conditions of Products
· Storage Conditions:
1. Storage Temperature: -10°C~+40°C
2. Relative Humidity:≤75%RH
3. Keep away from corrosive atmosphere and sunlight. · Period of Storage: 1 year
|
Materials
|
Dull Tin-plated
|
|
Product Marking
|
Without
|
|
Storage and Operational Temperature
|
-10°C~+40°C
|
|
Weight
|
~30mg
|
|
Climatic category (IEC 60068-1)
|
40/ 90/ 21
|
|
|
Non-Radioactive
RoHS compliant Ultra low capacitance (<0.5pF) UL recognized Excellent response to fast rising transients 0.5KA surge capability tested with 8/20μs pulse as defifined by IEC 61000-4-5 Square Outline |
|
|
Communication equipment
CATV equipment Test equipment Data lines Power supplies Telecom SLIC protection Broadband equipment ADSL equipment, including ADSL2+ XDSL equipment Satellite and CATV equipment General telecom equipment ESD protection |
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ ?
A: MOQ depend on the type of product, 1pc for sample checking is available
