Product Details:
|
| Fetures: | Good Properties In Damp Environment | Capacitance:: | 0.82uf |
|---|---|---|---|
| Rated Voltage:: | 250-310V | Material: | Metallized Polypropylene Film |
| Application: | General Purpose | Keyword: | X2 Safety Capacitor |
| Highlight: | 0.82 UF 275V Capacitor,0.82 Uf Capacitor,824k Capacitor |
||

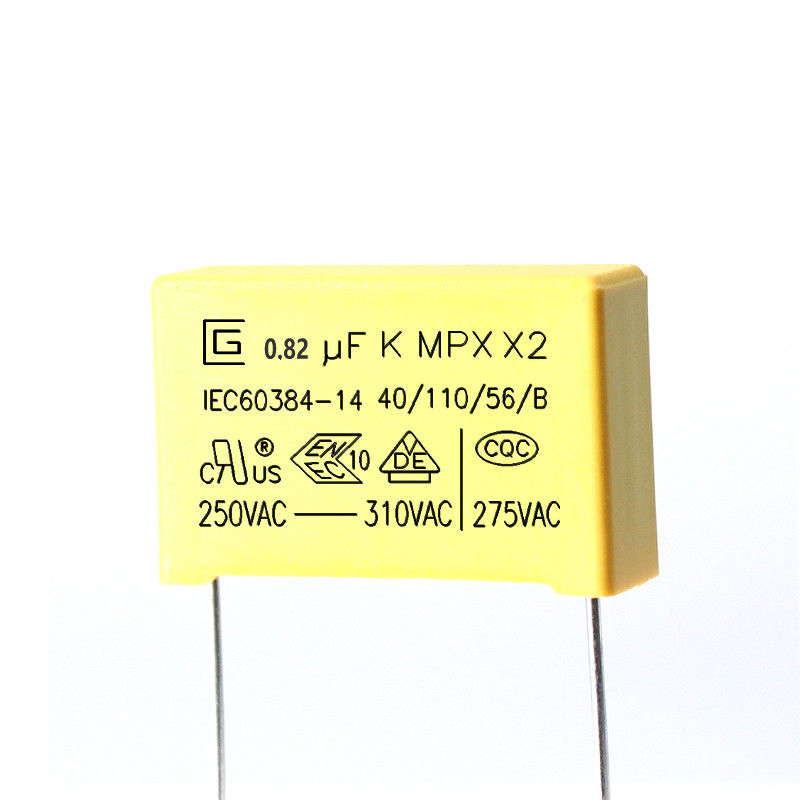

Good Stability 0.82uf 824K 275VAC X2 Safety Capacitor Good Properties In Damp Environment
X capacitor --- metallized polypropylene film capacitor; usually, X capacitor is mostly made of polyester film capacitor with relatively large ripple current resistance. This type of capacitor has a large volume, but it allows a large current for instantaneous charge and discharge, and its internal resistance is correspondingly small. The X capacitor adopts the outer square and the inner high-voltage OPP (metallized polypropylene material winding processing) in plastic packaging. The OPP material not only has better electrical performance, but also can effectively reduce the impact of high-frequency pulses when connected in parallel with the input end of the power supply. Power effects.
X2 Safety Capacitor.pdf
Characteristics of X2 Safety Capacitors
Non-inductive construction with metallized polypropylene film.
Excellent moisture resistance.
self-healing.
Excellent flame retardant properties.
Capable of withstanding overvoltage shocks.
The use of X2 safety capacitors.
Suppresses electromagnetic interference.
Jumper the lines.
It is suitable for the resistance-capacitance step-down of ammeters, LED drivers, controllers, etc. in series in the circuit.
Products Introduction
MPX are winded with metallized polypropylene film dielectric,Non-inductive construction, tinned copper wire leads,and flame retardant epoxy resin coating. They have excellent features of self-healing and good flame retardant according to UL 94-V0
Features
1.This is specifically designed for applications in serial with the 100Vac-240Vac main, i.e. capacitive divider, for example,energy meter, LED driver etc.
2.Metallized polypropylene film
3.Good self-healing properties, withstanding surge voltage stressing
4.Long stability of capacifance
5.Good properties in damp environment
6.Excellent active and passive flame resistant abilities
Construction and main materials of products
Specifications(IEC 60384-14)
| Test items | Performance requirements | Conditions of test |
| Capacitance | Within the tolerance specified | 1KHz, 1Vrms Max. at 25℃ |
| Dissipation Factor | 0.001 (0.1%) Max. | 1KHz, 1Vrms Max. at 25℃ |
| Voltage proof | Shall be no abnormality | Between terminals 4.3UR (Vdc) Test of 60sec. |
| Between terminal and enclosure UR×200％+1500Vac, 60sec. | ||
| Insulation resistance | CR ≤ 0.33μF IR ≥ 15,000MΩ CR >0.33μF IR ≥6,000s | 100±15Vdc, 60sec / 25℃ |
| Robustness of terminations | No wire breakage and no damage of capacitor |
Tense Strength of Terminal Load Force : 1.0 Kg Holding Time : 10 ± 1sec |
|
Bending Strength of Terminal Load Force : 0.5 Kg Bending Time : 4 x 90 ﾟ |
||
| Resistance to soldering heat |
(1) Appearance : No visible damage (2) △C/C : ≤ ±5% of the initial value |
Solder temperature: 260±5℃ Solder time: 5±0.5sec |
| Solderability | 95% of the surface tinning |
Solder temperature: 260±5℃ Solder time: 2±0.5sec |
| Rapid change of temperature | The capacitors shall be visually examined and there shall be no visible damage. |
Lower category temperature: -40℃ Upper category temperature: 110℃ Number of cycles: 5 Duration t1 = 30 min |
| Vibration | The capacitors shall be visually examined and there shall be no visible damage |
Frequency range: 10~55Hz Course: X,Y,Z (axis) 2h / axis ( 6h in total) Displacement amplitude: 0.75mm |
| Test items | Performance requirements | Conditions of test |
| Climatic sequence |
(1) Appearance : No visible damage (2) △C/C : ≤ ±5% of the initial value (3) DF ( tanδ) : ≤ 0.008 of increased value (4) IR : ≥ 50% of the applicable limits (5) Voltage proof : Normal |
Dry Heat Upper Temperature: 110℃ Lower Duration: 16Hrs |
|
Cold Temperature: -40℃ Duration: 2Hrs |
||
| Damp Heat Steady State |
(1) Appearance : No visible damage (2) △C/C : ≤ ±5% of the Initial value (3) DF ( tanδ) : ≤ 0.008 of increased value (4) IR : ≥ 50% of the applicable limits (5) Voltage proof : Normal |
+40°C and 93% RH, 56 days |
| Charge and discharge |
(1) Appearance : No visible damage (2) △C/C : ≤ ±10% of the initial value (3) DF ( tanδ) : ≤ 0.008 of increased value (4) IR : ≥ 50% of the applicable limits |
Test voltage : √2 x URVAC 50 Hz Charge and discharge: 0.5sec/time Repeated for 10000 cycles |
| Endurance |
(1) Appearance : No Visible Damage (2) △C/C : ≤ ±10% of the initial value (3) DF ( tanδ) : ≤ 0.008 of increased value (4) IR : ≥ 50% of the applicable limits |
1.25 x UR VAC 50 Hz, once every hour increase to 1,000VAC for 0.1 second, 1,000 hours at upper rated temperature |
Storage conditions
1 t should be noted that the solderability of the terminals may be deteriorted when stored barely in an atmosphere for a long preriods
2 It shouldn't be located in particularly high temperature and high humidity, it must submit to the following conditions(keeping in the original package)
Temperature: 35 MAX Relative humidity:60% MAX
3 Storage period:Losse:12 monthes max (from the manufacturing date marked on the label in package bag)
Enviroment requirement
1 Compliance with the requirement of RoHS.
2 Compliance with the requirement of REACH.
3 Without Halogen(as required).
4 Please see the attachment 2 for the test reprots of the Rohs and Reach by a third party
