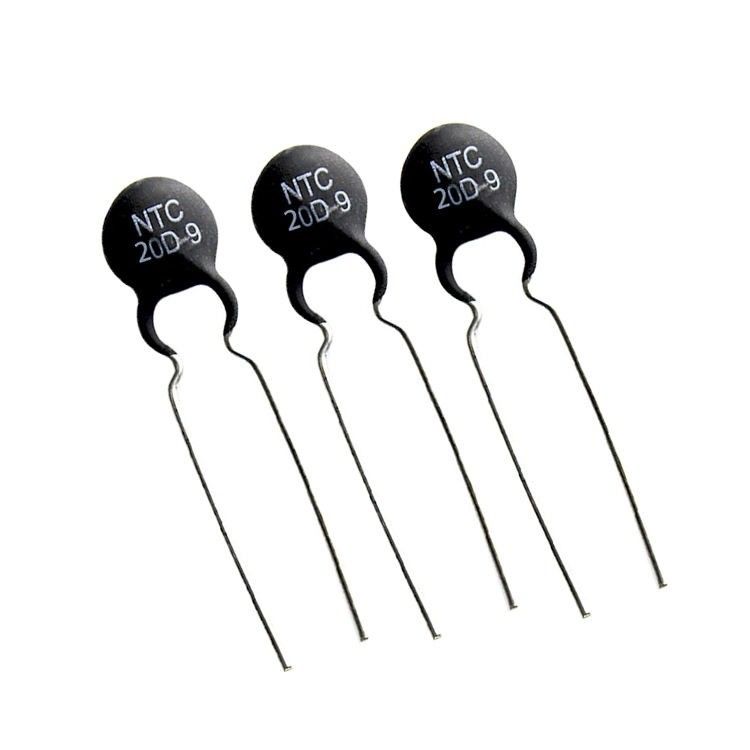

High Reliability 20D9 NTC Thermal Resistor Strong Ability To Suppress Surge Current

Large Image : High Reliability 20D9 NTC Thermal Resistor Strong Ability To Suppress Surge Current

Product Details:

Place of Origin:	Dongguan China
Brand Name:	SG
Certification:	VDE，CQC
Model Number:	NTC Thermistor

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiate
Price:	Negotiate
Packaging Details:	Export package
Delivery Time:	Negotiate
Payment Terms:	T/T, L/C
Supply Ability:	50000000pcs per month

Contact Now

High Reliability 20D9 NTC Thermal Resistor Strong Ability To Suppress Surge Current

Description

Application:	Strong Ability To Suppress Surge Current	ODM OEM:	YES
Operating Temperature:	-40℃~200℃	Customize:	Provide Sample Services
Sample:	Available	Technology:	Carbon Composition
Package Type:	Through Hole
Highlight:	20D9 NTC Thermal Resistor , High Reliability NTC Thermal Resistor , NTC Thermistor

High Reliability 20D9 NTC Thermal Resistor Strong Ability To Suppress Surge Current

NTC thermistors are generally made of metal oxides such as manganese, cobalt, nickel and copper, and are manufactured by ceramic technology. These metal oxides are completely similar to semiconductor materials such as germanium and silicon in the way of conduction. When the temperature is low, the number of carriers (electrons and holes) of these oxide materials is small, and its resistance is high; when the temperature is high, the number of carriers (electrons and holes) of the oxide material is large, and its resistance is low.

The main advantage

1. Small size, no leads, fast response speed, small space occupied by electronic equipment,
2. Using three-layer electroplating process, it has excellent solderability and solder resistance, suitable for wave soldering and reflow soldering, and suitable for high-speed, high-density surface mount.

Product parameters

model	Rated zero power resistance R25 (Ω)	Max.steady State current(A)	Residual Resistance(Ω)	B25/85 (K)	Themal time Constant(s)	Dissipation factor(mw/℃)
1.3D-13	1.3	7	0.089	2700	≤70	≥13
1.5D-13	1.5	7	0.089	2700
2.5D-13	2.5	6	0.108	2700
3D-13	3	6	0.145	2700
4D-13	4	5	0.146	2700
4.7D-13	4.7	5	0.147	2800
5D-13	5	5	0.15	2800
6D-13	6	4	0.211	2800
6.8D-13	6.8	4	0.228	3000
7D-13	7	4	0.232	3000
8D-13	8	4	0.275	3000
10D-13	10	4	0.272	3000
12D-13	12	3	0.483	3000
15D-13	15	3	0.488	3100
16D-13	16	3	0.454	3100
18D-13	18	3	0.511	3200
20D-13	20	3	0.568	3200
22D-13	22	3	0.581	3200
25D-13	25	2	0.625	3200
30D-13	30	2	0.696	3200
33D-13	33	2	0.765	3200
47D-13	47	2	1.091	3200
50D-13	50	2	1.161	3200

Technical Specification

Body diameter Φ40mm

P/N	R25±20%(Ω)	Thermal sensitive index B±10%(K)	Max steady state current Imax(A)	Approx R of Max current Rmax(Ω)	Max power dissipation Pmax(W)	Thermal time constant (mW/C)	Thermal time constant (s)	Max impulse capacitance (uF)240VAC
MF73-0.2/50	0.2	2600	50	0.007	25	≥55	≤350	8000
MF73-0.5/40	0.5	2600	40	0.008				6800
MF73-3/28	3	2800	28	0.02				6800
MF73-5/25	5	3000	25	0.028				4700
MF73-8/20	8	3200	20	0.034				3300
MF73-10/19	10	3200	19	0.038				3300

Body diameter Φ45mm

P/N	R25±20%(Ω)	Thermal sensitive index B±10%(K)	Max steady state current Imax(A)	Approx R of Max current Rmax(Ω)	Max power dissipation Pmax(W)	Thermal time constant (mW/C)	Thermal time constant (s)	Max impulse capacitance (uF)240VAC
MF73-0.2/65	0.2	2600	65	0.006	30	≥70	≤480	11500
MF73-0.5/50	0.5	2600	50	0.007				8000
MF73-2/40	2	2600	40	0.012				8000
MF73-5/30	5	3000	30	0.025				6800
MF73-10/24	10	3200	24	0.032				4700

Body diameter Φ50mm

P/N	R25±20%(Ω)	Thermal sensitive index B±10%(K)	Max steady state current Imax(A)	Approx R of Max current Rmax(Ω)	Max power dissipation Pmax(W)	Thermal time constant (mW/C)	Thermal time constant (s)	Max impulse capacitance (uF)240VAC
MF73-0.2/80	0.2	2600	80	0.004	36	≥90	≤650	15000
MF73-0.5/60	0.5	2600	60	0.006				11500
MF73-1/56	1	2600	56	0.008				11500
MF73-3/40	3	2800	40	0.015				11500
MF73-5/35	5	3000	35	0.022				8000
MF73-6.8/32	6.8	3000	32	0.025				8000
MF73-10/27	10	3200	27	0.03				6800

High Reliability 20D9 NTC Thermal Resistor Strong Ability To Suppress Surge Current 0

Product Process
